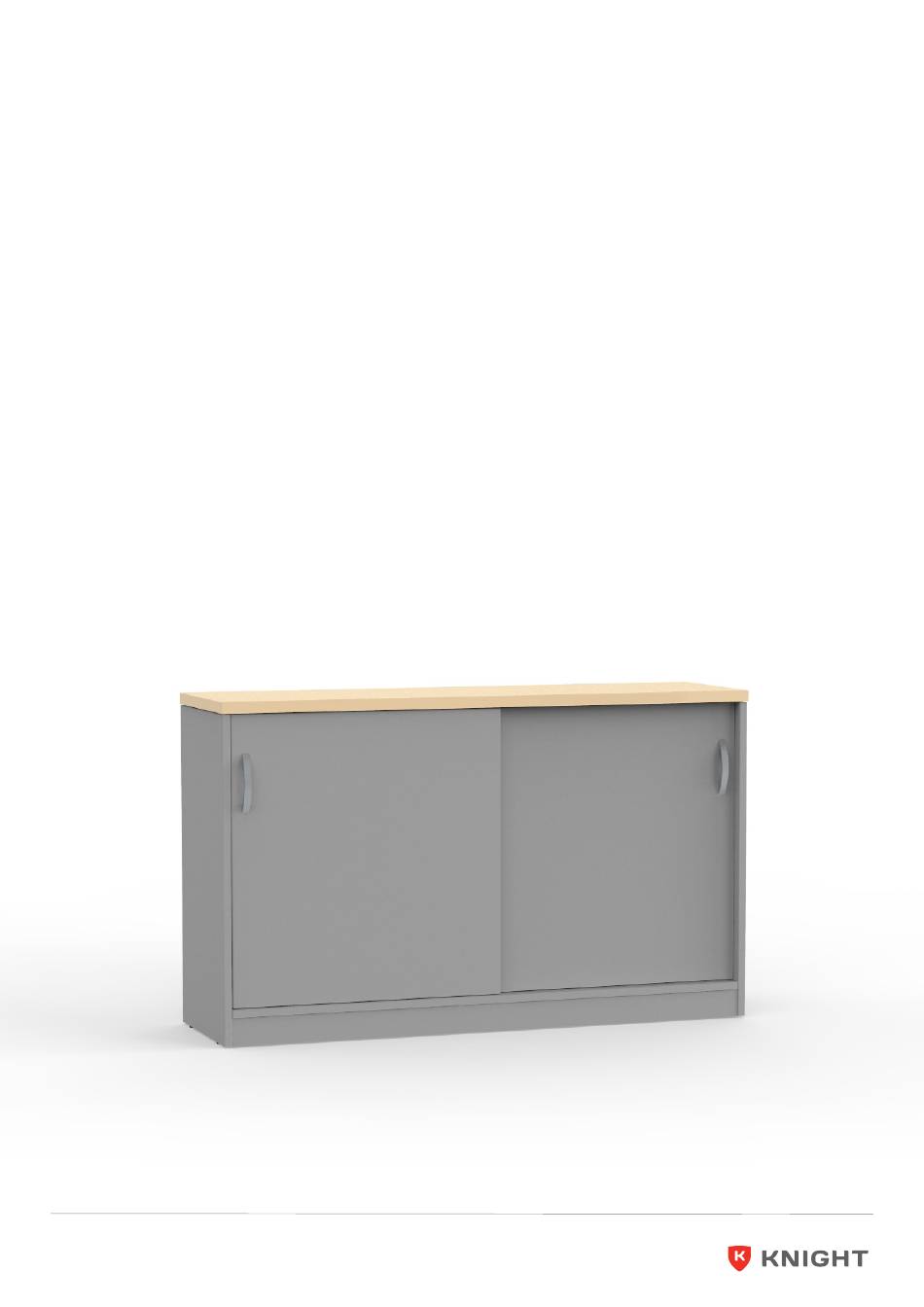

- Page 1 Eko Credenza Assembly Instructions Tools Required: Powered Screwdriver knightgroup.co.nz...
- Page 2 Eko Credenza Page 1 Assembly Instructions • To prevent possible scratches or damage, assemble the product on a soft surface such as a blanket, carpet or packaging. Recommended 2-person Step knightgroup.co.nz...
- Page 3 Eko Credenza Page 2 Assembly Instructions Item Description Item Description Top Panel 6*35 Cam Bolt Left Side Panel 8*30 Dowel Pin Right Side Panel 5/8” Cam Cover Back Panel Threaded Dowel Pin Bottom Panel 4*22 Fix Bolt Moveable Shelf Handle...
- Page 4 Eko Credenza Page 3 Page 3 Assembly Instructions Assembly Instructions Step 1 Preparation for top panel A, bottom panel G, left side panel X, right side panel Z, batten O, door panel V1 and V2. Insert cams bolts (c1) and dowel pins d1 into panels A, G, X and Z as illustrated above.
- Page 5 Eko Credenza Page 4 Page 4 Assembly Instructions Assembly Instructions Step 2 Insert cam bolts (c1) on panel G into cams on panels O and tighten in a clockwise direction. Step 3 Insert cam bolts (c1) on panel X and Z into cams on panels G, O and tighten in a clockwise direction.
- Page 6 Eko Credenza Page 5 Page 5 Assembly Instructions Assembly Instructions Step 4 Insert cam bolts (c1) on panel A into cams on panel X, Z, G and O, then tighten in a clockwise direction. Place the cam covers (c2) on the top of cams.
- Page 7 Eko Credenza Page 6 Page 6 Assembly Instructions Assembly Instructions Step 5 Connect back panel D and panel X, Z, G, A with screws (s1) as illustrated. knightgroup.co.nz...
- Page 8 Eko Credenza Page 7 Page 7 Assembly Instructions Assembly Instructions Step 6 Insert threaded dowel pins (p1) into panels X and Z. Place panel E on the top of threaded dowel pins (p1) as illustrated. Step 7 Credenza door V1 and V2 assembly.
- Page 9 Eko Credenza Page 8 Page 8 Assembly Instructions Assembly Instructions Complete knightgroup.co.nz...
