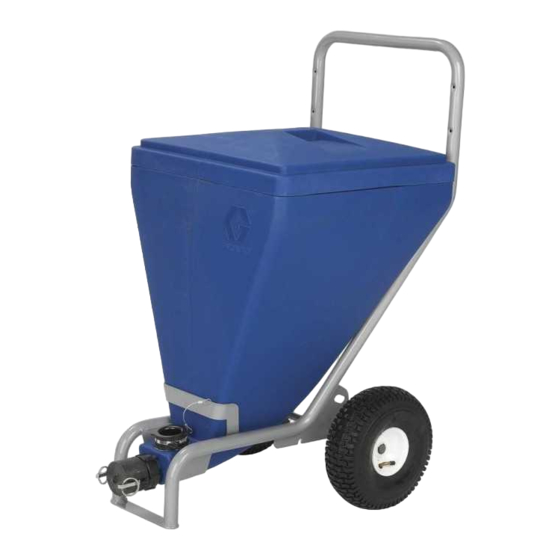

Graco VIBRA-FLO 17P002 Operation, Parts

Texture hopper
Hide thumbs

Advertisement

Quick Links

Download this manual
Operation, Parts
VIBRA-FLO
Hopper
For professional use only.
Not approved for use in explosive atmosphere or hazardous locations.
Models: 17P002, 17P196
Important Safety Instructions
Read all warnings and instructions in this manual and related manuals.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
www.graco.com/techsupport
™
Texture
3A4696B
ti30745a
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the VIBRA-FLO 17P002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Graco VIBRA-FLO 17P002

Summary of Contents for Graco VIBRA-FLO 17P002

  • Page 1 Not approved for use in explosive atmosphere or hazardous locations. Models: 17P002, 17P196 Important Safety Instructions Read all warnings and instructions in this manual and related manuals. Be familiar with the controls and the proper usage of the equipment. Save these instructions. ti30745a www.graco.com/techsupport...
  • Page 2 Warnings Warnings The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-specific risks. When these symbols appear in the body of this manual or on warning labels, refer back to these Warnings.

  • Page 3: Electric Shock Hazard

    Do not kink or over-bend the material or air hose. • Do not expose the hose to temperatures or to pressures in excess of those specified by Graco. • Do not use the hose as a strength member to pull or lift the equipment.
  • Page 4 VIBRA-FLO Shaker Adjustment VIBRA-FLO Shaker Adjustment The VIBRA-FLO shaker is shipped preset for the best performance. The speed is adjusted by adjusting the VIBRA-FLO knob on the control. Turn VIBRA-FLO shaker ON/OFF switch to the ON position. ti30152a ti30652a ti30206a Turn VIBRA-FLO knob to maximum.
  • Page 5 Notes Notes 3A4696B...
  • Page 6 VIBRA-FLO Texture Hopper Parts VIBRA-FLO Texture Hopper Parts ti30209a Ref. Torque Ref. Torque 30-40 in-lb (3.4 - 4.5 N•m) 45-50 in-lb (5.1 - 5.7 N•m) 170-190 in-lb (19.2 - 21.5 N•m) 3A4696B...
  • Page 7 VIBRA-FLO Texture Hopper Parts VIBRA-FLO Texture Hopper Parts List Ref. Part Description Qty. Ref. Part Description Qty. 116038 WASHER, wave 288062 FRAME, hopper, spring painted 15E891 CLIP, retaining 17R349 ASSEMBLY, hopper 119420 WHEEL, pneumatic includes 6 253132 KIT, repair, tube 113956 BOLT, carriage 112958 NUT, hex, flanged 17N821 BOLT, carriage...
  • Page 8 VIBRA-FLO Shaker Parts VIBRA-FLO Shaker Parts to Shaker Control to Shaker Control to Power Cord ti30208a Ref. Torque Ref. Torque 170-190 in-lb (19.2 - 21.5 N•m) 80-100 in-lb (9.0 - 11.2 N•m) Ref. Part Description Qty. Ref. Part Description Qty. 110755 WASHER, flat 17N610 PLATE, shaker 17P261 CLAMP, loop,...
  • Page 9 VIBRA-FLO Control Parts VIBRA-FLO Control Parts To Power Cord ref 35 ref 34 to Shaker Coil ti30746a Ref. Torque Ref. Torque 10-15 in-lb (1.1 - 1.7 N•m) Hand tighten 22-28 in-lb (2.5 - 3.2 N•m) 30-35 in-lb (3.4 - 3.9 N•m) Ref.
  • Page 10 Wiring Diagram Wiring Diagram SHAKER CONTROL WIRING DIAGRAM TOGGLE CONTROL POTENTIOMETER JUMPER JUNCTION BOX BOARD WIRE SUB-ASSEMBLY SWITCH JUMPER WIRE LINE IN LOAD FROM FROM POWER SHAKER CORD COIL STRAIN ENCLOSURE (2X) GROUND SCREWS RELIEF (1X) ti30747a 3A4696B...

  • Page 11: Technical Specifications

    Technical Specifications Technical Specifications 17P002, 17P196 Metric Hopper 230V, Ø, A, Hz 1Ø, 5, 50/60 Environmental temperature range 40°–120°F 4°–49°C Minimum fluid temperature 40°F 4°C Dimensions Height 42 in. 106.7 cm Length 31.5 in. 80.0 cm Width 22.5 in. 57.2 cm Weight 54 lb 24.5 kg...

  • Page 12: Graco Information

    For the latest information about Graco products, visit www.graco.com. For patent information, see www.graco.com/patents. TO PLACE AN ORDER, contact your Graco distributor or call 1-888-541-9788 to identify the nearest distributor. All written and visual data contained in this document reflects the latest product information available at the time of publication.

This manual is also suitable for:

Vibra-flo 17p196
