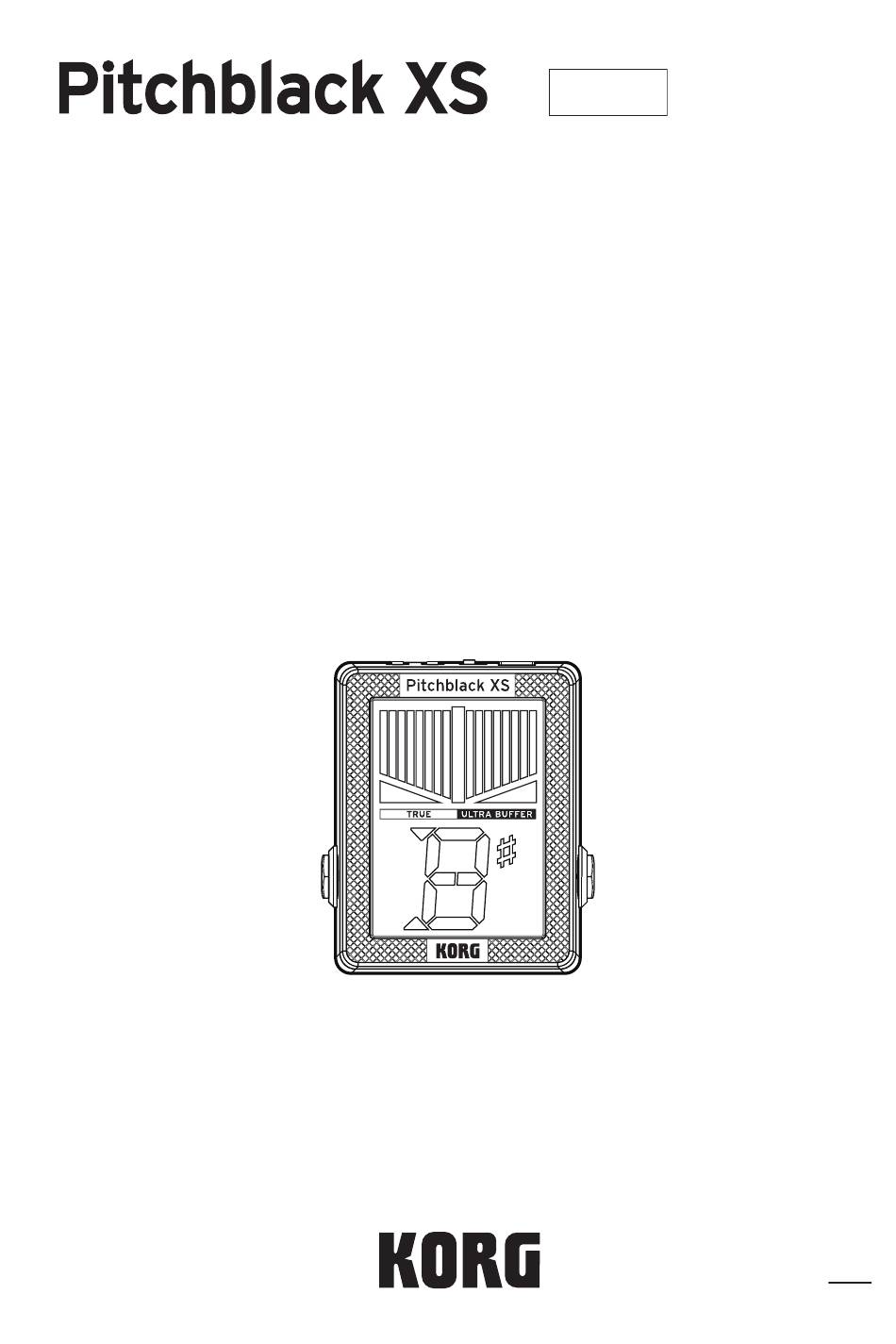

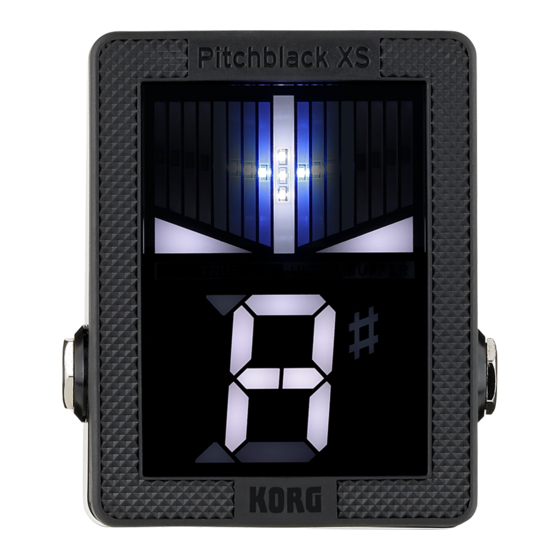

- Page 1 PB-XS CHROMATIC PEDAL TUNER Owner's Manual...
- Page 2 Table of contents Parts of the Pitchblack XS ...........3 Connections ................3 Tuning procedure ..............4 Reference pitch settings ............5 Display mode settings ............6 BRIGHT mode (brightness) settings .........7 Specifications ................8...
- Page 3 Connect a separately sold AC adapter (9 V, ) here. Using an AC adapter other than what Korg recommends may cause a malfunction or damage. INPUT jack Connect a cable from your instrument to the INPUT jack of the tuner. The power turns on when you connect a cable to the INPUT jack, and the reference pitch setting blinks in the note name display for several seconds.
- Page 4 BUFFERED/TRUE BYPASS switch This switches between ultra-buffer bypass and true bypass. The ultra-buffer circuit expands the dynamic range of the sound, which helps prevent the sound from thinning out when you use longer cables or multiple pedals. True bypass outputs the input audio as-is, without changing the sound in any way. Tuning procedure 1.
- Page 5 Reference pitch settings Set the reference pitch for tuning (the A note in the middle of the piano keyboard= A4) within the 436–445 Hz range. The Pitchblack XS comes from the factory with the reference pitch set to A=440 Hz.
- Page 6 Display mode settings Select one of four display patterns that shows whether your instrument is out of tune. The factory setting is Regular mode. 1. Press the DISPLAY/BRIGHT button. The current setting will blink for several seconds in the note name display. 2.
- Page 7 1. Hold down the DISPLAY/BRIGHT button. The brightness of the display will change. The Pitchblack XS will automatically return to tuner mode. Tip: The bright mode settings will be preserved even if you remove the AC...
- Page 8 Accessories (sold separately): AC adapter (9 V, , 600 mA) * Specifications and appearance are subject to change without notice for improvement. * All product names and company names are the trademarks or registered trademarks of their respective owners. © 2022 KORG INC. www.korg.com Published 09/2022...
