PB-X-MINI
CHROMATIC PEDAL TUNER
Owner's Manual
E 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pitchback X mini and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Korg Pitchback X mini

Summary of Contents for Korg Pitchback X mini

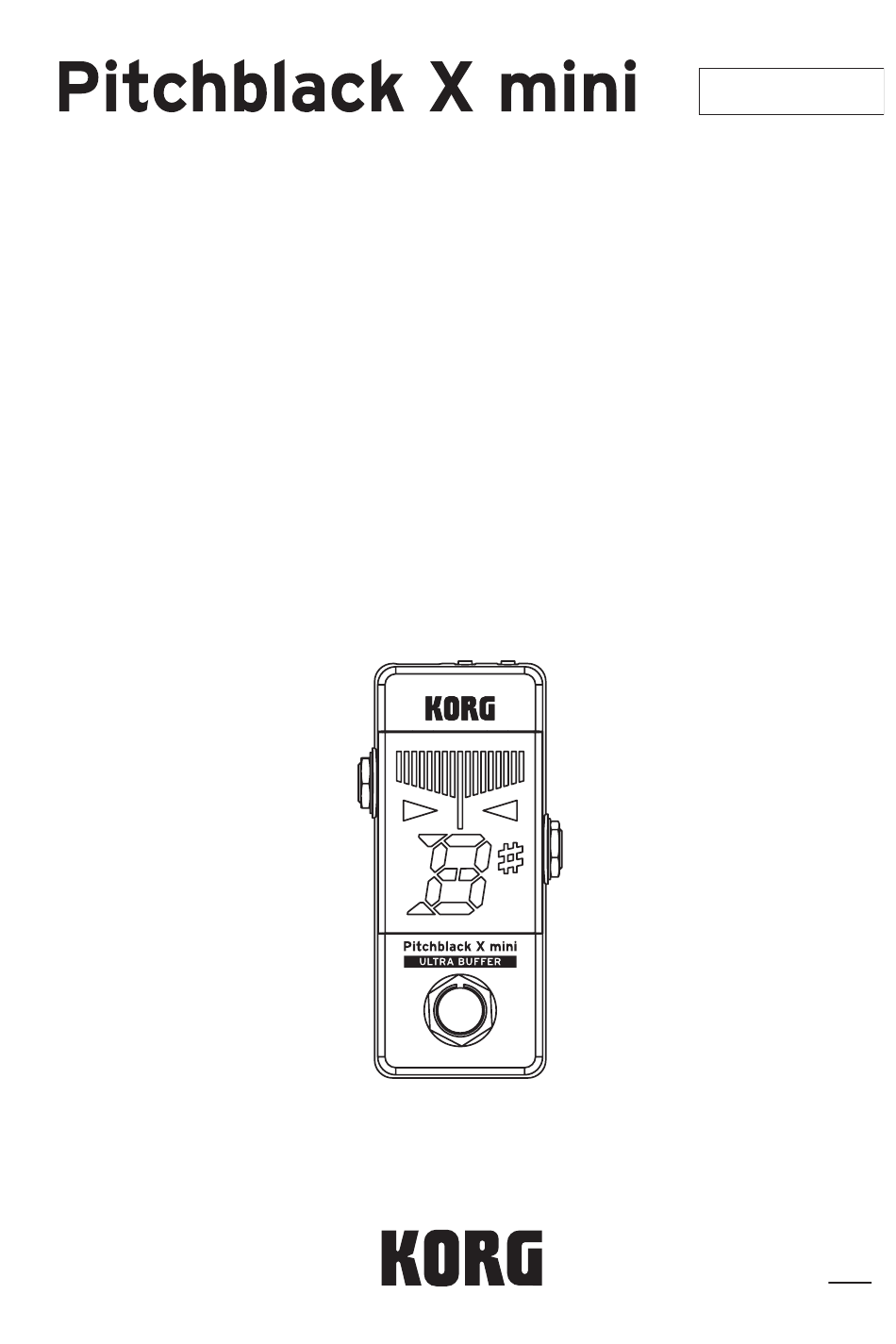

  • Page 1 PB-X-MINI CHROMATIC PEDAL TUNER Owner's Manual...
  • Page 2 Table of contents Parts of the Pitchblack X mini ..........3 Connections ................3 Tuning procedure ..............4 Reference pitch settings ............5 Display mode settings ............6 Bright mode (brightness) settings ........7 Specifications ................8...
  • Page 3 Connect a separately sold AC adapter (9 V, ) here. Using an AC adapter other than what Korg recommends may cause a malfunction or damage. INPUT jack Connect a cable from your instrument to the INPUT jack of the tuner. The power turns on when you connect a cable to the INPUT jack, and the reference pitch setting blinks in the note name display for several seconds.
  • Page 4 Tuning procedure 1. Press the TUNER ON/OFF switch to activate the tuner. The center of the LED meter will light. The signal from the INPUT jack will not be output from the BYPASS jack. Tip: The TUNER ON/OFF switch only functions if an instrument is connected to the INPUT jack.
  • Page 5 Reference pitch settings Set the reference pitch for tuning (the A note in the middle of the piano keyboard= A4) within the 436–445 Hz range. The Pitchblack X mini comes from the factory with the reference pitch set to A=440 Hz. 1.
  • Page 6 Display mode settings Set one of the four display patterns that shows whether your instrument is out of tune. The factory setting is Regular mode. 1. Press the DISPLAY/BRIGHT button. The current setting will blink for several seconds in the note name display. 2.
  • Page 7 4: Mirror Tune your instrument until the LED at the center of the LED meter lights up brightly. The larger the pitch variation, the more that the LEDs towards either side light In tune. The pitch The pitch is sharp. is at.
  • Page 8 Accessories (sold separately): AC adapter (9 V, , 600 mA) * Specifications and appearance are subject to change without notice for improvement. * All product names and company names are the trademarks or registered trademarks of their respective owners. © 2022 KORG INC. www.korg.com Published 09/2022...
