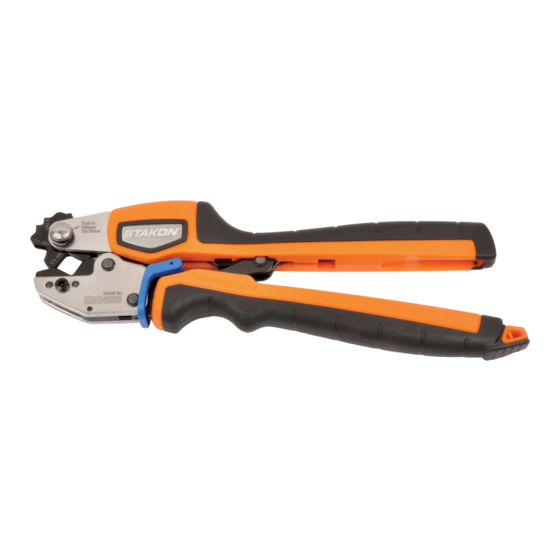

ERG4008 COMFORT CRIMP
COMPRESSION TOOL WITH SHURE STAKE
For Installing Sta-Kon
IMPORTANT:
information in this manual before operating or servicing this tool.
WARNING
KEEP ALL BODY PARTS AWAY FROM DIE NEST
DURING GAGING OR CRIMPING PROCEDURE.
In the event the SHURE STAKE
1.0
1.1
1.
Open handles fully.
2. Depress wheel release button and rotate
wheel to proper die nest. Allow wheel to
lock into position by releasing button.
3. Insert terminal into the nest as shown in
Figure 2.
4. Close the handles slightly to secure the
terminal. Do not deform the terminal.
5. Insert stripped wire.
6. Close handles until the SHURE STAKE
mechanism cycle has been completed.
7. Perform two equally spaced crimps on the
terminal barrel.
TA04533 B Page 1 of 2
TM
#8-1/0 AWG, Tubular Style Only
Read and understand all of the instructions and safety
Push to
Release
Die Wheel
Model No.
mechanism must be released, please see Figure 5.
®

INSTRUCTIONS FOR USE

For Use With Sta-Kon
Non-Insulated Terminals
®
WARNING
HANDLES ARE NON-INSULATING.
DO NOT CRIMP ON HOT ENERGIZED WIRES.
Non-Insulated Terminals
®
®
®
MECHANISM
®
Figure 1
Figure 2
