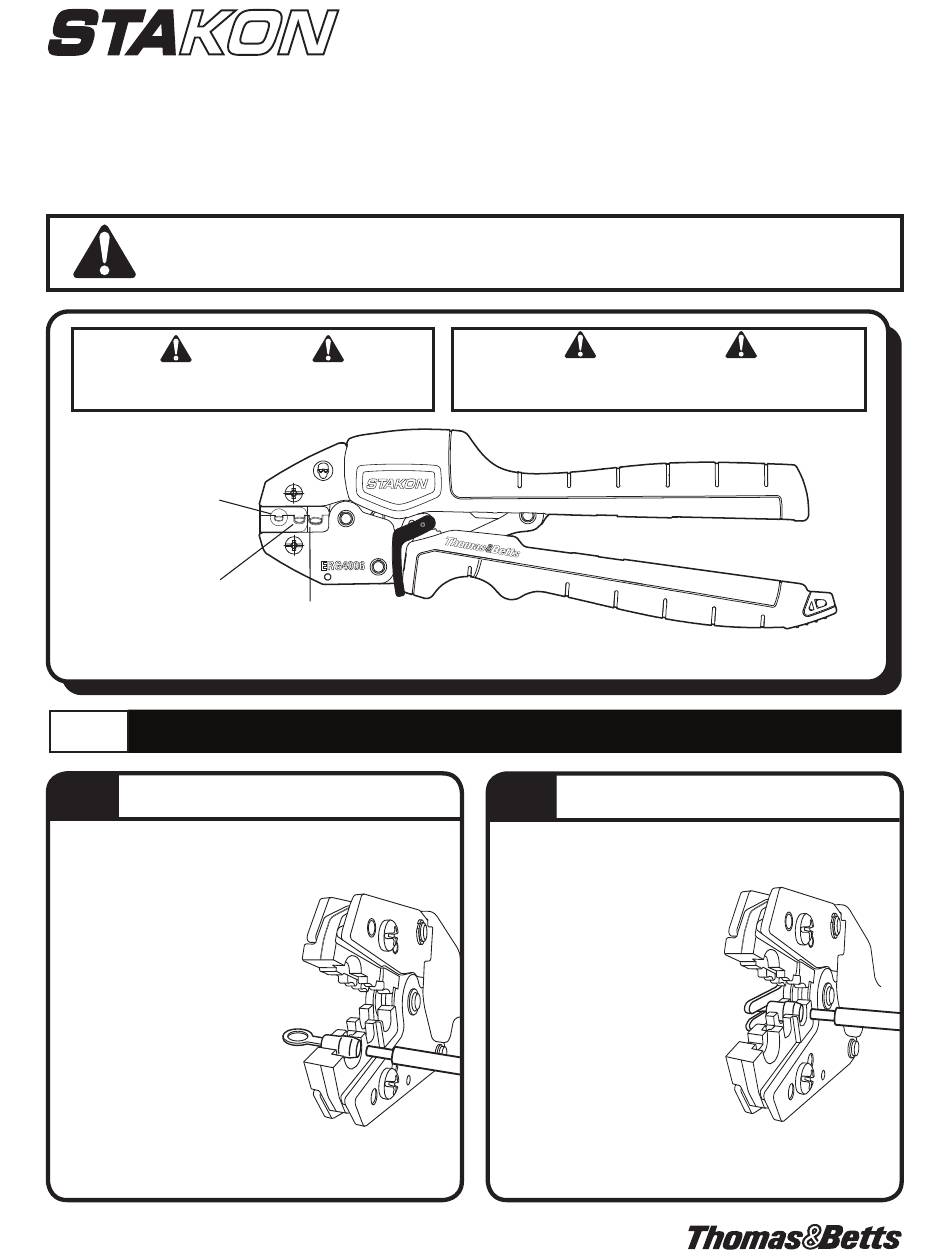

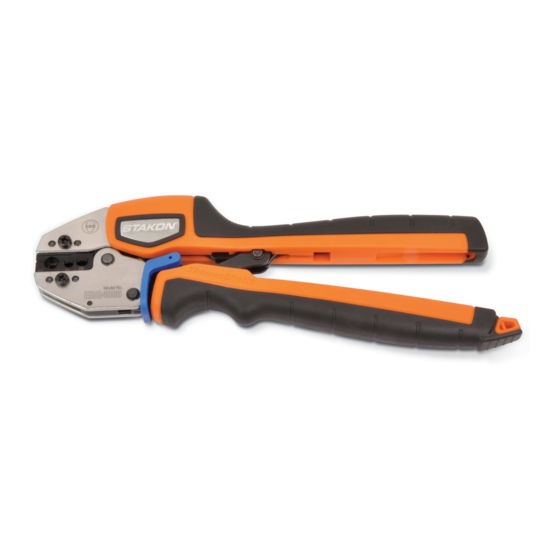

Thomas & Betts STAKON COMFORT CRIMP ERG4006 Instructions For Use

ERG4006 COMFORT CRIMP
COMPRESSION TOOL WITH SHURE STAKE
For installing RZ Terminals, Splices (26-22 AWG Wire)
and RA, RB (.110) Disconnects (22-14 AWG Wire)
IMPORTANT:
information in this manual before operating or servicing this tool.
WARNING
KEEP ALL BODY PARTS AWAY FROM DIE NEST
DURING GAGING OR CRIMPING PROCEDURE.
RZ (22-26) NEST
RA (22-18) NEST
In the event the SHURE STAKE
1.0
1.1
For use with RZ Insulated Terminals
and Splices 26-22 AWG
1. Open handles fully.
2. Insert terminal into proper
nest. Tongue markings
should face up.
3. Close the handles slightly
to secure the terminal.
Do not deform the
terminal.
4. Insert stripped wire.
5. Close handles until SHURE
STAKE mechanism cycle
®
has been completed.
TA04531 B Page 1 of 2
TM
Read and understand all of the instructions and safety
RZ RA RB
Model No.
RB (16-14) NEST
mechanism must be released, please see Figure 5.
®
INSTRUCTIONS FOR USE
Figure 2
®
WARNING
HANDLES ARE NON-INSULATING.
DO NOT CRIMP ON HOT ENERGIZED WIRES.
1.2
For use with RA and RB (.110)
Insulated Disconnects 22-14 AWG
1. Open handles fully.
2. Rotate the locator down.
Insert terminal into locator.
3. Position terminal in proper
nest with terminal barrel
seam facing indentor
4. Close handles slightly to
secure terminal. Do not
deform terminal.
5. Insert stripped wire.
6.
Close handles until
the SHURE STAKE
mechanism cycle has
been completed.
®
MECHANISM
Figure 1
®
Figure 3
