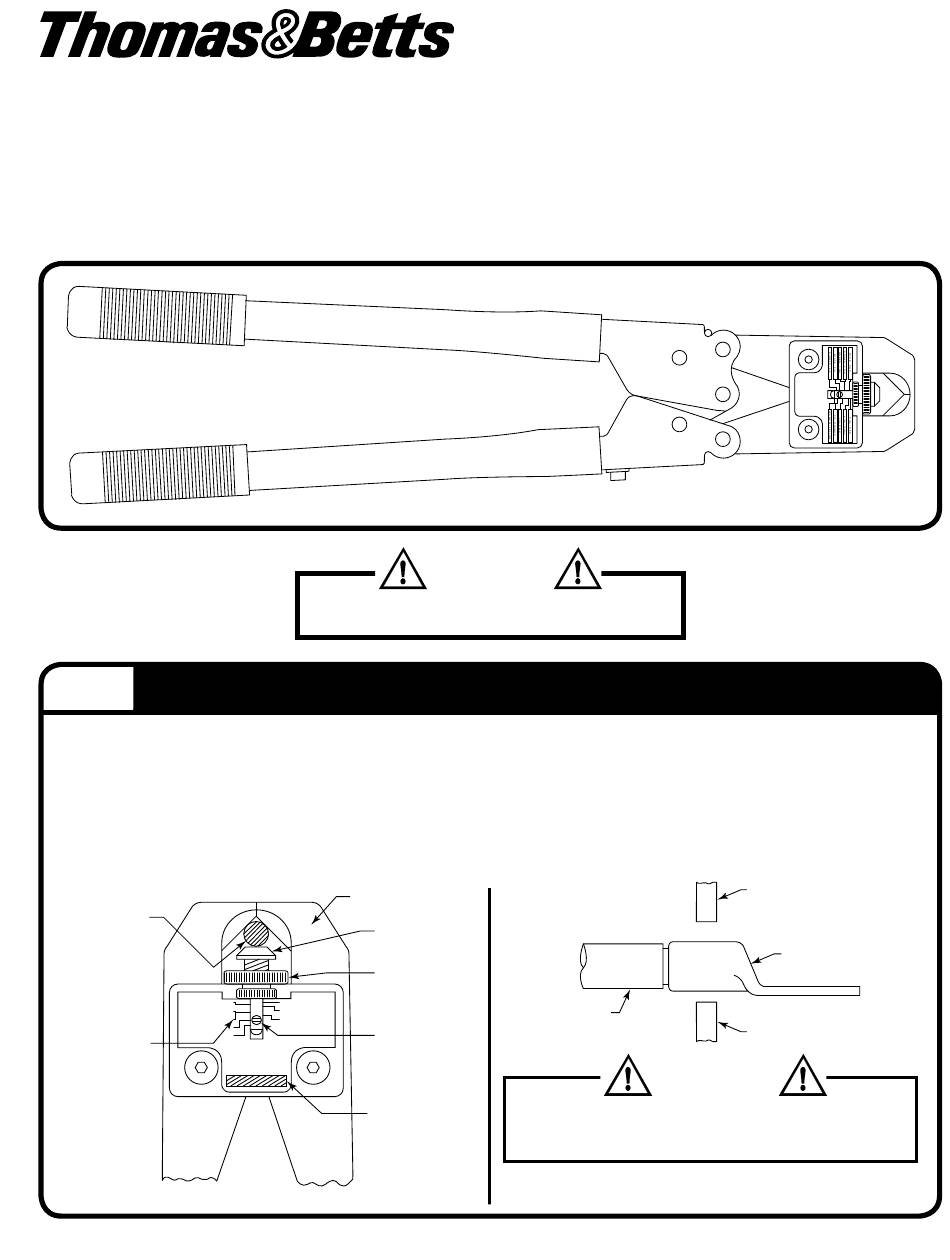

INSTALLATION AND GAUGING PROCEDURE
For 8 GA to 250 MCM Uninsulated STA-KON
01
1. Strip cable without cutting or nicking the strands.
2. Select the side of the tool according to the type of
connector and cable combination to be installed.
3. Move indenter by turning the adjusting wheel until
the pointer slot aligns with the selected cable size
line. The wheel should be in a positive detented
position (See figure 1).
Connector
Cable Size
Line
Figure 1
ADJUSTABLE CRIMPER
Catalog Number WT3185
WARNING
HANDLES ARE NON-INSULATING.
DO NOT CRIMP ON ENERGIZED WIRES.
INSTALLING PROCEDURE
Nest
Indenter
Adjusting
Wheel
Pointer Slot
Type of Cable
®
4. Insert cable into connector barrel until it bottoms.
5. Locate connector in the tool between the die nest
and indenter (See Figure 2).
6. Crimp connector by closing the handles. Apply
as many crimps as required. Refer to instructions
packed with connectors for required number of
crimps.
Cable
WARNING
WT3185 is equipped with th SHURE-STAKE
Compelling Mechanism. Keep fingers and other body
parts clear of die nest during operation of this tool.
Figure 2
Terminals
Die Nest
Connector
Die Indentor
Full Stroke
®
TA01390 C page 1 of 2
