Thomas & Betts Stakon Comfort Crimp ERG4255 Instructions For Use

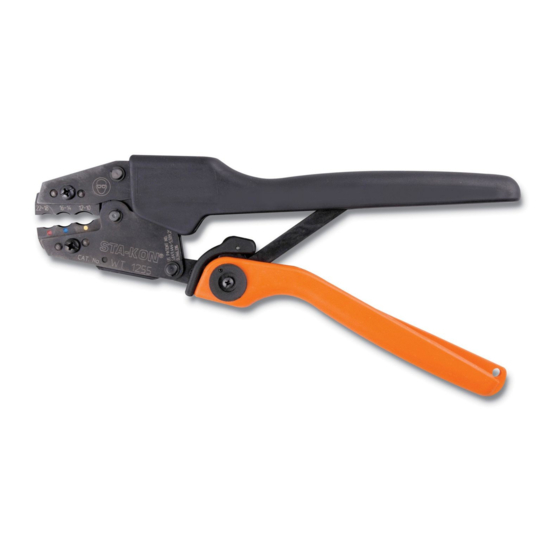

ERG4255 COMFORT CRIMP
COMPRESSION TOOL WITH SHURE STAKE
For Installing Heat Shrinkable Nylon Insulated
Terminals, Splices, and Disconnects 22-10 AWG
IMPORTANT:
information in this manual before operating or servicing this tool.
WARNING
KEEP ALL BODY PARTS AWAY FROM DIE NEST
DURING GAGING OR CRIMPING PROCEDURE.
RED (22-18) NEST
BLUE (16-14) NEST
In the event the SHURE STAKE
1.0
1.1
For Use With Insulated Terminals
and Disconnects 22-10 AWG
1. Open handles fully.
2. Insert terminal into proper
nest. Tongue markings
should face up.
3. Close the handles slightly
to secure the terminal.
Do not deform the
terminal.
4. Insert stripped wire.
5. Close handles until SHURE
STAKE mechanism cycle
®
has been completed.
6. Heat insulator with a
recommended heat
source until insulator
recovers and adhesive
melts and flows.
TA04535 B Page 1 of 2
TM
Read and understand all of the instructions and safety
22-18 16-14 12-10
Model No.
YELLOW (12-10) NEST
mechanism must be released, please see Figure 5.
®
INSTRUCTIONS FOR USE
JAW
JAW
Figure 2
®
WARNING
HANDLES ARE NON-INSULATING.
DO NOT CRIMP ON HOT ENERGIZED WIRES.
1.2
For Use With Insulated
Splices 22-10 AWG
1. Open handles fully.
2. Insert splices into proper nest.
3. Close handles slightly to
secure terminal. Do not
deform terminal.
4. Insert stripped wire.
5.
Close handles until
the SHURE STAKE
mechanism cycle has been
completed.
6. Repeat steps 1-5 for opposite
side of splice.
7. Heat insulator with a
recommended heat source
until insulator recovers and
adhesive melts and flows.
®
MECHANISM
Figure 1
®
JAW
JAW
Figure 3
