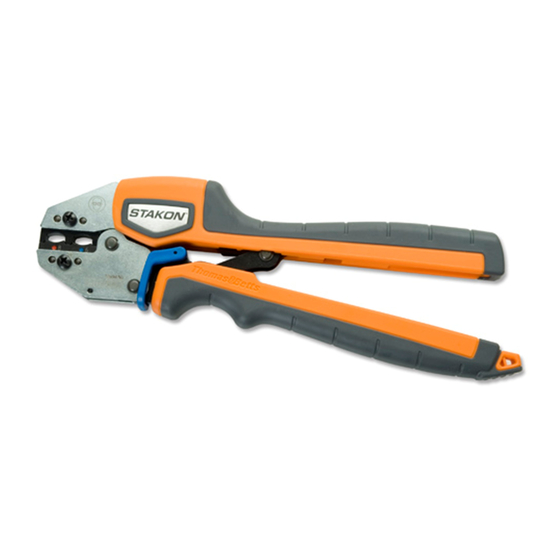

Thomas & Betts STAKON COMFORT CRIMP ERG4002 Instructions For Use

ERG4002 COMFORT CRIMP
COMPRESSION TOOL WITH SHURE STAKE
IMPORTANT:
information in this manual before operating or servicing this tool.
WARNING
KEEP ALL BODY PARTS AWAY FROM DIE NEST
DURING GAGING OR CRIMPING PROCEDURE.
(22-18) A NEST
(16-14) B NEST
(12-10) C NEST
In the event the SHURE STAKE
1.0
1.1
For Use With Non-Insulated Terminals
and Disconnects 22-10 AWG
1. Open handles fully.
2. Insert terminal into proper
nest as shown in Figure 2.
Barrel seam should face
indenter.
3. Close handles slightly to
secure terminal. Do not
deform terminal.
4. Insert stripped wire.
5. Close handles until
SHURE STAKE
®
mechanism cycle has
been completed.
TA04538 B Page 1 of 2
TM
For Installing Non-Insulated Terminals,
Disconnects, and Splices 22-10 AWG
Read and understand all of the instructions and safety
22-18 16-14 12-10
A B C
Model No.
mechanism must be released, please see Figure 5.
®

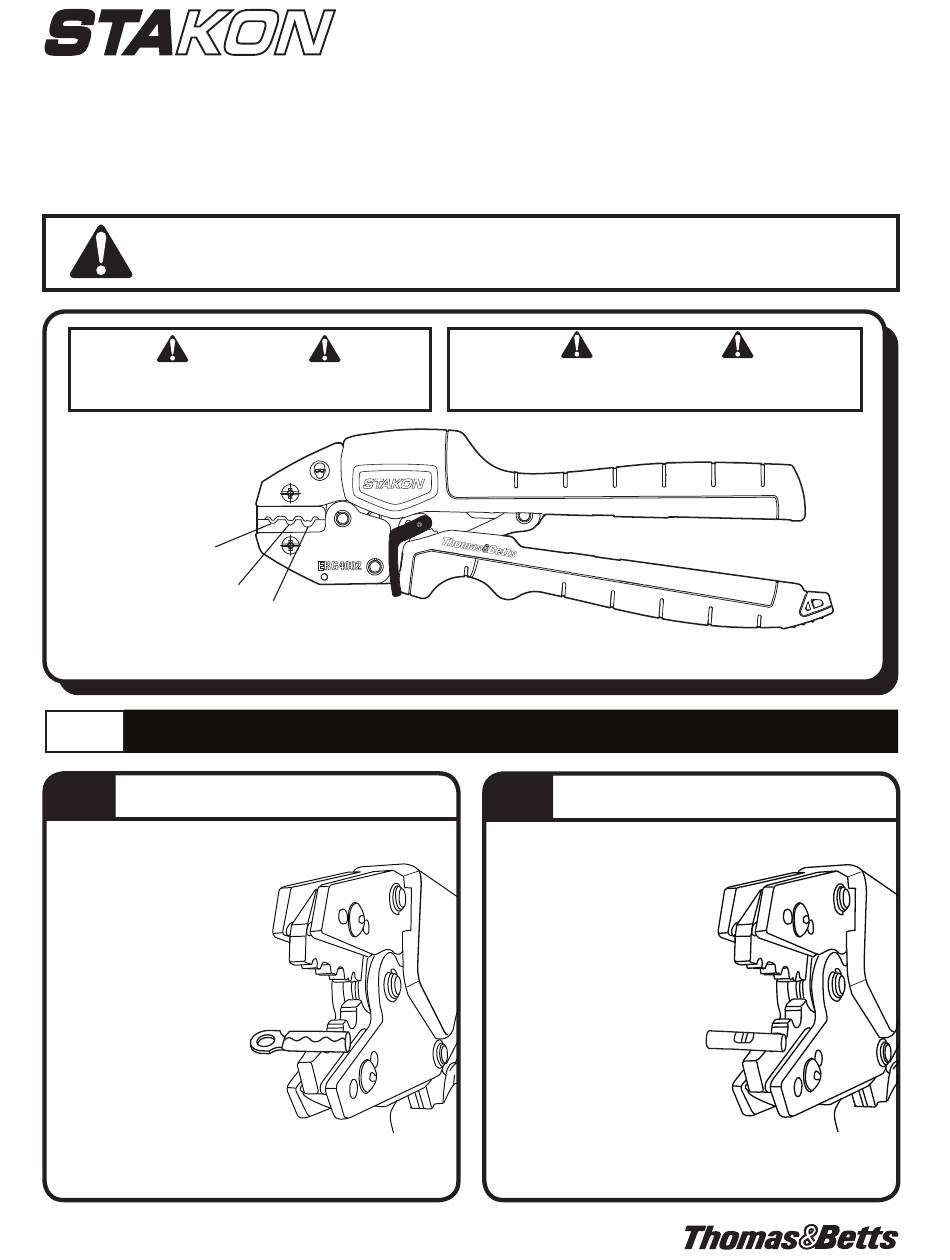

INSTRUCTIONS FOR USE
Figure 2
®
WARNING
HANDLES ARE NON-INSULATING.
DO NOT CRIMP ON HOT ENERGIZED WIRES.
1.2
For Use With Non-Insulated Splices
1. Open handles fully.
2. Splices require two crimps.
Position the splice in the
proper nest as shown in
Figure 3, with window
facing indenter.
3. Close handles slightly to
secure terminal. Do not
deform terminal.
4. Insert stripped wire
5.
Close handles until
the SHURE STAKE
mechanism cycle has
been completed.
6.
Repeat steps 2-4 on
opposite end of splice.
®
MECHANISM
Figure 1
22-10 AWG
®
Figure 3
