1
Start Here
Quickstart Guide AyrMesh
Check Contents of the box:
1. Hub2x2
2. Antennae (2)
3. Power Supply
4. Power Cord
5. (2) Ethernet Cables
6. (2) Zip Ties (not shown)
1
3
4
2
5
Turn over for shorter instructions

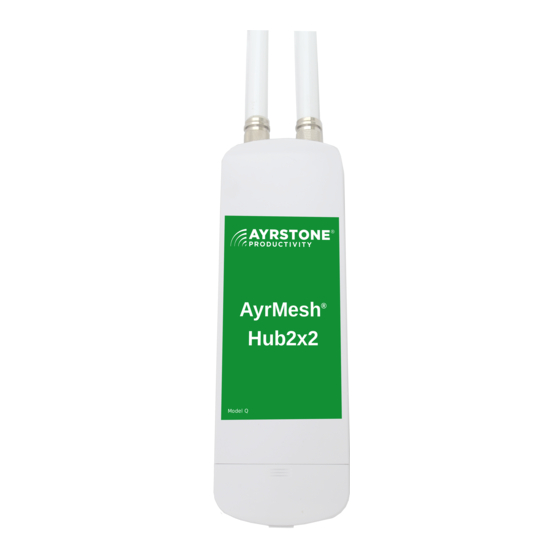

Hub2x2
®
Remove the door, write down the MAC address
ofyour Hub, write it here, and keep it with these
directions in a safe place:
00:C0:
MAC Address
Ifyou don't have an account on AyrMesh.com,
create one now using a device connected to your
network (not a cellphone unless it's connected to
your router via WiFi):
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AYRSTONE AyrMesh Hub2x2
Summary of Contents for AYRSTONE AyrMesh Hub2x2
- Page 1 Turn over for shorter instructions Start Here Quickstart Guide AyrMesh Hub2x2 ® Remove the door, write down the MAC address Check Contents of the box: ofyour Hub, write it here, and keep it with these directions in a safe place: 00:C0: 1.
- Page 2 Assemble the Hub and connect to router Plug an Ethernet cable into the left-hand port Screw the antennae (marked "LAN PoE IN") on the Hub - slide in gently onto the until it clicks in place: threads on the Hub - finger-tight (no tools): DO NOT FORCE...
- Page 3 Make Sure Hub is Working It usually takes about 1-2 minutes for the Hub to The signal lights (3 top lights) will start out check in and show up on AyrMesh.com, but "running" from bottom to top (or left to right if sometimes it takes a bit longer.
- Page 4 Signal lights on the Hub Gateway Hubs have the Power light on steady, the WiFi activity light flashing, and the Top Top Signal light - green Signal light on steady. Second Signal light - orange First Signal light - red Remote Hubs have the Power light on steady, PoE OUT - unused the WiFi activity light flashing, and the signal...
- Page 5 DHCP reservations instead to avoid IP address conflicts. - Check for network loops - commonly caused by devices with multiple ways to connect to the network (e.g. printers or cameras with both Ethernet and WiFi) See http://support.ayrstone.com for additional information, hints, and troubleshooting tips.
- Page 6 ULTRA QUICKSTART GUIDE These minimized directions are intended for more knowledgeable or experienced installers, or just for the impatient. Turn this booklet over for more in-depth instructions, and see https://support.ayrstone.com for additional information. GET READY: Write down the MAC address ofthe Hub in the box below and put it someplace safe.
