Clarion VMA7483 Owner's Manual

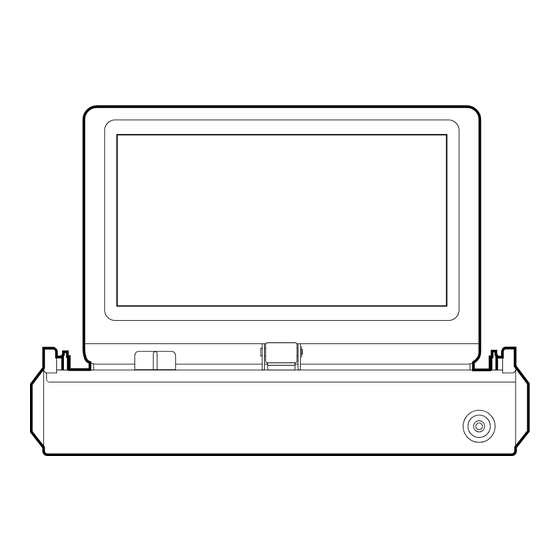

5.8" tft motorized lcd monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

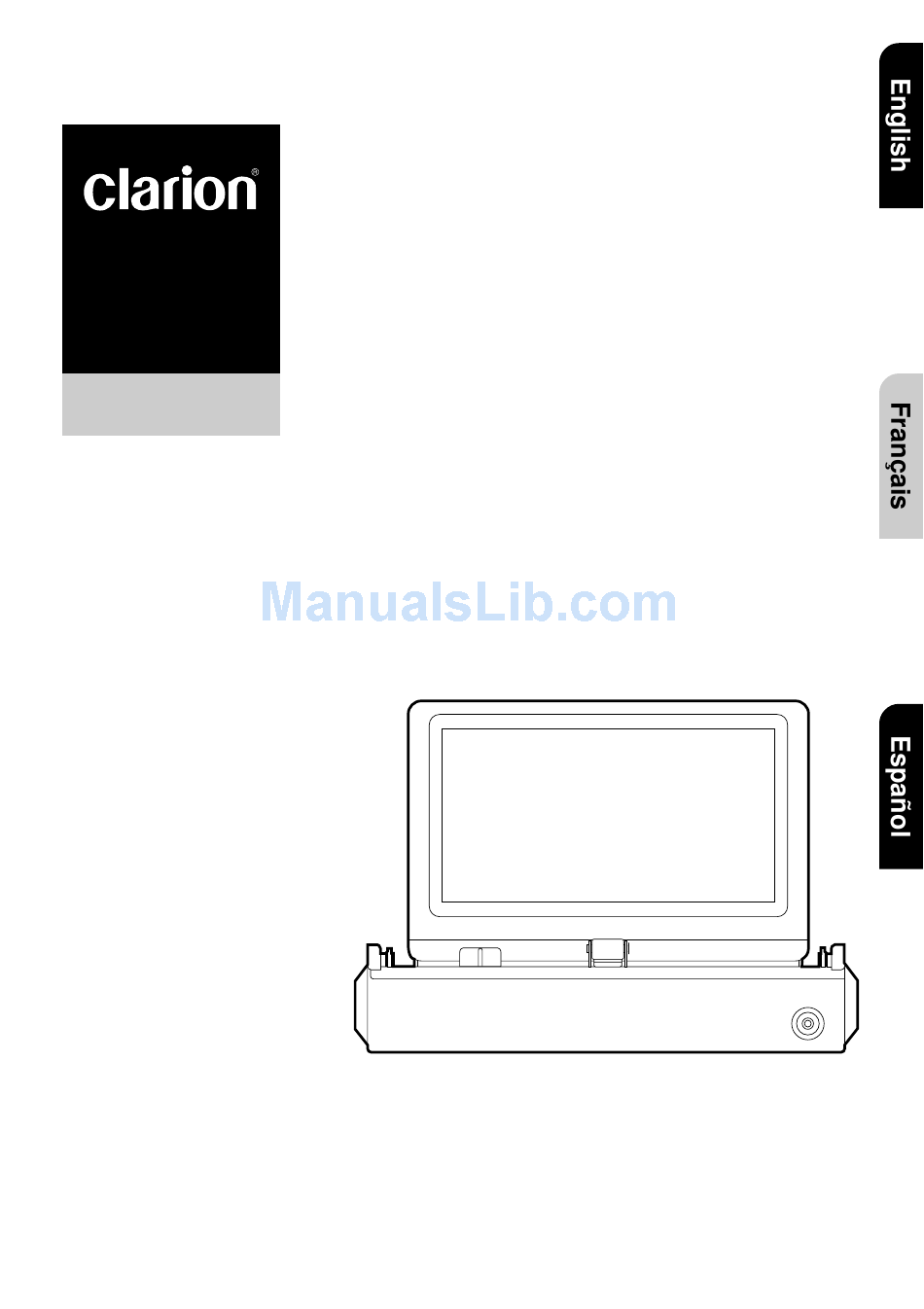

5.8" TFT MOTORIZED LCD MONITOR
Moniteur LCD assisté TFT de 5,8"
MONITOR DE CRISTAL LÍQUIDO TFT MOTORIZADO DE 5,8"
VMA7483
Owner's manual
Mode d'emploi
Manual de instrucciones
Thank you for purchasing the Clarion VMA7483.
Nous vous remercions d'avoir acheté le Clarion VMA7483.
Muchas gracias por la adquisición del VMA7483 Clarion.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VMA7483 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarion VMA7483

Summary of Contents for Clarion VMA7483

  • Page 1 Moniteur LCD assisté TFT de 5,8" MONITOR DE CRISTAL LÍQUIDO TFT MOTORIZADO DE 5,8" VMA7483 Owner's manual Mode d’emploi Manual de instrucciones Thank you for purchasing the Clarion VMA7483. Nous vous remercions d’avoir acheté le Clarion VMA7483. Muchas gracias por la adquisición del VMA7483 Clarion.

  • Page 2: Table Of Contents

    7. SPÉCIFICATIONS ... 34 Appareil principal ... 34 Télécommande (télécommande sans fil à infrarouge à 14 touches) ... 34 VMA7483 Español * Antes de utilizar el equipo, lea completamente este Manual de instrucciones. * Después de haber leído este manual, guárdelo a mano (p.

  • Page 3: Precautions

    1. This set is for use in DC 12V, negative ground vehicles. Be sure to consult your store of pur- chase or a Clarion-designated service outlet before installing it on DC 24V cars. 2. Do not operate the set in ways other than described in this guide.
  • Page 4 INSTRUCTIONS. FAILURE TO DO SO MAY CAUSE DAMAGE TO THE VEHICLE OR THE MONI- TOR, MAY RESULT IN AN ACCIDENT, AND MAY VIOLATE THE LAW. CLARION DISCLAIMS ANY LIABILITY FOR ANY DAMAGES THAT MAY RESULT FROM A FAILURE TO INSTALL AND USE THIS UNIT AS STATED IN THESE INSTRUCTIONS.

  • Page 5: Caution On Handling

    • Cleaning the LCD panel The LCD panel tends to collect dust, so wipe it off occasionally with a soft and dry cloth. The surface is easily scratched, so do not rub it with hard objects. VMA7483...

  • Page 6: Remote Control Unit

    1. The unit must be installed horizontally. 2. Do not place objects on the unit when the LCD panel is retracted. VMA7483 3. Do not leave the remote control unit in a loca- tion where it is exposed to high temperatures as this may cause failure or deformation.

  • Page 7: Package Contents

    The Image Select switch allows you to flip the image vertically to allow installation of the unit in the ceiling or in a console box. 3. PACKAGE CONTENTS • VMA7483 ... 1 • Remote control unit (RCB-130-103) ... 1 • Remote control sensor ... 1 •...

  • Page 8: Names Of Parts And Their Functions

    LCD panel lock lever Remote control sensor LCD panel OPEN/CLOSE button Remote control signal infrared eye VMA7483 LCD panel Use the installation bracket and secure it to a console box or the like.

  • Page 9: Rear Panel

    Set the Image Select switch to position “UP”. Expansion terminal(RGB) Video input Remote control connector Connect the supplied remote control sensor to this connector. Power connector Connect the supplied power cable to this connector. Ceiling installation Installation surface Set the Image Select switch to position “DOWN”. VMA7483...

  • Page 10: Remote Control Sensor

    • • • • Set the retraction delay (1 to 5 seconds) when • the LCD panel retraction delay setup screen is displayed. Set button (RTN) This button is used to complete settings in the setup screen. VMA7483...
  • Page 11 • When replacing batteries, replace both batter- ies with new ones. • Do not short-circuit, disassemble or heat bat- teries. • Do not dispose of batteries into fire or water. • Dispose of spent batteries properly. Rear side Remote Control AA (UM-3/1.5V) Batteries Rear cover VMA7483...

  • Page 12: Operations

    Be sure not to get your fingers caught be- tween the LCD panel and the unit or the instrument panel. VMA7483 Opening the LCD Panel 1. Turn the ignition key to ACC or ON. 2. Slide the LCD panel lock button to “LOCK OFF”.
  • Page 13 LCD panel lock button to “LOCK ON” to protect the LCD panel. Note that the button must be in the “LOCK ON” position when the unit is installed in the ceiling of a car. (LOCK ON) LCD panel lock lever LCD panel lock button VMA7483...

  • Page 14: Selection Of The Screen Mode (Size)

    However, the upper and lower parts of the picture, or the right and left parts of the picture will be missed. VMA7483 • If you reduce or enlarge an image using the screen display mode switching function (full wide, cinema, etc.) of this monitor with profit...

  • Page 15: Setup

    (RTN). 1sec 2sec 3sec 4sec 5sec Sets a delay of 1 second. Sets a delay of 2 seconds. Sets a delay of 3 seconds. Sets a delay of 4 seconds. Sets a delay of 5 seconds. VMA7483...
  • Page 16 (BRIGHT) darker. The image adjustment becomes (HUE) redder. Color The image adjustment becomes (COLOR) lighter. VMA7483 Brightness adjusting screen (BRIGHT) Hue adjusting screen (HUE) first screen. Press d The image becomes brighter. Color adjusting screen (COLOR) The image becomes greener.

  • Page 18: Troubleshooting

    Check whether or not the hue and color has been properly adjusted. The LCD panel OPEN/CLOSE button, when pressed, stays lit for about a second even when the engine has been turned off (and the key is set to ACC OFF position). Remedy VMA7483...

  • Page 19: Specifications

    External dimensions : 44 (W) Mass : approx. 80 g (including batteries) * Specifications and design are subject to change without prior notice for the sake of product improve- ment. VMA7483 height 72 mm) 1200 (H) 52 (H) 165.5 (D) mm 2-1/16"...
