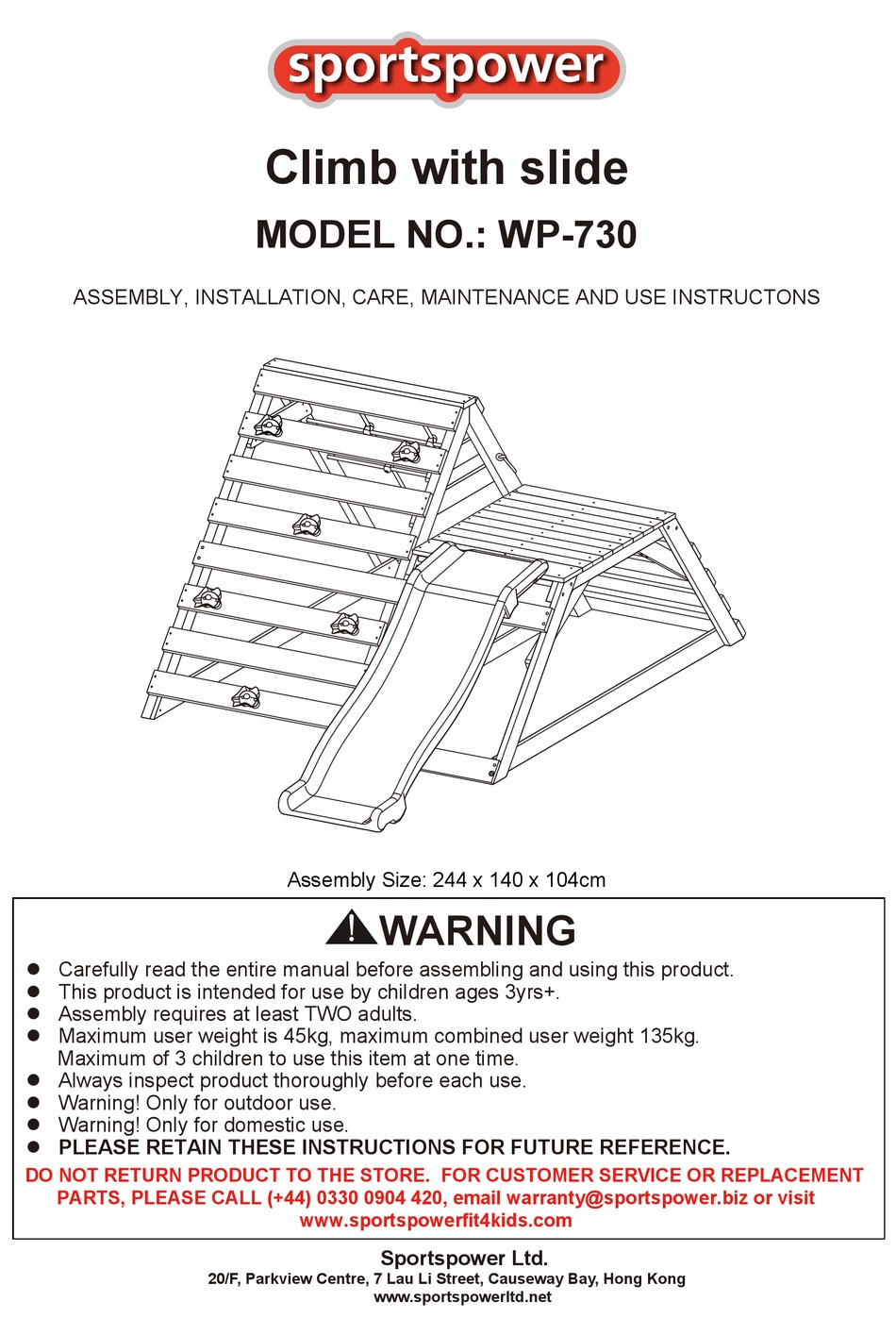

Climb with slide
MODEL NO.: WP-730
ASSEMBLY, INSTALLATION, CARE, MAINTENANCE AND USE INSTRUCTONS
Assembly Size: 244 x 140 x 104cm
!
WARNING
 Carefully read the entire manual before assembling and using this product.
 This product is intended for use by children ages 3yrs+.
 Assembly requires at least TWO adults.
 Maximum user weight is 45kg, maximum combined user weight 135kg.
Maximum of 3 children to use this item at one time.
 Always inspect product thoroughly before each use.
 Warning! Only for outdoor use.
 Warning! Only for domestic use.
 PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.
DO NOT RETURN PRODUCT TO THE STORE. FOR CUSTOMER SERVICE OR REPLACEMENT
PARTS, PLEASE CALL (+44) 0330 0904 420, email warranty@sportspower.biz or visit
www.sportspowerfit4kids.com
Sportspower Ltd.
20/F, Parkview Centre, 7 Lau Li Street, Causeway Bay, Hong Kong
www.sportspowerltd.net

Advertisement

loading
Need help?

Need help?

Do you have a question about the Climb with slide WP-730 and is the answer not in the manual?

Questions and answers

Related Manuals for SPORTSPOWER Climb with slide WP-730

Summary of Contents for SPORTSPOWER Climb with slide WP-730

  • Page 1  Warning! Only for domestic use.  PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE. DO NOT RETURN PRODUCT TO THE STORE. FOR CUSTOMER SERVICE OR REPLACEMENT PARTS, PLEASE CALL (+44) 0330 0904 420, email warranty@sportspower.biz or visit www.sportspowerfit4kids.com Sportspower Ltd.

  • Page 2: Age Limit

    IMPORTANT WARNINGS AND INSTRUCTIONS IMPORTANTWARNINGS AND INSTRUCTIONS Important –Please read these instructions thoroughly before assembly or use. BEFORE YOU BEGIN: Carefully read all instructions in this manual before assembling and using this product.The unit must be assembled by adults. Heavy duty working gloves should be worn to avoid injuries during assembly.

  • Page 3: Importantwarnings And Instructions

    IMPORTANT WARNINGS AND INSTRUCTIONS IMPORTANTWARNINGS AND INSTRUCTIONS Important –Please read these instructions thoroughly before assembly or use. BEFORE YOU BEGIN ASSEMBLY: Take a complete inventory of components using the parts list.  Sort and lay out the wood. Label each piece of wood for easy reference. For easy ...
  • Page 4 Tools Required for Assembly (Not Included) Electric Drill Phillips Head Screwdriver Ladder or Step Tool Phillips Head Screwdriver Working Gloves...

  • Page 5: Wood Parts List

    Wood parts list PICTURE...
  • Page 6 Wood parts list PICTURE...

  • Page 7: Hardware Parts List

    Hardware parts list DESCRIPTION PICTURE M8×28mm M8×45mm M6×28mm M4×28mm M4×35mm M4×45mm M4×40mm M6×27mm M6×40mm M6×50mm Allen Wrench (M6) Allen Wrench (M5) Allen Wrench (M4)
  • Page 8 Assembly Instructions Step 1 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  First, connect #5 to #1 and #3 using L6 (4pcs), then connect #6 to #1 and #3 using L6 (4pcs).  First, connect #5 to #2 and #4 using L6 (4pcs), then connect #6 and #23 to #2 and #4 using L6 (8pcs). FIGURE 1...
  • Page 9 Assembly Instructions Step 2 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Place #7 onto the frame using L7 (4pcs) as shown.  Connect #20 to #1 and #2 using S3 (4pcs) and V20 (4pcs). S3,V20 S3,V20 FIGURE 2...
  • Page 10 Assembly Instructions Step 3 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Connect #25 to #2 and #4 using B2L (4pcs), V8 (4pcs) and V9 (4pcs). B2L,V8 B2L,V8 FIGURE 3...
  • Page 11 Assembly Instructions Step 4 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Connect U4 (2pcs) to #8 using B30 (4pcs), V2 (4pcs) and V31 (4pcs).  Connect U4 (1pcs) to #9 using B30 (2pcs), V2 (2pcs) and V31 (2pcs). ...
  • Page 12 Assembly Instructions Step 5 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Connect #21 to #4 and #3 using S2 (2pcs), S3 (2pcs) and V20 (4pcs). S3,V20 S3,V20 S3,V20 S2,V20 FIGURE 5...
  • Page 13 Assembly Instructions Step 6 Part No. Quantity  Thread the rope # 27 into the two sides of #4 and #3 and secure the rope knot is tight as shown. FIGURE 6...
  • Page 14 Assembly Instructions Step 7 Part No. Quantity  Thread the rope # 26 (2pcs) into the two sides of #10 and #21 and secure the rope knot is tight as shown. Noted: Make sure the distance between the rope knot is 122cm. No need to connect to the frame in this step.
  • Page 15 Assembly Instructions Step 8 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Lift #10 and connect to #3 and #4 using S3 (4pcs) and V20 (4pcs) and secure the rope is straight. S3,V20 S3,V20 Don't leave gaps. FIGURE 8...
  • Page 16 Assembly Instructions Step 9 Hardware Needed: Part No. Quantity Part No. Quantity  xxxxxxxxxxxxxx FIGURE 9...
  • Page 17 Assembly Instructions Step 10 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity Part No. Quantity  Connect #15 to #11 and #24 using B1 (4pcs), V8 (4pcs) and V9 (4pcs).  Connect #5 to #11 and #24 using L6 (4pcs). ...
  • Page 18 Assembly Instructions Step 11 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Connect #19 to #2 and #11 using S1 (2pcs), S2 (2pcs) and V20 (2pcs). S2,V20 S2,V20 S1,V20 S1,V20 FIGURE 11...
  • Page 19 Assembly Instructions Step 12 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Connect #14 to #15 using L7 (4pcs).  Connect one end of #14 to #11 and #24 using L11 (4pcs). FIGURE 12...
  • Page 20 Assembly Instructions Step 13 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Connect #16 and #17 onto #15 and #25 using L6 (7pcs). FIGURE 13...
  • Page 21 Assembly Instructions Step 14 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Connect #22 to the bottom of #16 and #17 using L6 (2pcs). FIGURE 14...
  • Page 22 Assembly Instructions Step 15 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Connect #18 onto #15 and #25 using L6 (24pcs) as shown. FIGURE 15...
  • Page 23 Assembly Instructions Step 16 Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity  Connect #12 and #13 to #4 and #24 using L6 (16pcs) as show. FIGURE 16...
  • Page 24 Assembly Instructions Step 17 Hardware Needed: Part No. Quantity Part No. Quantity  Place #29 to U1 using U11 (2pcs) and L5 (8pcs) as show. FIGURE 17...
  • Page 25 Assembly Instructions Congratulations! You have completed installing the product. Please go over the entire unit to tighten all the screws. Make sure all parts are properly assembled before allowing children to use.

  • Page 26: Product Warranty

    Product Warranty Sportspower Ltd warrants its products to be free from defects in material and workmanship under normal use and service condi�ons for 180 days a�er the date of purchase. All warranty coverage extends only to the original purchaser of the product and is not assignable or transferable.
  • Page 27 PARTS OR ASSEMBLY INSTRUCTIONS. STORES ARE NOT EQUIPPED TO PROVIDE CUSTOMER SERVICE FOR THIS PRODUCT. DO NOT RETURN PRODUCT TO THE STORE. FOR CUSTOMER SERVICE OR REPLACEMENT PARTS, PLEASE CALL (+44) 0330 0904 420, or email warranty@sportspower.biz or visit www.sportspowerspares.com Sportspower Ltd.
