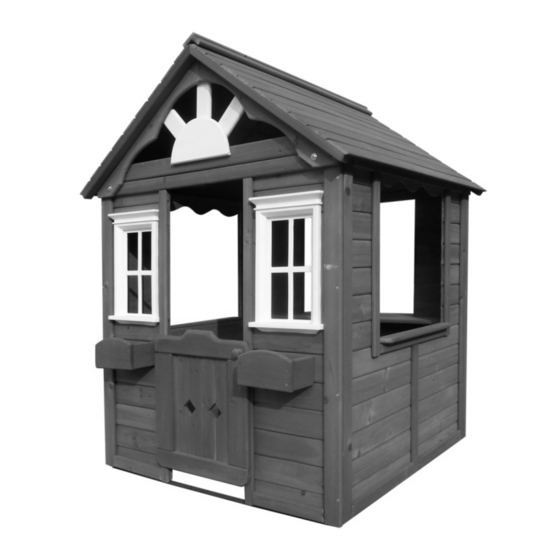

Garden playhouse
Hide thumbs

Advertisement

Quick Links

Download this manual
GARDEN PLAYHOUSE
(MODEL # WP-518S)
FOR RESIDENTIAL USE ONLY
!
WARNING
Carefully read and understand the entire manual before assembling and using this
product.
This product is intended for use by children from ages 3 to 8.
Do not allow more than 4 children to use at the same time. Maximum user weight is
100lbs (45kg), with combined weight not to exceed 400 lbs (180kg)
Assembly requires at least TWO adults.
Always inspect product thoroughly before each use..
PLEASE RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
DO NOT RETURN TO THE STORE
For customer service, please call 1-866-370-2131 Monday-Friday 9am-5pm Eastern Time
or visit our website
atwww.sportspowerltd.net
SPORTSPOWER LTD
FLAT M, 3/FLOOR, KAISER ESTATE PHASE 3, 11 HOK YUEN STREET, HUNGHOM, KOWLOON, HK
US Toll Free Number 1-800-497-6106

Advertisement

loading
Need help?

Need help?

Do you have a question about the WP-518S and is the answer not in the manual?

Questions and answers

Related Manuals for SPORTSPOWER WP-518S

Summary of Contents for SPORTSPOWER WP-518S

  • Page 1 GARDEN PLAYHOUSE (MODEL # WP-518S) FOR RESIDENTIAL USE ONLY WARNING Carefully read and understand the entire manual before assembling and using this product. This product is intended for use by children from ages 3 to 8. Do not allow more than 4 children to use at the same time. Maximum user weight is 100lbs (45kg), with combined weight not to exceed 400 lbs (180kg) Assembly requires at least TWO adults.
  • Page 2 IMPORTANT INFORMATION Important –Please read these instructions fully before assembly or use. Dear Valued Customer Congratulations on your wood playhouse purchase! Please read and completely understand the contents of this owner’s manual. This manual contains specific safety instructions that must be followed to prevent injuries and ensure proper maintenance.

  • Page 3: Safety Information

    SAFETY INFORMATION Important –Please read these instructions fully before assembly or use. BEFORE YOU BEGIN: Carefully read all instructions in this manual before assembling and using this product. The unit must be assembled by adults. Heavy duty working gloves must be worn to avoid injuries during assembly.

  • Page 4: Before You Begin Assembly

    SAFETY INFORMATION Important –Please read these instructions fully before assembly or use. WARNING BEFORE YOU BEGIN ASSEMBLY: Take a complete inventory of components using the parts list. • Sort and lay out the wood pieces. Some wooden components may twist or warp in the carton after •...
  • Page 5 SAFETY INFORMATION Important –Please read these instructions fully before assembly or use. • The materials used in your product are subject to normal wear. Gradual deterioration of the material will occur, the speed of which will depend on the level of exposure to UV rays, airborne pollution, outdoor weather conditions such as rain and wind and the amount of use.

  • Page 6: Choosing A Site

    IMPORTANT INFORMATION Important –Please read these instructions fully before assembly or use. The following guidelines are extracts from the Consumer Product Safety Commission Outdoor Home Playground Safety Handbook. It is recommended that you read the entire handbook and take necessary precautions to prevent serious injuries to your children, including: CHOOSING A SITE When you choose a home playground, a location away from roads and driveways and readily visible from •...
  • Page 7 INPORTANTINFORMATION Important –Please read these instructions fully before assembly or use. Poured-In-Place Surfaces or Pre-Manufactured Rubber Tiles You may be interested in using surfacing other than loose-fill materials-like rubber tiles or poured-in-place surfaces. Installations of these surfaces generally require a professional and are not “do-it-yourself” projects •...
  • Page 8 CARE AND MAINTENANCE CHECKLIST AT THE BEGINNING OF EACH PLAY SEASON: Tighten all hardware. Lubricate all metallic moving parts per manufacturer’s instructions. Check all protective coverings on bolts, pipes, edges, and corners. Replace if they are loose, cracked, or missing. Check all moving parts including swing seats, ropes, cables and chains for wear, rust or other deterioration.
  • Page 9 All rusted parts, bolts must be properly disposed of in trash bin. OUTDOOR HOME PLAYGROUND SAFETY CHECKLIST Use this to help make your home playground a safe place to play! Outdoor Home Playground Safety Checklist Use this to help make your home playground a safe place to play! Supervision Be sure to always supervise children on play equipment.
  • Page 10 Tools Required for Assembly (NOT INCLUDED) These are the tools that are generally required for installation Electric Drill Phillips Head Screw Drive ⁄ ” bit Ladder or Step Tool Phillips Head Screwdriver Tape Measure Working Gloves...
  • Page 11 WOOD PART LIST...
  • Page 12 WOOD PART LIST WOOD PART LIST...
  • Page 13 WOOD PART LIST...
  • Page 14 HARDWARE PART LIST S6 M4x35mm 24pcs S10 M4x25mm Deck Screw 8pcs S5:M4*28MM 21pcs S7 M4x45mm Deck Screw 22pcs V8 – 4PCS V9 – 4PCS...
  • Page 15 IMPORTANT!!! Please do not over-tighten the screws until the entire play set is completely assembled. Screws should be tightened just enough to hold the parts together initially. Once the whole unit is assembled, you must go back and tighten all screws and inspect for stability before allowing children to use the play set.
  • Page 16 STEP 1 Assembly Instructions Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity 1set 16pcs 1set 1set 1set INSTALL WALL PANELS OF PLAYHOUSE Connect 2 to 1 using S7(4). Connect 4 to 1 using S7(4).
  • Page 17 Assembly Instructions Connect 2 to 3 using S7(4). Connect 4 to 3 using S7(4).
  • Page 18 STEP 2 Assembly Instructions Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity 2sets 4pcs 4pcs 4pcs 4Pcs Connect 5 to 1 using B1, V8, V9(2SET). Connect 5 to 3 using B1, V8, V9(2SET).
  • Page 19 Assembly Instructions Connect 1 to 5 using S5(2). Connect 3 to 5 using S5(2).
  • Page 20 STEP 3 Assembly Instructions Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity 2sets 17pcs 3pcs 4pcs 6pcs 2pcs Connect 6 to 1 using S5(8).
  • Page 21 Assembly Instructions Connect 7 to 3 using S7(6) as show.
  • Page 22 Assembly Instructions Assembly Instructions Connect 8 to 2,4 and 7using S5(5) as show. Connect 9 to 7using S5(4) as show.
  • Page 23 Assembly Instructions Connect 10 to 2 using S6(2) as show. Connect 10 to 4 using S6(2) as show.
  • Page 24 STEP 4 Assembly Instructions Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity 2sets 12pcs 1set 4pcs INSTALL THE ROOF OF THE PLAYHOUSE From inside playhouse, Connect 11 to 5,using S6 (6) as show. Repeat in the same manner on the opposite side, using S6 (6). Important: Make sure the top sides of 11 are aligned with no gaps in between.
  • Page 25 Assembly Instructions From inside playhouse, Connect 12 to 11,using S10(4) as show.
  • Page 26 STEP 5 Assembly Instructions Wood Boards Needed: Hardware Needed: Part No. Quantity Part No. Quantity 1set 8pcs 1set 4pcs 1set INSTALL THE BENCH OF THE PLAYHOUSE From inside playhouse, Connect 13 and 13A to 3,using S6 (4) as show.
  • Page 27 Assembly Instructions Connect 14 to 13 and 13A, using S6(4) as show.
  • Page 28 Assembly Instructions Connect U32 to 13, 13A and 3, using S10(4) as show.

  • Page 29: Product Warranty

    PRODUCT WARRANTY PRODUCT WARRANTY Sportspower Ltd warrants its products to be free from defects in material and workmanship under normal use and service conditions for 180 days after the date of purchase. Extended warranty for an extra 90 days will be offered to those customers registering their products at www.sportspowerltd.net within 14 days from the...
  • Page 30 INFORMATION SPORTSPOWER IS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC LOSS, LOSS OF PROPERTY, LOSS OF REVENUEOR PROFITS, LOSS OF ENJOYMENT OR USE, COST OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES.
