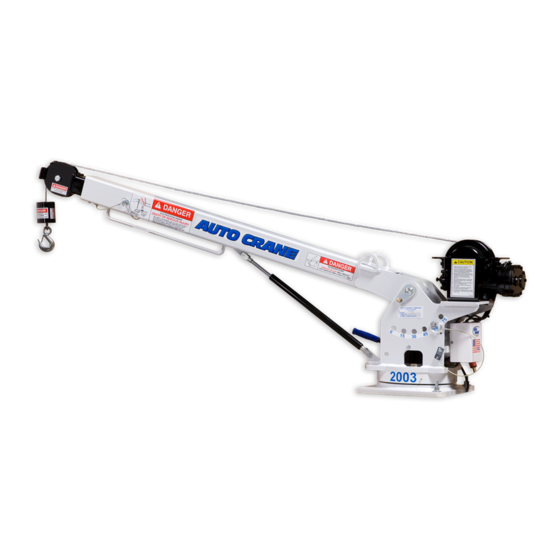

OWNERS MANUAL
2003 SERIES
REVISION 2/2000
PART NO. 999951
SERIAL NO. __________________________
PO BOX 580697, TULSA, OK 74158-0697
4707 N. MINGO ROAD, TULSA, OK 74117-5904
PHONE (918) 836-0463
FAX (918) 834-5979
http://www.autocrane.com
