Draper FOUNDATION Installation Manual page 13

Foundation for LED Panels
™

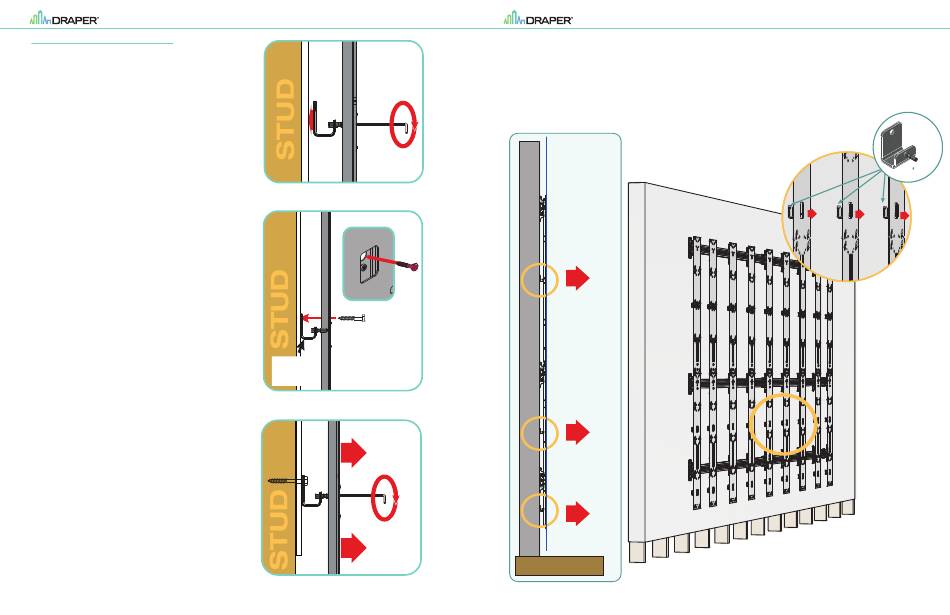

Section 11.3 - Z - Axis Adjustment
1. Using a 3mm hex wrench, adjust each Wall Adjuster
Bracket until it contacts the wall.
2. Use the clearance hole in the vertical rail to allow for a
socket to drive a lag screw (by others) into the wall.
Fig. 11.3-2
3. Rotate the differential screw to push or pull the vertical
rail to be straighter if required.
Fig. 11.3-3
page 24 of 32
1
Fig. 11.3-1
3mm Hex
Wrench
2
WALL ADJUSTMENT BRACKET
Mounting Access Hole
MOUNTING
HARDWARE
(by Others)
WALL
ADJUSTMENT VERTICAL
BRACKET RAIL
3
3mm Hex
Wrench
Foundation for LED Panels
™
Adjust Wall Adjustment Brackets
Until All Vertical Rails are flush.
Bubble Level recommended.
page 25 of 32
WALL ADJUSTER
BRACKET
ASSEMBLY
Differential
Screw
3mm Hex Wrench
