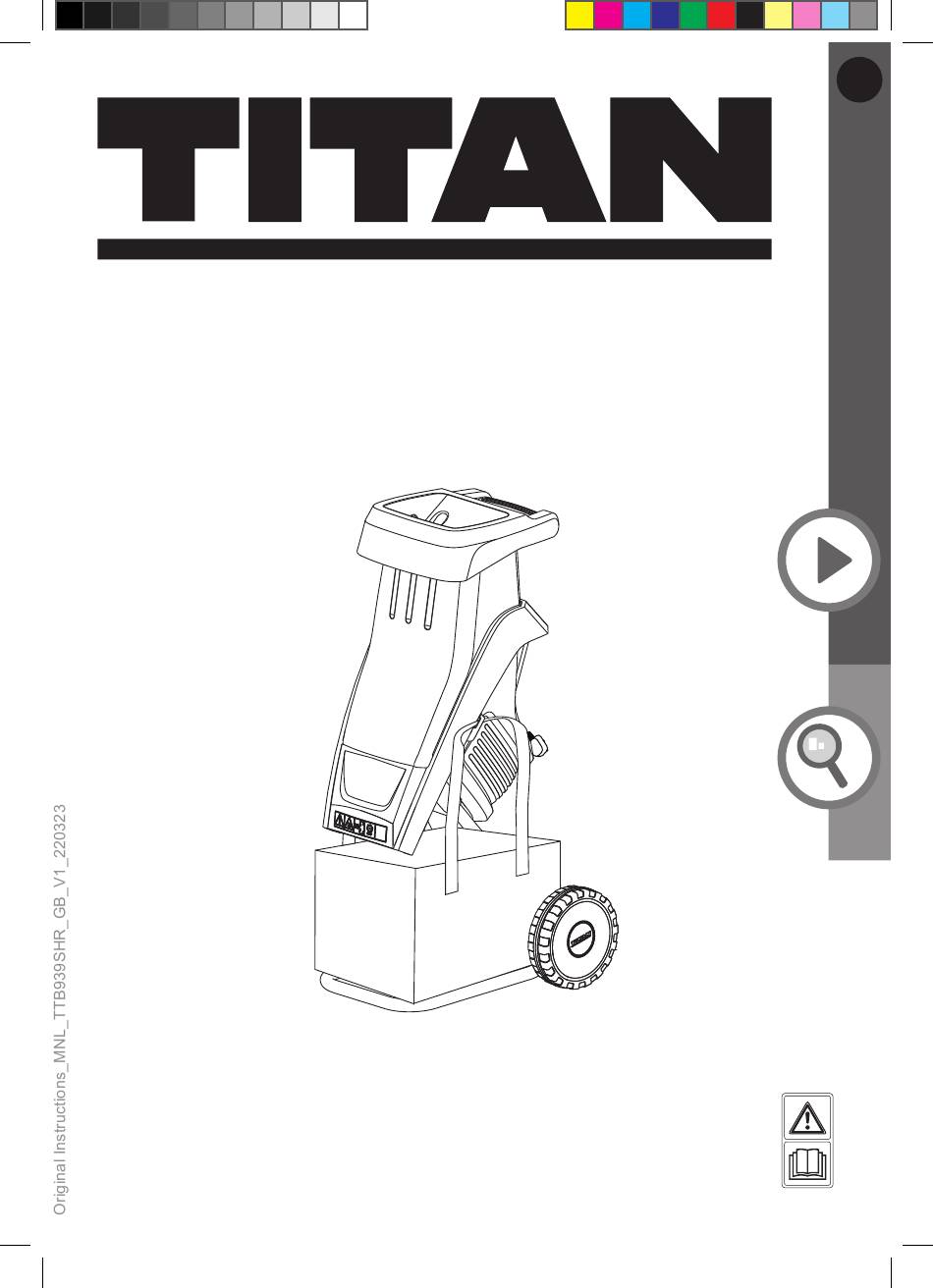

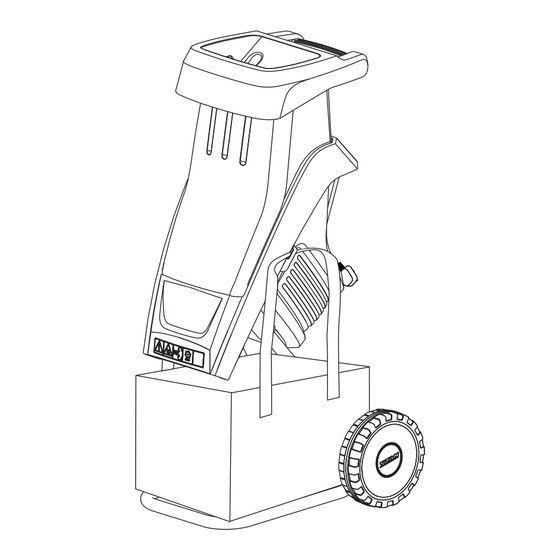

- Page 1 Impact Shredder 2400W TTB939SHR WARNING: Read the instructions before using the product! V10322 / BX220IM MNL_TTB939SHR_2400W Impact Shredder_GB_V1_220323.indd 1 MNL_TTB939SHR_2400W Impact Shredder_GB_V1_220323.indd 1 2022/3/23 3:35 PM 2022/3/23 3:35 PM...
-
Page 2: Table Of Contents
Let’s get started These instructions are for your safety. Please read through them thoroughly before use and retain them for future reference. started... Getting Safety information Your product Before you start more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Customer Care and Technical Helpline... - Page 3 TTB939SHR by TITAN Safety information Safety warnings 1. Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.
- Page 4 Safety information TTB939SHR by TITAN Safety warnings WARNING! When using the product the safety rules must be followed. For your own safety and that of bystanders please read these instructions before operating the product. Please keep the instructions safe for later use.
- Page 5 TTB939SHR by TITAN Safety information 5. Before using, always visually inspect to see, that the shredding means, shredding means bolts and other fasteners are secure, the housing is undamaged and that guards and screens are in place. Replace worn or damaged components in sets to preserve balance.
- Page 6 Safety information TTB939SHR by TITAN Safety warnings 9. When feeding material into the product be extremely careful that pieces of metal, rocks, bottles, cans or other foreign objects are not included. 10. If the cutting mechanism strikes any foreign objects or...
- Page 7 TTB939SHR by TITAN Safety information - after striking a foreign object to inspect the product for damage; - if the product starts to vibrate abnormally, for immediately check. 17. Do not tilt the product while the power source is running.
- Page 8 Safety information TTB939SHR by TITAN Safety warnings 8. Have the product repaired only by an authorised service centre or similar qualified specialist. 9. Never attempt to override the interlocked feature of the cover. 10. Store the product in a dry place out of the reach of children.
- Page 9 TTB939SHR by TITAN Safety information provided in this user manual. 8. Only use replacement parts and accessories supplied and recommended by the manufacturer. Using third- party parts will immediately invalidate the guarantee! 9. Do not leave the product working unattended and keep it in a dry place out of children’s reach.
-
Page 10: Safety Information
Safety information TTB939SHR by TITAN Safety warnings 4. Keep tight grip on the handles/grip surface. 5. Maintain this product in accordance with these instructions and keep it well lubricated (where appropriate). 6. Plan your work schedule to spread any high vibration tool use across a longer period of time. - Page 11 TTB939SHR by TITAN Safety information WARNING! This product produces electromagnetic field during operation! This field may under some circumstances interfere with active or passive medical implants! To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their...
- Page 12 Safety information TTB939SHR by TITAN Symbols Wear protective gloves. Wear protective, slip-resistant footwear. Wear tight-fitted protective clothes. Switch the product off and disconnect the plug from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Do not expose the product to rain or wet conditions (moisture).
-
Page 13: Your Product
TTB939SHR by TITAN Safety information / Your product WEEE symbol. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or local store for recycling advice. The product complies with the applicable European directives and an evaluation method of conformity for these directives was done. -
Page 14: Before You Start
Your product / Before you start TTB939SHR by TITAN Your product NOTE: Parts marked with * are not shown in this overview. Please refer to the respective part in the instruction manual. Unpacking 1. Unpack all parts and lay them on a flat, stable surface. - Page 15 TTB939SHR by TITAN Before you start Assembly WARNING! The product must be fully assembled before operation! Do not use a product that is only partly assembled or assembled with damaged parts! Follow the assembly instructions step-by-step and use the pictures...
- Page 16 Before you start TTB939SHR by TITAN Assembly 8. Attach the cover (13a) to the wheel (13). Make sure that the latches of the cover (13a) are correctly engaged in the slots of the wheel (13) (Fig. 2, step 4). Use a rubber mallet to secure the covers all the way.
- Page 17 TTB939SHR by TITAN Before you start WARNING! Always operate the product with its collection bag (5) attached to protect yourself against flying debris and to avoid injuries! Do not use this product with a damaged collection bag (5) or without...
- Page 18 Before you start TTB939SHR by TITAN Connection to power supply WARNING! Check the voltage! The voltage must comply with the information on the rating label! If using an extension cord it must be suitable for outdoor use with sockets protected against water splashing.
-
Page 19: In More Detail
TTB939SHR by TITAN more detail... Product functions Operation Care and maintenance Troubleshooting Recycling and disposal Guarantee Customer Care and Technical Helpline Availability of Spare Parts Technical Declaration of conformity MNL_TTB939SHR_2400W Impact Shredder_GB_V1_220323.indd 19 2022/3/23 3:35 PM... - Page 20 Product functions / Operation TTB939SHR by TITAN Intended use This electric impact shredder MIS2400 is designated with a rated power input of 2400 Watts. The product is designed for cutting of fibrous and woody garden waste for composting. The product is not intended for shredding pieces of metal, rocks, bottles, cans, etc.
- Page 21 TTB939SHR by TITAN Operation 2. Double check that accessories or attachments are properly fixed. 3. Always carry the product on its transportation handle. Keep the transportation handle dry and clean to ensure safe support. 4. Ensure that the air vents (4) are always unobstructed and clear. Clean them if necessary with a soft brush.
- Page 22 Operation TTB939SHR by TITAN General operation 22. Organic material contains a large amount of water and sap that can stick to the product. To avoid this, the material should be left for a few days to dry out. Large branches however are best shredded when they are fresh.
- Page 23 TTB939SHR by TITAN Operation Fig. 8 Fig. 9 Fig. 10 WARNING! Switch the product off and disconnect it from the power supply if it stops suddenly during operation. Refer to the instructions below about removing blockages and the “Troubleshooting” section.
- Page 24 Operation / Care and maintenance TTB939SHR by TITAN After use 1. Switch the product off, disconnect the plug from the power supply and let it cool down. 2. Check, clean and store the product as described below. The golden rules for care WARNING! Always switch the product off, disconnect the plug from the power supply.
- Page 25 TTB939SHR by TITAN Care and maintenance Maintenance Before and after each use, check the product and accessories or attachments for wear and damage. If required, exchange them for new ones as described in this instruction manual. Observe the technical requirements.
- Page 26 Care and maintenance Care and maintenance TTB939SHR by TITAN Maintenance 7. Insert a suitable tool (e. g. screwdriver) through the location hole (19a) of the blade guard (19) (Fig. 12, step 4). 8. Rotate the blade plate (15) carefully (Fig. 12, step 5) until the tool goes through with the location hole (15a) on the blade plate (15).
- Page 27 TTB939SHR by TITAN Care and maintenance 14. Once the cutting blade (16) is replaced and secured, re-fit and close the cover (8). Ensure the cover (8) sits properly on both sides of the main unit (3) and the interlocking device (8a) properly seats in the safety key slot (17).
- Page 28 Care and maintenance TTB939SHR by TITAN UK plug (only for UK market) WARNING! Never connect live or neutral wires to the earth terminal of the plug, which is marked with E. Only fit an approved 13 Amp BS 1363 or BS 1363/A plug and the correctly rated fuse.
-
Page 29: Troubleshooting
TTB939SHR by TITAN Care and maintenance / Troubleshooting 4. Only transport the product by its transportation handle (1). Tilt the product towards you until it balances on the wheels (13). Then move it by its transportation handle (1) (Fig. 14). -
Page 30: Recycling And Disposal
Troubleshooting / Recycling and disposal TTB939SHR by TITAN Troubleshooting 3. Unsatisfac- 3.1. Cutting blade is dull / 3.1. Replace with a new one tory result / damaged shredding 3.2. Cutting material 3.2. Only cut materials material is not exceeds capacity... -
Page 31: Guarantee
TTB939SHR by TITAN Guarantee Guarantee Guarantee We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product ( Impact shredder 2400W) has a manufacturer’s guarantee of 2 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost for normal (non- professional or commercial) household use. - Page 32 Guarantee TTB939SHR by TITAN Guarantee Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, W26PX London United Kingdom www.kingfisher.com/products Distributor: B&Q plc Chandlers Ford, Hants, SO53 3LE, United Kingdom www.diy.com Screwfix Direct Limited Trade House, Mead Avenue, Yeovil, BA22 8RT, United Kingdom www.screwfix.com...
-
Page 33: Customer Care And Technical Helpline
TTB939SHR by TITAN Customer Care and Technical Helpline Customer Care and Technical Helpline A better way to repair your tools Kingfisher takes special care in creating high-quality garden power tools that are designed to last. But if a fault develops with your garden power tool and you... -
Page 34: Availability Of Spare Parts
Availability of Spare Parts TTB939SHR by TITAN Availability of Spare Parts Contact the customer service helpline for assistance or visit www.kingfisher- spares.com For assistance contact the customer services helpline: UK 0800 0789647 uk@Kingfisherservice.com EIRE 1800 932226 eire@kingfisherservice.com Further information about this product can also be found at: www.kingfisher.com/products... - Page 35 TTB939SHR by TITAN General > Rated voltage, frequency : 220-240 V~,50 Hz > Rated power input : 2400 W (P40) > Rated no load speed n : 3940 min > Max. branch shredding diameter : Ø 40 mm > Collection bag capacity : 60 L >...
- Page 36 TTB939SHR by TITAN WARNING! The vibration and noise emissions during actual use of the power tool can differ from the declared values depending on the ways in which the tool is used especially what kind of workpiece is processed; and need to identify safety measures to protect the operator that are...
-
Page 37: Declaration Of Conformity
TTB939SHR by TITAN Declaration of conformity Declaration of conformity MNL_TTB939SHR_2400W Impact Shredder_GB_V1_220323.indd 35 2022/3/23 3:36 PM... - Page 38 Manufacturer,Fabricant,Producent,Producător,Fabricante: UK Manufacturer: Kingfisher International Products Limited 3 Sheldon Square, London, W2 6PX United Kingdom www.kingfisher.com/products EU Manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.kingfisher.com/products www.diy.com To view instruction manuals online, visit www.kingfisher.com/products www.castorama.fr Pour consulter les manuels d’instructions en ligne, rendez-vous sur le site www.kingfisher.com/products www.castorama.pl Aby zapoznać...
