Interphase iScan V90 Operation Manual page 8

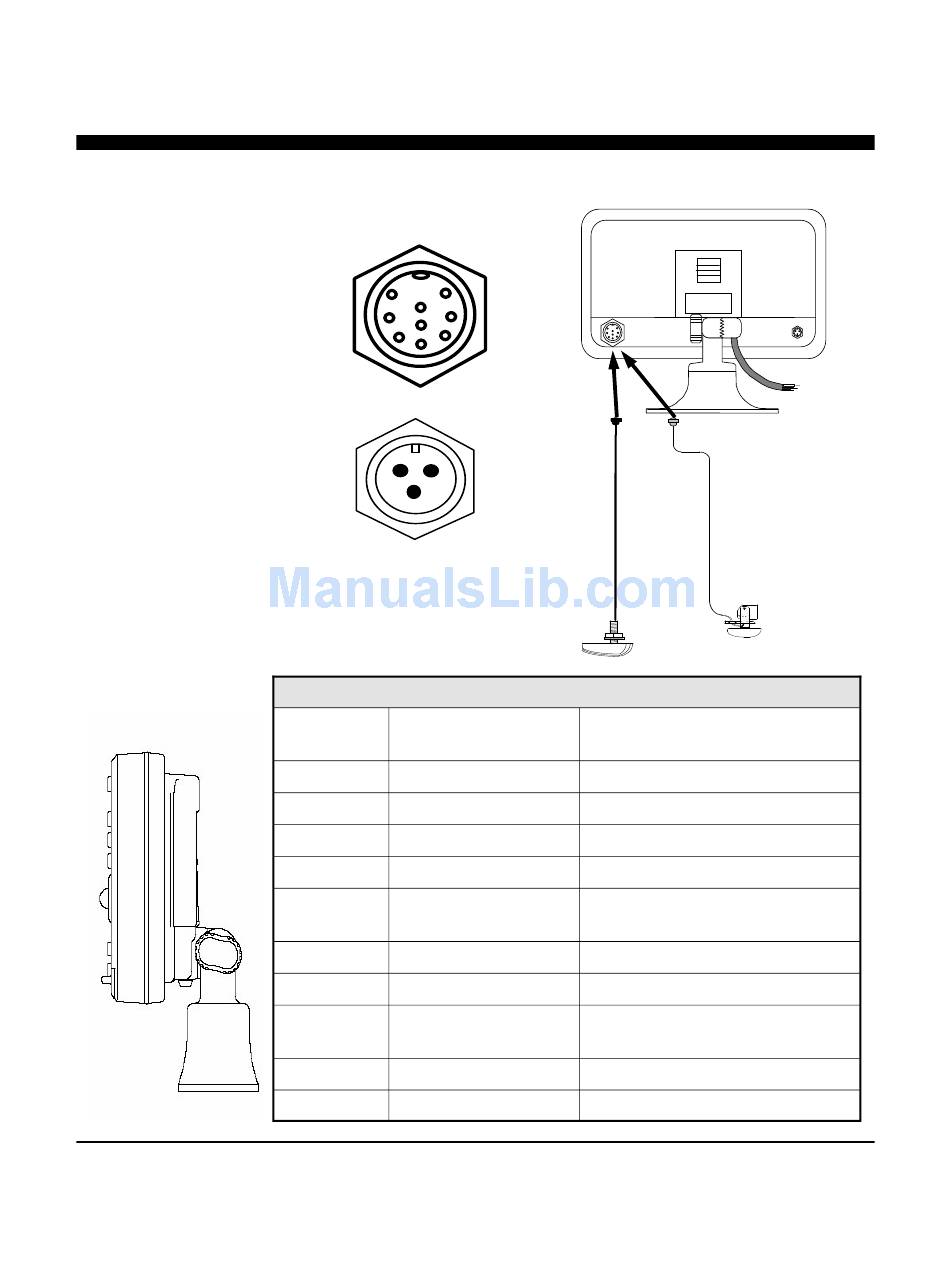

Wiring and Cable Connectors
9 Pin Transducer Connectors:
(view from front of female plug)
1 White 1st element
2 Brown 2nd element
3 Orange 3rd element
4 Yellow 4th element
5 Green 5th element
6 Blue 6th element
7 Violet 7th element
8 Gray 8th element
9 Shield Ground/Return
3 Pin Video Input
1 Ground Return
2 +12 VDC
3 Video Signal
Transducer Connector
Green = Vertical Scanning input
Main Power-I/O Wiring .
(Cable from Quick Disconnect Bracket)
1
3
2
QUICK DISCONNECT BRACKET CABLE
WIRE DESCRIPTION
COLOR
BLACK GND/COMMON
RED POWER +11-16 VDC POWER SUPPLY (+)
WHITE RXA (+)
GREEN RX-TX - GND -
YELLOW TXA (+)
BROWN RXC (+)
GRAY +12 Vdc - OUTPUT
ORANGE
RXB (+)
PINK
TXB (+)
BLUE
TXC - OUTPUT 3+
8
Transducer Connections
THRU-HULL
(T1-I200-026)
TRANSOM MOUNT
(T1-I200-025)
FUNCTION
POWER SUPPLY GND (-)
GPS INPUT PORT
SERIAL PORT(s) RETURN
NMEA OUT/ MASTER-REMOTE/
SOFTWARE DOWNLOADS
NMEA TEMP INPUT PORT
12VDC - FOR ALARM
MASTER-REMOTE/SOFTWARE
DOWNLOADS
N/C
EXTERNAL ALARM SIGNAL
Thru-Hull or
Transom Mount
Transducer
