Intermec MobileLAN 2102 Mounting & Installation
Mounting kit for easycoder printers
Hide thumbs
Also See for MobileLAN 2102:
- User manual (15 pages) ,
- Mounting & installation (2 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Intermec MobileLAN 2102
Summary of Contents for Intermec MobileLAN 2102
- Page 1 Installation Instruc- tions MobileLAN™ access 2102 Mounting Kit for EasyCoder Printers...
- Page 2 Intermec Printer AB. © Copyright Intermec Printer AB, 2002. All rights reserved. Published in Sweden. EasyCoder and EasyLAN are registered trademarks of Intermec Technologies Corp. The word Intermec, the Intermec logo, and MobileLAN are trademarks of Intermec Technologies Corp.
-
Page 3: Installation Kit

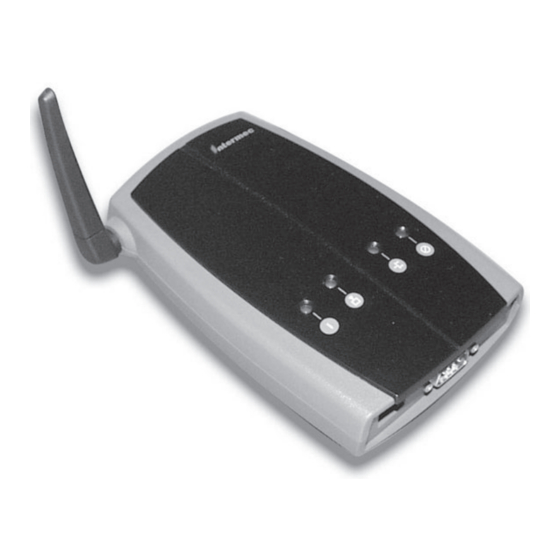

2102 Mounting Kit for EasyCoder Printers – Installation Instructions ™ The MobileLAN access 2102 Mounting Kit is an optional device that makes it possible to fi t and connect an Intermec ™ MobileLAN access 2102 device to any EasyCoder printer that is already fi... -
Page 4: Installation
™ the MobileLAN access 2102 mounting bracket (plastic) to the metal bracket. Metal Bracket EasyLAN 10i Board ™ access 2102 Mounting Kit for EasyCoder Printers – Installation Instructions ™ MobileLAN access 2102 Mounting Bracket #T10 Torx screws (2 places) Phillips screws... -
Page 5: Chapter 2 Installation
EasyCoder XP- series printers. ™ MobileLAN access 2102 Mounting Kit for EasyCoder Printers – Installation Instructions EasyLAN 100i Interface Board • Remove the two #T10 Torx screws that hold the cover plate of the EasyLAN 100i interface board. - Page 6 • Connect the MobileLAN transformer/cable included in the kit. Power to ™ access 2102 ™ access 2102 Mounting Kit for EasyCoder Printers – Installation Instructions ™ access 2102 MobileLAN ™ access 2102 Slots ™...
-
Page 7: Setting Up The Connection
It is important that you start by setting up the Master and continue by setting up the Slave! Master ™ MobileLAN access 2102 Mounting Kit for EasyCoder Printers – Installation Instructions ™ The MobileLAN access 2102 uses an IEEE 802.11B master/ slave connection. ™... - Page 8 Chapter 3 Setting Up the Connection Master, cont. MobileLAN Set “Node” type to <Master>. Set “Wireless Hops” to <Enabled>. The “Spanning Tree Settings/Global Flooding” should now be as follows: ™ access 2102 Mounting Kit for EasyCoder Printers – Installation Instructions...
- Page 9 Master, cont. ™ MobileLAN access 2102 Mounting Kit for EasyCoder Printers – Installation Instructions Chapter 3 Setting Up the Connection Select the “Save/Discard Changes” option. Click on “Save Changes and Reboot.” Note that this document only describes the steps necessary to set up a wireless access point to connect with a printer.
- Page 10 Log in as “intermec”. Default password is “intermec.” Set the “Node type” to <Station>. Note that after changing this parameter, the MobileLAN relay radio communications to other slaves. ™ access 2102 Mounting Kit for EasyCoder Printers – Installation Instructions ™ access 2102 will not be able to...
-
Page 11: Setup Summary
Setup Summary ™ MobileLAN access 2102 Mounting Kit for EasyCoder Printers – Installation Instructions Chapter 3 Setting Up the Connection Go to the “Spanning Tree Settings” and set the “Secondary LAN Bridge Priority” to 1, “Root priority” to 0, and “Second- ary LAN Flooding”... - Page 12 Notes ™ MobileLAN access 2102 Mounting Kit for EasyCoder Printers – Installation Instructions...
- Page 14 Intermec Printer AB Idrottsvägen 10, P.O. Box 123 S-431 22 Mölndal, Sweden tel +46 31 869500 fax +46 31 869595 www.intermec.com MobileLAN™ access 2102 Mounting Kit for EasyCoder Printers, Installation Instructions *1-960547-02* *1-960547-02*...
