Intermec 2101 Connecting

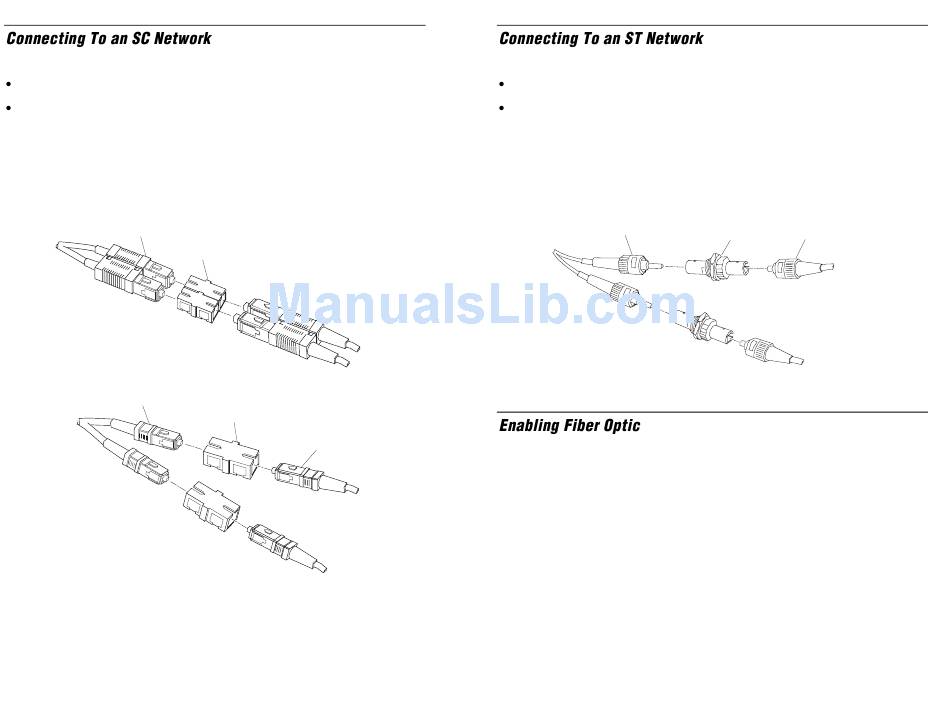

To connect to an SC network, you need the following:
Patch cord for connecting the MT-RJ transceiver to the SC adapter
Adapter for connecting an SC cord to an SC network
1. Remove any cable protectors attached to the patch cord and adapter.
2. Connect the access point to your network as shown in the next illustrations.
SC connector
To access
point
SC adapter
FOI005.eps
SC connector
To
access
point
SC connector
To SC
network
SC adapter
SC connector
To
SC network
FOI002.eps
To
SC network
To connect to an ST network, you need the following:
Patch cord for connecting the MT-RJ transceiver to the ST adapter
Adapter for connecting an ST cord to an ST network
1. Remove any cable protectors attached to the patch cord and adapter.
2. Connect the access point to your network as shown in the next illustration.
ST connector
To
access
point
After you have connected the access point to your fiber optic network, you must
enable fiber optic on the access point.
1. Point your Web browser to your access point's IP address. The access point
Web interface opens.
2. Click Ethernet from the AP Configuration menu. The Ethernet screen appears.
3. Click Port Type and choose 100 Mb Fiber Optic.
4. Click Submit Changes and follow the instructions that appear on your screen.
5. You must reboot the access point to enable your changes. Click Save/Discard
changes and follow the instructions that appear on your screen to reboot the
access point.
ST connector
ST adapter
To
ST network
To
FOI001.eps
ST network
