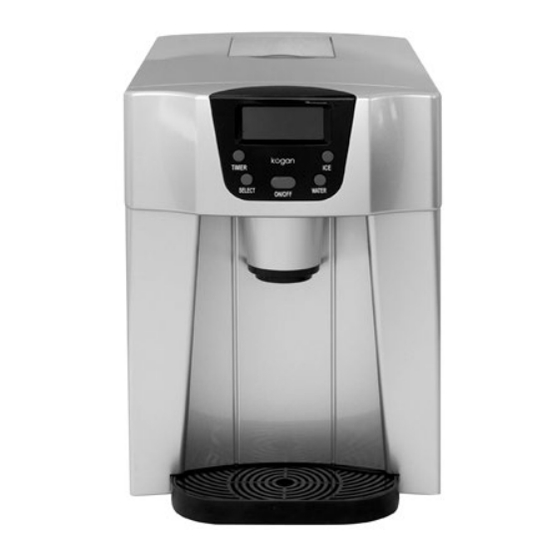

Kogan KA2ICDISPSA User Manual

2l 2-in-1 ice cube maker and water dispenser
Hide thumbs Also See for KA2ICDISPSA:
Table of Contents

Advertisement

Quick Links

2L 2-IN-1 ICE CUBE MAKER
AND WATER DISPENSER
KA2ICDISPSA, KA2ICDISPSB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KA2ICDISPSA and is the answer not in the manual?

Questions and answers

Related Manuals for Kogan KA2ICDISPSA

Summary of Contents for Kogan KA2ICDISPSA

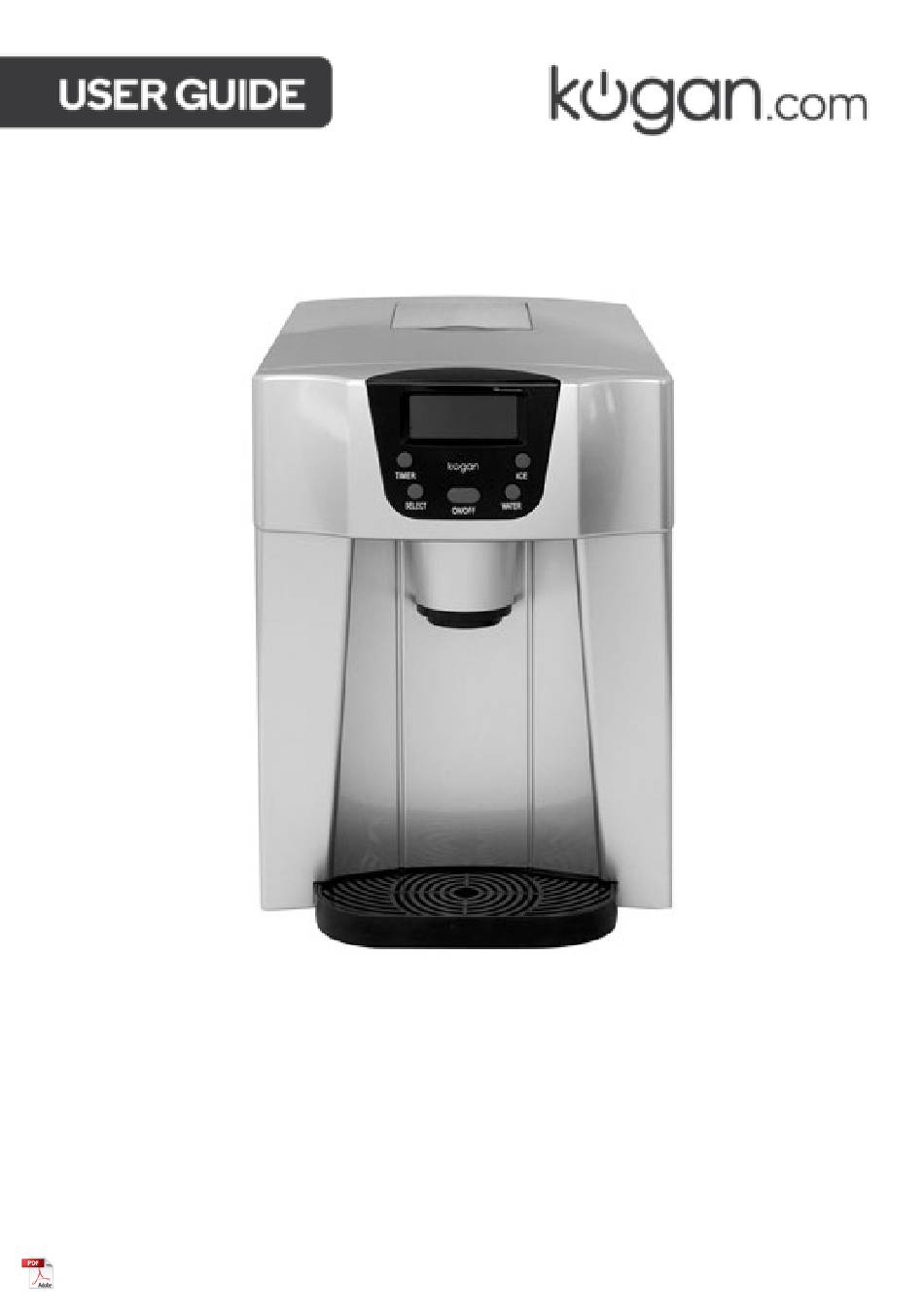

  • Page 1 2L 2-IN-1 ICE CUBE MAKER AND WATER DISPENSER KA2ICDISPSA, KA2ICDISPSB...

  • Page 3: Safety And Warnings

    • When in use, ensure the plug is fully inserted into the socket. • If the power cord is damaged, stop use immediately and contact help.Kogan.com for assistance. • This appliance must be positioned in such a way that the plug is accessible.
  • Page 4 • Use of an extension cord is not recommended as it may overheat and present a risk of fire. If an extension cord is used, use a cord with a minimum wire gauge of 0.75mm and is rated at least ~16A/250V with a plug. •...
  • Page 5 OVERVIEW Exterior Evaporator Drip tray cover Control panel Ice cube pushing spring Side door Top window Water tank Drain plug Drip tray Air outlet...
  • Page 6 Control panel Display Ice dispensing button Timer button Water dispensing button Select button Power button Display 19 20 22 23 24 25 Timer indicator Full indicator Small ice cube indicator Low water level indicator Large ice cube indicator Error indicator Ice dispensing indicator Water dispensing indicator Power indicator...

  • Page 7: Before First Use

    Remove the packaging and ensure all components are accounted for. Remove the protective tape on the appliance then open the top window and take out the drip tray and drip tray cover. If any components are missing, contact help.Kogan.com for assistance.

  • Page 8: Operation

    OPERATION Filling and powering 1. Place the drip tray and drip tray cover onto the appliance. Open the side door and fill water (7°C–32°C) into the water tank until just below the ‘MAX’ line. Fill with water ‘MAX’ line 2. Ensure you have allowed the refrigerant to settle for one hour. Plug the power cord into a grounded wall outlet.
  • Page 9 Adjusting the ice cube size By default, the appliance will form large ice cubes. If you would like small ice cubes, press the select button on the control panel. The small ice cube indicator ‘ ’ will then illuminate, enabling the appliance to form small ice cubes. If both sizes are not suitable, press and hold the power button for 5 seconds whilst the appliance is making ice.
  • Page 10 Activating the timer • If the appliance is running, you may set up a timer for the appliance to stop operating after a certain time. • If the appliance is on standby, you may set up a timer for the appliance to start running after a certain time.
  • Page 11 Powering off Press the power button to turn the appliance off. Draining water Before cleaning the appliance or changing the water, the water inside the appliance must first be drained out. Unplug the drain plug from the bottom of the appliance and allow the water to flow out. You may also connect a soft plastic tube to help guide the water out.

  • Page 12: Cleaning And Care

    The following error The ambient Stop use immediately and contact indicator is temperature sensor has help.Kogan.com for assistance. illuminated: broken. The following error The appliance is not Stop use immediately and contact indicator is resetting properly.
  • Page 13 The appliance is running but unable to The refrigerant has Stop use immediately and contact make ice. leaked. help.Kogan.com for assistance. The pipe in the cooling Stop use immediately and contact system is blocked. help.Kogan.com for assistance. Disposal This marking indicates that this appliance should not be disposed of with other household wastes.

  • Page 14: Specifications

    SPECIFICATIONS Compressor R600a/23g Operating temperature 10°C–43°C Power supported 220–240V, 50Hz Current (when making ice) 0.8A Current (when dispensing ice) 1.0A Net weight 9.5kg Vesicant C5H10 CIRCUIT DIAGRAM...
  • Page 15 NOTES...
  • Page 16 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...

This manual is also suitable for:

Ka2icdispsb
