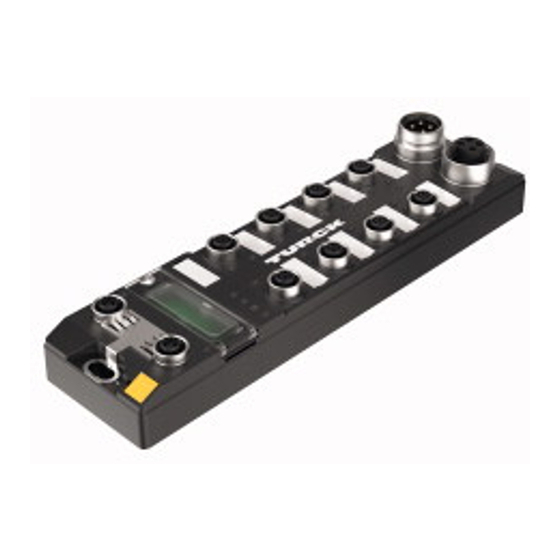

TBEN-LH-8IOL
TM
EtherNet/IP
Configuration
Guide
1218A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TBEN-LH-8IOL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for turck TBEN-LH-8IOL

Summary of Contents for turck TBEN-LH-8IOL

  • Page 1 TBEN-LH-8IOL EtherNet/IP Configuration Guide 1218A...
  • Page 2 — This page intentionally left blank —...

  • Page 3: Table Of Contents

    IO-Link Port Setup 3.4.1 Open Web Server 3.4.2 Administrator access 3.4.3 Basic Parameter Setup 3.4.4 IOL Master Default Setup 3.4.5 VAUX Control Configure TBEN-LH-8IOL with Rockwell PLC TBEN-LH-8IOL Configuration using EDS files 4.1.1 Install EDS file 4.1.2 Create a new module...
  • Page 4 4.1.3 Configure TBEN-LH-8IOL using default connection 4.1.4 Configure TBEN-LH-8IOL_QC_ON Connection 4.1.5 Configure TBEN-LH-8IOL_QC_OFF Connection TBEN-LH-8IOL configuration using generic device profile 4.2.1 Generic device configuration 4.2.2 Generic device and QC_ON configuration 4.2.3 Generic device and QC_OFF configuration TBEN-LH-8IOL Configuration with OMRON PLC Get ready environment 5.1.1...

  • Page 5: General Information

    1 General Information 1.1 About these instructions The following configuration guide describes the setup, functions, and use of the TBEN-LH-8IOL station. It helps you to plan, design, and implement the system for its intended purpose. Note*: Please read this manual carefully before using the system. This will prevent the risk of personal injury or damage to property or equipment.

  • Page 6: Contents

    1.5 Technical support For additional support, email inquiries to appsupport@turck.com, or call Application Support at 763-553- 7300, Monday-Friday 8AM-5PM CST.

  • Page 7: Getting Started

    The device data sheet and technical information is available for download at www.turck.us. 2.2 Factory default IP address The TBEN-LH-8IOL device is shipped with address switches set to 600 (PGM-DHCP). It is factory default position of the rotary switches which is associated with the IP address: IP Address: 192.168.0.254...

  • Page 8: Address Switches

    2.3 Address switches The device has 3 rotary address switches. The position of the switches (Figure 2.2) determines mode of operation of the device. The Table 2.1 provides a description of the device action when switches are set to a specific position and the device is powered up. Figure 2.2 –...

  • Page 9: Pgm Mode (500)

    The last known IP address, subnet mask and gateway address are saved in the EEPROM when rotary switches are set to 500. The IP address is programmable and may be programmed using TURCK Service Tool or Web server. The procedure: ...

  • Page 10: Turck Service Tool (Tst)

    2.4 TURCK Service Tool (TST) The TURCK Service Tool can be downloaded from the TURCK Web site at:  Enter “TURCK Service Tool” in the search field  Download and install the tool Figure 2.3 – TURCK Web page The tool has a set of action buttons in the tool bar: Figure 2.4 –...

  • Page 11: Search (F5)

    Action (F4) 2.4.1 Search (F5) The Search function is used to identify TURCK multiprotocol device on the continuous physical network segment including layer 2 of the OSI model switches. The IP address 192.168.0.254 appears when the device is in the PGM-DHCP mode and DHCP client is active. The IP address transitions to 0.0.0.0 when DCHP server is started.
  • Page 12  Wait until DHCP server locates the device ( IP transitions to 0.0.0.0) Figure 2.7 – Device DHCP client active view  Highlight device  Click Change (F2)  Assign IP address  Click Stop DHCP (F6) button Figure 2.8 – IP Configuration After the IP address is assigned, the device responds with: Figure 2.9 –...

  • Page 13: Set Ip Address Using Web Server

     Enter current IP address of the device into a browser  If you don’t know what is current IP address, use TURCK Service Tool to discover device  Enter “password” into Login field to get administrator’s privilege. Figure 2.10 – Device Web server ...

  • Page 14: Bootp/Dhcp Utility

    2.5 BOOTP/DHCP utility The BOOTP/DHCP utility may be used while the device is in the PGM-DHCP mode on the first power-up. When the IP address is assigned, the device DHCP client becomes disabled. The procedure:  Start Rockwell DHCP server ...
  • Page 15  Enter new IP address in the New Entry dialog Figure 2.15 – IP address setup  Wait for confirmation – assigned IP address appears in the IP Address column Figure 2.16 – IP address assignment complete...
  • Page 16 — This page intentionally left blank —...

  • Page 17: Tben-Lh-8Iol Controls Reference

    3 TBEN-LH-8IOL Controls Reference 3.1 Device Overview The summary of the device installation guidance, connector’s assignment, power distribution and grounding requirements are as follows. 3.1.1 Dimensions and connector assignment Figure 3.1 – Connector assignment 3.1.2 Power connector pin assignment Figure 3.2 – X1 and X2 connector pinout 3.1.3 IO connector pin assignment...

  • Page 18: Power Supply

    3.1.4 Power supply ATTENTION! Wrong supply of IO-Link devices Damage to the electronics  The IO-Link devices must only be supplied with the voltage provided at the supply terminals of the TBEN ATTENTION! Connection of Class A devices to Class B ports Loss of the galvanic isolation ...

  • Page 19: Leds

    3.1.5 LEDs Figure 3.4 – LED assignment Figure 3.5 – Module LED behavior...
  • Page 20 Figure 3.6 – IO LED behavior...

  • Page 21: Io Data Map

    3.2 IO data map 3.2.1 General overview The default data size of the TBEN-LH-8IOL is:  292 Byte Input data size, (146INT)  296 Byte Output data size, (148INT) Figure 3.7 – IO data map overview...

  • Page 22: Input Data Map

    3.2.2 Input data map  Input data map overview Figure 3.8 – Input data map, overview  Input data map, word 0 Figure 3.9 – Input data map, word 0...
  • Page 23  Input data map, word 1 Figure 3.10 – Input data map, word 1...

  • Page 24: Output Data Map Overview

    3.2.3 Output data map overview Figure 3.11 – Output data map, overview...
  • Page 25  Output data map, word 0 Figure 3.12 –Output data map, word 0  Output data map, word 1 Figure 3.13 – Output data map, word 1...
  • Page 26  Output data map, word 2 Figure 3.14 – Output data map, word 2  Output data map, word 3 Figure 3.15 – Output data map, word 3...

  • Page 27: Application Requirements

    3.3 Application Requirements Figure 3.16 –TBEN-LH-8IOL application requirements Figure 3.17 – TBEN-LH-8IOL integration into RSLogix5000...

  • Page 28: Io-Link Port Setup

    3.4 IO-Link Port Setup 3.4.1 Open Web Server  Enter IP address of the deice into Web browser Figure 3.18 – Web server...

  • Page 29: Administrator Access

    3.4.2 Administrator access When someone is logged-in as an administrator, it gains the access to the device IP address setup, the parameters setup and other control functions. The administrator access is controlled by the password, which may be changed. The procedure: ...

  • Page 30: Iol Master Default Setup

    3.4.4 IOL Master Default Setup Refer to the TBEN-Lx…-8IOL User Manual for the description of the IO-Link master’s features and setup. The setup made by the Web server is saved in the device permanent memory. If the device is reset to the factory default values, the custom setup will be lost.

  • Page 31: Vaux Control

    3.4.5 VAUX Control The Vaux1 and Vaux2 power is controlled by the “VAUX control – Parameters” web page: Available options are:  0 = 24 VDC  1 = switchable  2 = off" Figure 3.22 –VAUX control page...
  • Page 32 — This page intentionally left blank —...

  • Page 33: Configure Tben-Lh-8Iol With Rockwell Plc

    “Volume 1, Common Industrial Protocol (CIP), Edition 3.22, by ODVA”. The procedure:  Download TBEN-LH-8IOL_R2.7.EDS file from the TURCK web site  In the RSLogix5000 menu bar, expand the Tools drop down menu and click on the EDS hardware Installation Tool Figure 4.1 –...

  • Page 34: Create A New Module

    4.1.2 Create a new module  In the Controller Organizer, right-click on Ethernet to access a drop-down menu.  Click New Module… to open the “Select Module Type” dialog page Figure 4.3 – Add new module  Enter the device name in the search area ...

  • Page 35: Configure Tben-Lh-8Iol Using Default Connection

    Figure 4.5 –New Module setup  Click “Change…” to open the “Module Definition” page, Figure 4.6  Use default connection “AB TBEN-LH-8IOL” ; select INT data format from the drop down menu, per Figure 4.6  Click OK to return to previous dialog page ...

  • Page 36: Configure Tben-Lh-8Iol_Qc_On Connection

    4.1.4 Configure TBEN-LH-8IOL_QC_ON Connection When the device is configured using a “TBEN-LH-8IOL_QC_ON” connection, the device is switched to the QuickConnect (QC) mode. The device is “Ready for Connection” at 100msec time after the device power cycle. The actual connection time depends on a controller setup and system architecture. The QC_ON connection is configured as follows: ...
  • Page 37  P2 port set as MDIX (cross-over connection)  Auto-Negotiate and Auto-MDX are disabled The TBEN-LH-8IOL QuickConnect operational time:  Ready-to-connect time = 100ms (time measured from the device power-up to the first ARP)  CIP connection time < 10ms NOTE The incoming Ethernet cable is always connected to P1 port.

  • Page 38: Configure Tben-Lh-8Iol_Qc_Off Connection

    4.1.5 Configure TBEN-LH-8IOL_QC_OFF Connection The “TBEN-LH-8IOL_QC_OFF” connection disables QC mode and restores the device Ethernet ports to:  Autonegotiate  Auto-MDIX  Follow the steps described in the section 4.1.2 to create a new module  Fill in the Name, Description and Ethernet Address of the device at the New Module dialog page Figure 4.10 –...

  • Page 39: Tben-Lh-8Iol Configuration Using Generic Device Profile

    4.2 TBEN-LH-8IOL configuration using generic device profile 4.2.1 Generic device configuration The procedure:  In the Controller Organizer, right-click on Ethernet to display a drop-down menu.  Click New Module to open the configuration page “Select Module Type”  Enter “Generic” in the search area, highlight the Generic Ethernet Module and click Create Figure 4.12 –...

  • Page 40: Generic Device And Qc_On Configuration

    4.2.2 Generic device and QC_ON configuration The procedure:  In the Controller Organizer, right-click on Ethernet to display a drop-down menu.  Click New Module to open the “Select Module Type” configuration page  Enter “Generic” in the search area, highlight the Generic Ethernet Module and click Create ...

  • Page 41: Tben-Lh-8Iol Configuration With Omron Plc

     Follow the dialog to install TBEN-LH-8IOL_R2.7.EDS file Figure 5.1 – Install EDS file menu  Expand TURCK Inc., Communications Adapter, in the Hardware List Window  Right--click at the TBEN-LH-8IOL, select Property pop-up menu  Verify device identity and EDS file property...

  • Page 42: Add Device To The Project

    Add Omron CJ1W-EIP21 Communication Adapter from the Hardware List Window, drag and drop into the new EtherNet/IP network  Select TURCK TBEN-LH-8IOL Communication Adapter from the Hardware List Window, drag and drop into the new EtherNet/IP network Figure 5.3 – Add new EtherNet/IP adapter ...

  • Page 43: Register Tag Sets

    The device supports multiple connection types. Those named “Omron” are used for configuration with Omron PLCs: Table 5.7 – Connection types Explanation of terms:  Omron Connection used by Omron PLC  TBEN-LH-8IOL Default connection  QC-ON Connection enables QuickConnect feature  QC-OFF Connection disables QuickConnect feature...

  • Page 44: Configure Tben-Lh-8Iol

    Right click at the controller to open pop-up menu  Highlight Parameter in the menu and select Edit  Drag and drop TBEN-LH-8IOL from the Unregister Device List into Register Device List  Click at New… button to open the Edit Connection configuration page ...

  • Page 45: Configure Tben-Lh-8Iol Using Qc-On Connection

    Right click at the controller to open pop-up menu  Highlight Parameter in the menu and select Edit  Drag and drop TBEN-LH-8IOL from the Unregister Device List into Register Device List  Click at New… button to open the Edit Connection configuration page ...

  • Page 46: Configure Tben-Lh-8Iol Using Qc-Off Connection

    Right click at the controller to open pop-up menu  Highlight Parameter in the menu and select Edit  Drag and drop TBEN-LH-8IOL from the Unregister Device List into Register Device List  Click at New… button to open the Edit Connection configuration page ...

  • Page 47: Resources

    6 Resources 6.1.1 IO-Link master user manuals, data sheets, IODDs  TBEN-Lx-8IOL https://pdb2.turck.de/us/DE/products/000000170001d3a7000a003a https://pdb2.turck.de/us/DE/products/0000001600019e750008003a  TBEN-S2-4IOL https://pdb2.turck.de/us/DE/products/0000003100008dc50003003a 6.1.2 IO-Link slave devices  The data sheets, configuration files, user manuals https://www.turck.us/en/iolink-2577.php 6.1.3 FLC controller  ARGEE https://pdb2.turck.de/us/DE/products/000000370002b2930005003a  IO-Link IODDs https://pdb2.turck.de/us/DE/groups/0000000600003a8a00010023...
  • Page 48 For Application Assistance or for the location of your nearest TURCK distributor, call: 1-800-544-7769 Specifications in this manual are subject to change without notice. TURCK also reserves the right to make modifications and makes no guarantee of the accuracy of the information contained herein.
