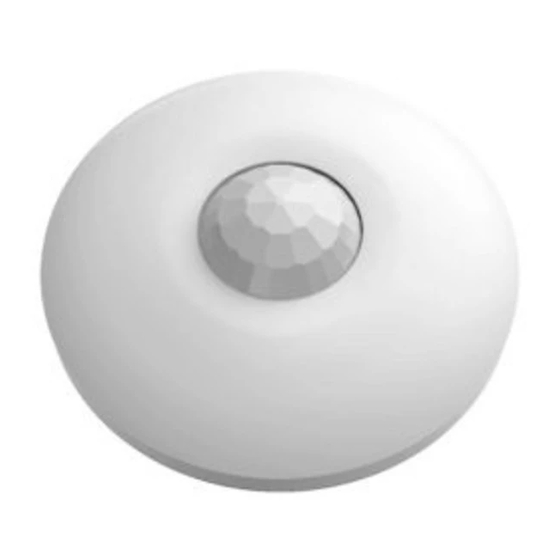

HIKVISION DS-PDCL12DT-EG2 User Manual

DS-PDCL12DT-EG2
Wired Dual-Tech Ceiling Detector
User Manual
EN 50131-2-4:2020
EN 50131-1+A1+A2+A3
Environment Class II
Security Grade2
Tested by TÜV Rheinland
English
Appearance
1. PIR sensitivity jumper 2. LED jumper 3. Alarm pin 4. Terminals
5. Tamper pin 6. Tamper 7. PIR sensor 8. LED indicator
9. Microwave sensor
Installation
Resistor Wiring
Relay Status
Normal PIR & Microwave Alarm PIR Fault Microwave Fault Tamper
Alarm Relay Close Open Open Close Close
Method 1: Use the jumper to select EOL (End of Line) resistance on
TAMPER/ALARM pins.
Method 2: Add the resistor to TAMPER/ALARM wiring ports.
Note: If EOL wiring is not used, leave the jumpers OFF. Do not force the
jumper if it is not matched the pin. Method 1 & 2 should not be used on the
ALARM/TAMPER at the same time.
a. Alarm Resistance: 1K, 2K2, 4K7, 5K6, 6K8
b. Tamper Resistance: 1K, 2K2, 4K7, 5K6
Connection Type
Note: The resistor must be connected in series with one end of the detector.
a. Normally Closed
b. Single End of Line Wiring
c. Double End of Line Wiring
5 Detection Range
Powering On
6
After powering on, the indicator flashes rapidly. Once the detector self test is
completed, the LED indicator will go out until the detector detects movement.
Specification
Detection method Passive Infrared, Microwave
Detection range 12 m
Detection angle 360°
Detection zones 172
Detectable speed 0.3 to 2 m/s
Sensitivity Auto, Low
White light filter 6500 lux
Microwave frequency 24 GHz(24 to 24.25 GHz)
Digital temperature compensation Support
Creep zone protection Support
Digital processing Support
Sealed optics Support
Tamper protection Front
Green(PIR), Red(Microwave),
LED indicator
Blue(Alarm)
Power consumption 100 mA Max
Power supply 9 to 16 VDC
Typical voltage 12 VDC
Operation temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation humidity 10% to 90%
Dimension φ120 mm x 33.2 mm
Weight 138 g
Mounting height 2.4 to 4 m
Mounting method Ceiling
Application scenario Indoor
Please use the power supplies comply with the requirements of EN 50131-6 at
the appropriate grade and environmental class.
Please do not obscure the detector's field of view partially or completely.
UD26464B
1
33.2 mm
2
1 2
3
4
a
-
+
2.2K
2.2K
- +
TAMPER ALARM
TAMPER ALARM
1K 1K
EOL EOL
2K2
2K2
4K7
4K7
5K6 5K6
6K8
c
TAMPER
TAMPER ALARM
1K
EOL EOL
2K2
4K7
5K6
Hangzhou Hikvision Digital Technology CO.,Ltd. No.555 Qianmo Road, Binjiang District, Hangzhou 310052, China
3
KA3 × 25
5
-
b +
6m
- +
4m
TAMPER ALARM
TAMPER ALARM
1K 1K
EOL EOL
2K2 2K2
2m
4K7 4K7
5K6
5K6
6K8
0m
2m
-
+
4m
6m
- +
ALARM
1K
2K2
4K7
5K6
6K8
1
2
3
4
5
ALARM
a
= TAMPER
1K
EOL
2K2
4K7
5K6
6K8
TAMPER
b
TAMPER
1K
=
EOL
2K2
4K7
5K6
Zone:172 Plane:3
6m 4m 2m 0m 2m 4m 6m
2.4m
3m
4m
8m
10m
12m
9
8
7
6
-
+
ALARM
EOL
2.2K
-
+
ALARM
EOL
2.2K
