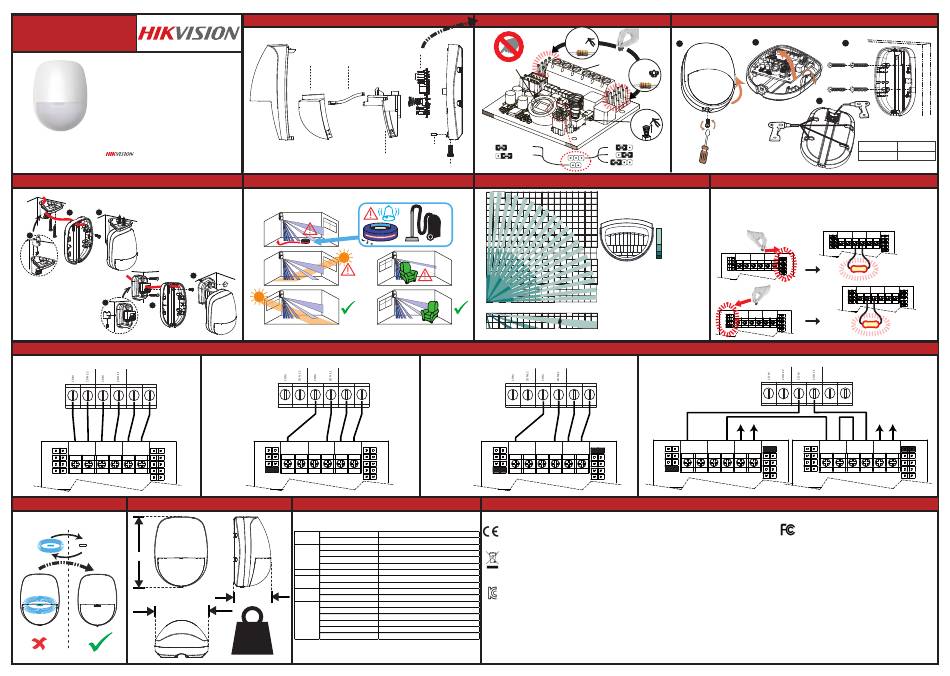

HIKVISION DS-PDP18-EG2 Quick Manual

DS-PDP18-EG2

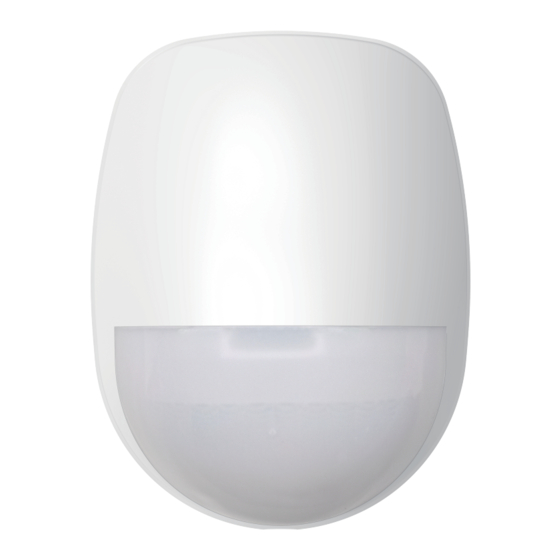

18 m Digital PIR Detector
COPYRIGHT ©2019 Hangzhou Hikvision Digital Technology Co., Ltd.
ALL RIGHTS RESERVED.
Any and all information, including, among others, wordings, pictures,
graphs are the properties of Hangzhou Hikvision Digital Technology
Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision").
This user manual (hereinafter referred to be "the Manual") cannot be
reproduced, changed, translated, or distributed, partially or wholly,
by any means, without the prior written permission of Hikvision.
Unless otherwise stipulated, Hikvision does not make any warranties,
guarantees or representations, express or implied, regarding to the
Manual.
About this Manual
This Manual is applicable to the 18 m Digital PIR Detector.
The Manual includes instructions for using and managing the
product. Pictures, charts, images and all other information
hereinafter are for description and explanation only. The information
contained in the Manual is subject to change, without notice, due to
firmware updates or other reasons. Please find the latest version in
EN50131-2-2:2017
the company website (http://overseas.hikvision.com/en/).
EN50131-1:2006+A1:2009+A2:2017
Please use this user manual under the guidance of professionals.
Security Grade (SG) 2 Trademarks Acknowledgement and other Hikvision's
trademarks and logos are the properties of Hikvision in various
Environment Class (EC) II
jurisdictions. Other trademarks and logos mentioned below are the
properties of their respective owners.
4 Installation Method - Bracket Installation
(1) Ceiling Bracket Fitting
2 3
1
(2) Wall Bracket Fitting
3
1
2
8 Choose the Connection Type
(1) Normally Closed a. Alarm Control Panel
-
+
- +
TAMPER ALARM
TAMPER ALARM
5K6 1K
EOL EOL
4K7 2K2
2K2 4K7
1K 5K6
8K2
b. Detector
9 Powering up 10 Dimension and Weight
After powering on, the indicator flashes rapidly. Once the
detector self test is completed, the LED indicator will go
out until the detector detects movement.
86.8 mm
65.4 mm
NOT READY READY
1 Disassembling the Detector
(a) Lens (b) LED Light Pipe
(c) Lens Holder
5 Installation Hints
(2) Single End of Line Wiring a. Alarm Control Panel
-
+
The connection shows
the example:
1. Normal: 1K
2. Alarm: Infinite
3. Tamper: 0 K
- +
TAMPER ALARM
TAMPER ALARM
5K6 1K
EOL EOL
4K7 2K2
2K2 4K7
1K 5K6
8K2
b. Detector
11 Technical Specification
Maximum detection angle 85.9°
Lens
Maximum detection distance 18 m
PIR sensitivity High, Auto, Low
Tamper Front panel supports
Key Function
Creep Zone Protection Supported
Anti-insect interference Tight optical cavity structure
Appearance LED Status indicator, blue,
Tamper interface 2
Interface
Alarm interface 2
Installation height
1.8 m to 2.4 m，recommended 2.2 m
Installation
45.5 mm
Installation mode Wall or Ceiling
Detection 0.3 ~ 2 m/s
Operating voltage 9 to 16 VDC (Standard 12 VDC)
Current consumption < 20 mA (12 VDC)
Others
Operating temperature -10 °C to 40 °C (14 °F to 104 °F)
Weight 68 g (2.4 oz)
68 g
Dimension (H × W × D) 86.8 mm × 65.4 mm × 45.5 mm (3.4'' × 2.6'' × 1.8'')
(2.4 oz)
2 The Printed Circuit Board（PCB）
(b) Tamper
Resisitor Headers
5K6, 4K7,
2K2, 1K
(d) PCB
(a) PIR Sensor
(f) LED ON/OFF
LED ON
(e) Nut
LED OFF
(f) Casing Screw
6 The 18 m Lens
18m
16m
14m
12m
10m
8m
6m
4m
2m
1m
1m 2m 4m 6m 8m 10m 12m 14m 16m 18m
2.4m
1m 2m 4m 6m 8m 10m 12m 14m 16m 18m
(3) Double End of Line Wiring a. Alarm Control Panel
-
+
The connection shows
the example:
1. Normal: 1K
2. Alarm: 2K
3. Tamper: 0 K or infinite
- +
TAMPER ALARM
TAMPER ALARM
5K6
EOL EOL
4K7
2K2
1K
b. Detector
This product and - if applicable - the supplied accessories too are marked with
"CE" and comply therefore with the applicable harmonized European
standards listed under the EMC Directive 2014/30/EU, the LVD Directive
2014/35/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be
disposed of as unsorted municipal waste in the European Union. For proper
recycling, return this product to your local supplier upon the purchase of
equivalent new equipment, or dispose of it at designated collection points.
For more information see: www.recyclethis.info
Class B: This device is intended for mainly home use (Class B) and may be
used in all areas
B급 기기: 이 기기는 가정용(B급) 전자파적합기기로써 주로 가정에서
사용하는 것을 목적으로 하며, 모든 지역에서 사용할 수 있습니다.
3
Installation Method - Detector Backplane Installation
2
1
(c) Terminals
(d) Alarm
Resistor Headers
1K, 2K2,
4K7, 5K6, 8K2
(e) Tamper
Spring
(g) Sensitivity Settings
LOW
AUTO (Default)
HIGH
7 Resistor Wiring
The detector has two method for resistor wiring:
(1) Using headers to select the End of Line resistance (Control panel dependent) on the ALARM/TAMPER header pins.
(2) Select an resistance (Control panel dependent), and add the resistor to ALARM/TAMPER wiring ports of the detector.
Note: If EOL (End of Line) wiring is not used, leave the headers OFF. If the headers and the header pins does not
match, do not force the header, please select the method 2 to wire the resistor. Method 1 and method 2 should not
be used on the ALARM/TAMPER at the same time.
(a) Detection Range
85.9°
52 zones
4 planes
- +
TAMPER ALARM
TAMPER ALARM
5K6
EOL EOL
4K7
2K2
1K
(b) Mounting Height
- +
TAMPER ALARM
TAMPER ALARM
5K6
EOL EOL
Mounting height range from 1.8 m to 2.4 m.
4K7
2K2
The recommended mounting height is 2.2 m.
1K
(4) Two Double End of Line Detectors to One Input a. Alarm Control Panel
-
+
- +
TAMPER ALARM
TAMPER ALARM
5K6 1K
1K
EOL EOL
4K7 2K2
2K2
2K2 4K7
4K7
1K 5K6
5K6
8K2
8K2
b1. Detector 1
IC Information
CLASS B: CAN ICES-3 (B)/NMB-3(B)
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its
gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not
more than that necessary for successful communication.
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut
fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé
pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et
son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse
pas l'intensité nécessaire à l'établissement d'une communication satisfaisante.
This equipment should be installed and operated with a minimum distance 20cm
between the radiator and your body.
Cet équipement doit être installé et utilisé à une distance minimale de 20 cm entre le
radiateur et votre corps.
4
3
Screw Model number
4
PA_3.5 ×25
(a) Alarm
TAMPER - + ALARM
Resistance
TAMPER ALARM
5K6 1K
EOL EOL
4K7 2K2
1K,
2K2 4K7 2K2,
1K 5K6
4K7,
8K2
5K6,
8K2
1K
=
2K2
4K7
1K
5K6
8K2
(b) Tamper TAMPER - + ALARM
TAMPER ALARM
5K6 1K
Resistance EOL EOL
4K7 2K2
2K2 4K7
5K6,
1K 5K6
4K7,
8K2
2K2,
=
1K
1K
2K2
4K7
1K
5K6
8K2
-
+
-
+
- +
TAMPER ALARM
TAMPER ALARM
5K6 1K
EOL EOL
4K7 2K2
2K2 4K7
1K 5K6
8K2
b2. Detector 2
FCC Information
Please take attention that changes or modification not expressly approved by
the party responsible for compliance could void the user's authority to operate
the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
—Consult the dealer or an experienced radio/TV technician for help.
This equipment should be installed and operated with a minimum distance 20cm between
the radiator and your body.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation
UD13284B
