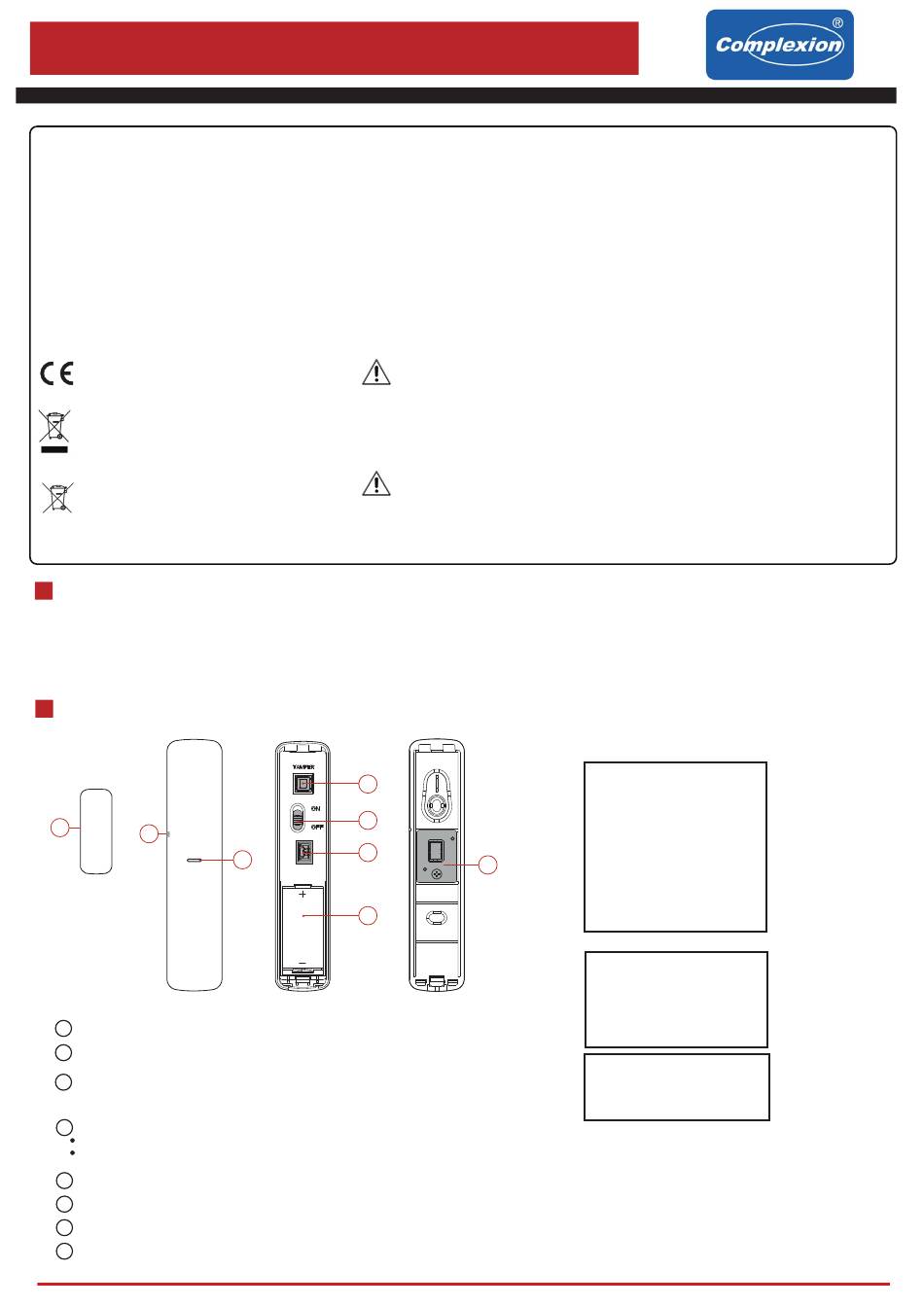

Introduction
The sensor can detect the door or window opening. When the door or window is open, an alarm will be triggered and it will be sent to the alarm center or mobile client
via security control panel.
Door Magnetic Sensor Alarm: When the distance between the sensor and the magnet is longer than 3 cm, an alarm will be triggered. The indicator will flash once.
Tamper Alarm: When removing the sensor, an alarm will be triggered.
2
Appearance
1
2
1 Magnet
2
Positioning Line
3
Indicator
Alarm Detection: Red LED flashes.
Detector Formatted: Red LED flashes 3 times.
4 TAMPER Button
Tampering Alarm: If the detector is disassembled, an alarm will be triggered.
Formatting: Restore the device to default settings.
5
Power Switch
6
External Input
7
Battery
Shock Sensor
8
BATTERY CAUTION
-Risk of explosion if the battery is replaced by an incorrect type.
-Improper replacement of the battery with an incorrect type may defeat a safeguard (for example, in the case of some
lithium battery types).
-Do not dispose of the battery into fire or a hot oven, or mechanically crush or cut the battery, which may result in an
explosion.
-Do not leave the battery in an extremely high temperature surrounding environment, which may result in an
explosion or the leakage of flammable liquid or gas.
-Do not subject the battery to extremely low air pressure, which may result in an explosion or the leakage of
flammable liquid or gas.
-Dispose of used batteries according to the instructions.
+identifies the positive terminal(s) of equipment which is used with, or generates direct current. - identifies the
negative terminal(s) of equipment which is used with, or generates direct current.
INSTALLATION CAUTION
-Install the equipment according to the instructions in this manual.
-To prevent injury, this equipment must be securely attached to the floor/wall in accordance with the installation
instructions.
-The additional force shall be equal to three times the weight of the equipment but not less than 50N. The
equipment and its associated mounting means shall remain secure during the installation. After the installation, the
equipment, including any associated mounting plate, shall not be damaged.
-No naked flame sources, such as lighted candles, should be placed on the equipment.
4
5
6
3
7
CAUTION
CHEMICAL BURNING DANGER
DO NOT SWALLOW THE
BATTERY
KEEP NEW AND USED
BATTERIES AWAY FROM THE
CHILDREN.
8
IF YOU THINK BATTERIES MIGHT
HAVE BEEN SWALLOWED OR
PLACED INSIDE ANY PART OF
THE BODY, SEEK IMMEDIATE
MEDICAL ATTENTION.
CAUTION
RISK OF EXPLOSION IF BATTERY
IS REPLACED BY AN INCORRECT
TYPE.
REPLACEMENT OF A BATTERY
WITH AN INCORRECT TYPE THAT
CAN DEFEAT A SAFEGUARD.
CAUTION
DISPOSE OF USED BATTERIES
ACCORDING TO THE INSTRUC-
TIONS AND LOCAL REGULATION.
1
