HIKVISION DS-PD2-P10P-W Manual

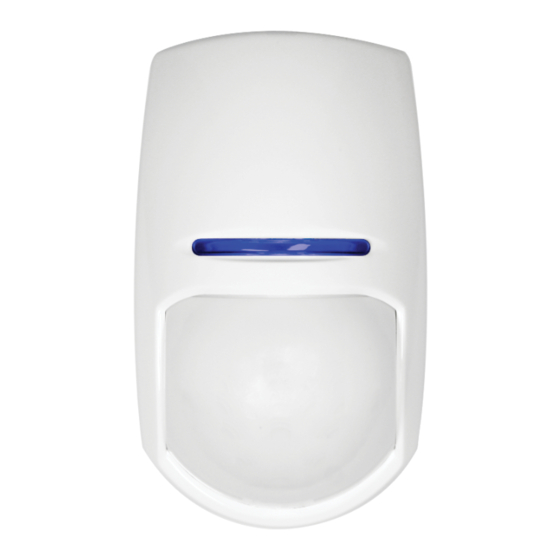

DS-PD2-P10P-W
Wireless 10m Pet Immune PIR Detector
This product and - if applicable - the supplied accessories too are marked with
"CE" and comply therefore with the applicable harmonized European

Diagram References

1

REGISTRATION

powered on.
2

DIAGNOSTICS (Check Signal Strength before Mounting)

Note: We also recommend doing a Walk Test of the system once
the detector is mounted (ENGINEER TESTS menu).
3 OPTIONAL WIRED TAMPER & OPTIONAL BRACHETS
4

CHANGE INPUTS (PROGRAM INPUTS)

Lens characteris cs
Detec on Range 10m
Detec on Angle 85°
Detec on Zones 5 planes and 52 zone
Detec on Speed 0.3 - 3.0 m/s
Moun ng Height 1.8-2.4m

Key features

Animal immunity 25kg
Blue Wave technology yes
Digital temperature compensa on yes
Tamper protec on Front and rear
Signal Strength Indicators (SSI) yes
Electrical & ba ery
Transmission frequency
433 MHz
Range in open space 800m
3V lithium ba ery included 1x CR123A
Minimum ba ery life (years) 2

Environment features

Opera ng temperature -10°C /+40°C
Weight 125g
Dimensions 117 x 69 x 50mm
Direct light lter 6500 Lux
Cer ca on and warranty
Electrical conformity CE
Warranty 2 years

Accessories

Ceiling mounted bracket included yes
Wall mounted bracket included yes
The Volumetric Lens
HORIZONTAL COVERAGE
10m
85 °
56 zones
9m
6 planes
8m
7m
6m
5m
4m
3m
<25kg
2m
1m
1m 3m 4m 5m 6m 7m 10m
2m 8m 9m
VERTICAL COVERAGE
2.4m
Mount at 2.1m
for INCERT
compliance
1m 3m 4m 5m 6m 7m 8m 9m 10m
2m
When disposing of the pro ry must be removed
and disposed of separately in accordance with the local regul ons.
START
HIGH
+ +
+ +
LOW
+ +
+ +
1
Registering via Security Control Panel
Control Panel
Register Detector
Note: The distance between the security control panel and the detector
should be less than 50 cm.
2
3
.
A
B
LED ON LED OFF TAMPER
HIGH
LOW
Unregister Detector
Delete the Detector from the Control Panel
thr ternately.
thr together.
5s
+
-
BRACKETW
(Wall)
C E
D
CR123A
+ -
LITHIUM
B ATTERY
+
-
Registering via APP
1
1
Log in to the APP Store and input "Hik-Connect" to search the mobile client.
2
Download and install Hik-Connect to your phone.
3
4 Power on the security control panel.
5
Log in the Hik-Connect and ap the icon "+" at the upper-right coner of the Hik-Connect page to
add the security control panel. You can scan the QR code on the device rear panel or on the
package box, or input the device serial No. manually to add the device.
6
7
<25kg
>25kg
BRACKETC
(Ceiling)
B C
A
=
REAR TAMPER
See Sec
=
LEARN
REAR TAMPER
BREAK - OUT
4
END
