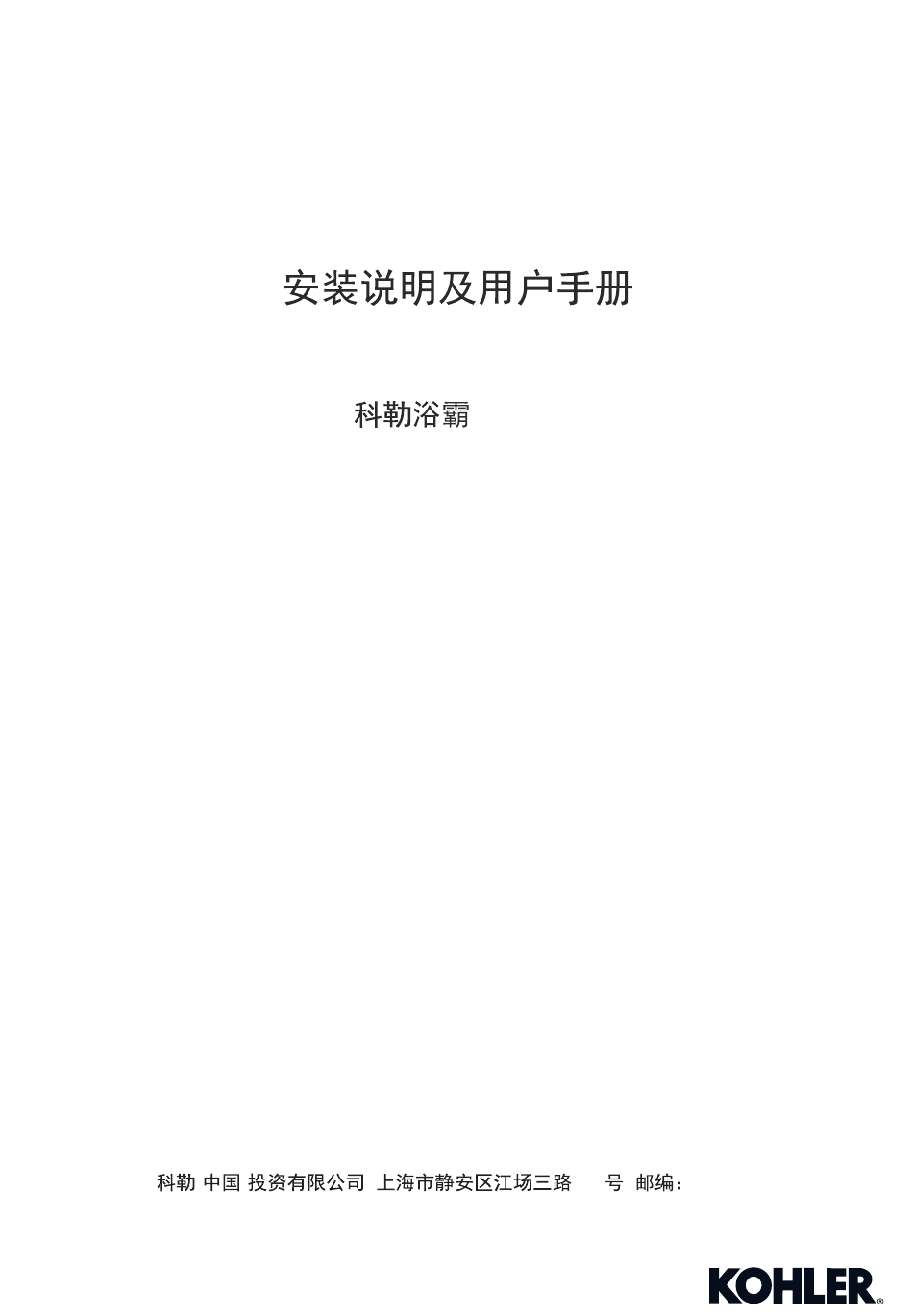

- Page 1 Installation and Homeowners Guide Underscore Bathroom Heater S300G S300G K-77404T-G-0 KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 1324694-T01-C...
-
Page 2: Before You Begin
Percussion Drill Pen Knife Wrench ROUGHING-IN Reference Value Unit: mm Junction Box Cover Ventilation Outlet Hot Air Outlet Kohler reserves the right to change marked dimensions without prior notice. © Copyright Kohler China Investment Co., Ltd. 2017 1324694-T01-C © 2017... -
Page 3: Specifications
SPECIFICATIONS Model K-77404T-G-0 K-77404T-G-0 Voltage/Frequency 220V~/50Hz 220V~/50Hz Rated Input Power 2150W 2150W Heater Power 2130W 2130W Fan Power Ventilation Power Ventilation Volume 2.2m /min 2.2m /min Ventilation Noise 43dB 43dB IPX2 (Bathroom Heater) IPX2 ( Ingress Protection IPX4 (Wall Controller) IPX4 ( SIMPLIFIED DIAGRAM OF THE UNIT Expansion Pipe... -
Page 4: Wiring Diagram
WIRING DIAGRAM Wall Controller YELLOW YELLOW BLUE MOTOR YELLOW/GREEN 220V YELLOW 50Hz CAPACITOR ALL-POLE SWITCH (OPTIONAL) THERMOSTAT LIGHT THERMAL FUSE BROWN NOUT STEPPER MOTOR THE RATE OF THE POWER SWITCH HEATER BLUE BLUE MUST NOT BE LOWER THAN 250V 16A PINK OVER CURRENT FUSE YELLOW... -
Page 5: Preparations Before Installation
PREPARATIONS BEFORE INSTALLATION A. Preliminary Installation 1. Drill the hole of the Outlet Window Fix the positon of outlet window hole (above the suspended ceiling and below the bathroom heater outlet to prevent the water from coming back to the machine via the pipe), and then drill a round hole on the wall. -
Page 6: Packing List
Take out the bathroom from package. Bathromm Heater C. Packing List 1322379 1285547 Fixed Column Assy. 80 Air Outlet Window Expansion Pipe 1285548 80 Air Exhaust Pipe M6 Screw Rod Note: Initial Length:275mm Stretch Length: 1300mm 275mm 1300mm 1285549 Clamp 1322380 1322383 Lock Assy. -
Page 7: Installation
INSTALLATION Caution before installation: 200mm The installed product must be 200mm or above away from curtains or other combustible materials. 200mm The distance between the ceiling where the product is mounted and the roof shall be 200mm or above. 300mm Ensure that the gap between the product edge and the wall is 300mm or above. - Page 8 Step Two: According to the position of the labelled boom, fix the M6 screw rod on the cerement board, and attach the hanger to the M6 screw rod. (The hanger is required to flatten the plasterboard, shown as the below figures) M6 Butterfly Nut Plasterboard Ceiling 6 Washer...
- Page 9 Step Five: Put the ventilation outlet assembly onto the plasterboard celling, and push the machine into the install hole. Hang the ventilation outlet hook over the rut inside the machine body. Put the hanger inside the flanged sinking groove of the machine.
- Page 10 2. Installation of Main Body for Plaster Ceiling Method Two Note: Plaster ceiling should afford 25kg in load at least. 25kg Suggestion: The gap between the keels should be above 400mm 400mm to accommodate the battens. Step one: 30mm*30mm 30mm*40mm Place a batten (suggested size - 30mm*30mm or 450mm 30mm*40mm, and 450mm in length) on the two sides of...
- Page 11 Step Four: Take down the wiring cover plate. Insert the power cord and 2 signal lines into the wire terminals. Tighten the terminal screws and fix the lines. Finally, mount the wiring cover plate. Wire Box Cover Signal Line Power Cord Terminal Step Five: Put the ventilation outlet assembly onto the plasterboard...
- Page 12 Step Seven: M4*10 Install the panel and tighten the two M4*10 screws, which were disassembled in Step Three, to fix the panel and the body. (Installation Finished) Plasterboard Ceiling M4*10 M4*10 Screw(Two) 3. Installation of Main Body without Suspended Ceiling Step One: Take out the install template.
- Page 13 Step Three: Remove two M4 screws and panel from the side surfaces of the machine (by pushing the panel shaft from one end where there is a hatch hinge, and push the other end next). BTP4*10 (4 ) Panel Shaft Panel Shaft Hinge Decorative Screw Case...
-
Page 14: Wall Controller Installation
Step Six: Tighten the M6 screw to install the machine body. Use one ST4.2*10 tapping screw to fix the machine and ventilation ST4.2*10 outlet assembly. Next, cover the decorative screw case. ST4.2*10 Self-tapping Screw(One) ST4.2*10 (1 ) Step Seven: M4*10 Install the panel and tighten the two M4*10 screws, which were disassembled in Step Three, to fix the panel and machine. -
Page 15: Button Function
USER'S GUIDE A. Button Function Heater: Turn on/off or switch to the heater mode. " " " " Fan: Turn on/off or switch to the fan mode. " " " " Ventilation Turn on/off or switch to the ventilation mode. "... -
Page 16: Important Consumer Information
6. All installation staff should be well familiar with installation instruction. Notice: Troubleshooting needs to be done by professional of KOHLER CHINA. Users are not suggested to do this without help. Please remember that the checking and repairs done by users themselves could easily cause damage to the machine or cause physical harm to the person.
