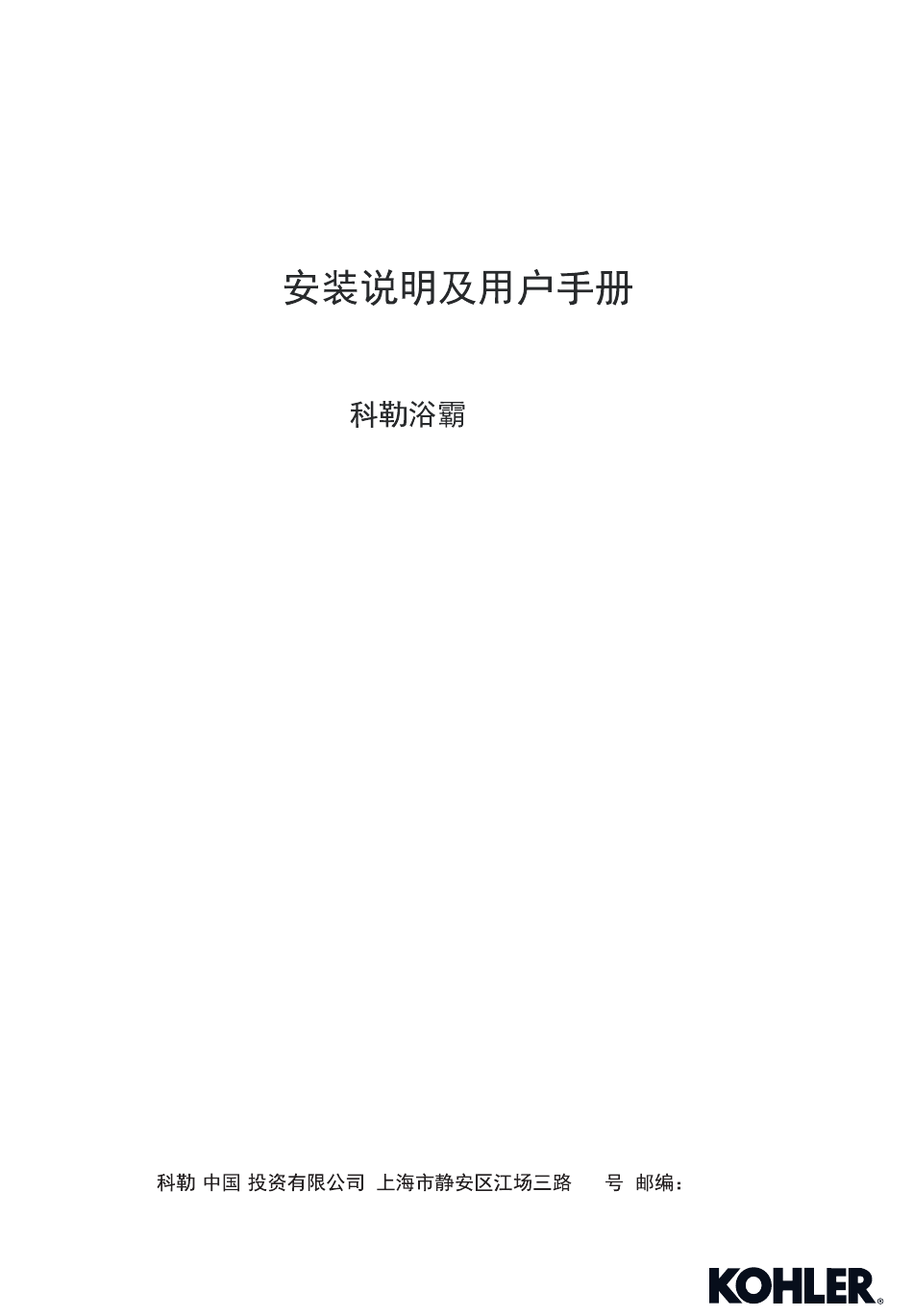

- Page 1 Installation and Homeowners Guide Veil Bathroom Heater S600G S600G K-21463T-G-0(Aircare) K-21463T-XG-0(Cloud) K-21465T-G-0 KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 1373009-T01-A...
-
Page 2: Before You Begin
Percussion Drill Pen Knife Wrench ROUGHING-IN Reference Value Unit: mm Hot Air Outlet Ventilation Outlet Junction Box Cover Kohler reserves the right to change marked dimensions without prior notice. © Copyright Kohler China Investment Co., Ltd. 2018 1373009-T01-A © 2018... -
Page 3: Specifications
SPECIFICATIONS K-21463T-G-0/K-21463T-XG-0/ K-21463T-G-0/K-21463T-XG-0/ Model K-21465T-G-0 K-21465T-G-0 Voltage/Frequency 220V~/50Hz 220V~/50Hz Rated Input Power 2750W 2750W Heater Power 2731W 2731W Fan Power Dry Clothing Power 2600W(Hot)/60W(Cool) 2600W( )/60W( Ventilation Power Air-care Power 31W(K-21463T-G-0/K-21463T-XG-0 Only 31W( K-21463T-G-0/K-21463T-XG-0) Lighting Power 19W 2 (108pcs 0.2W) 19W 2 (108 0.2W) - Page 4 K-21465T-G-0 HOT MOTOR BLUE YELLOW/GREEN CAPACITOR OVER CURRENT FUSE 220V 50Hz BLUE THERMOSTAT THERMAL FUSE VENT MOTOR BLUE CAPACITOR ALL-POLE SWITCH (OPTIONAL) HEATER 1 BROWN BLUE HEATER 2 BROWN WHITE STEPPER MOTOR THE RATE OF THE POWER SWITCH GRAY BLUE...
-
Page 5: Preparation Before The Installation
PREPARATIONS BEFORE INSTALLATION A. Preparation before the installation 1. Open the hole of outlet window Make sure that the outlet window s position (it should be lower than the outlet of the bathroom heater to prevent the water come back to the bathroom heater from the outlet window), and open a round hole on the wall. -
Page 6: Packing List
1367443 Remote Control Assy. BTP4 8 Triangular Self Tapping Screw Remote Control Base Assy. BTP4 8 Base 1373457 Heater Accessories Assy. Remote Control (Only K-21465T-G-0) Hanger ( K-21465T-G-0) M4*25 Screw Triangular Cover 6 Plastic Self-tapping Screw Expansion Pipe BTP4*8 1373009-T01-A... -
Page 7: Installation
1367442 1373458 Remote Control Assy. Wooden Bar Remote Control Base Assy. Base Remote Control (Only K-21463T-G-0/ 1373401 K-21463T-XG-0) M4*25 Screw Installation Template S600G ( K-21463T-G-0/ S600G K-21463T-XG-0) Cover 6 Plastic Expansion Pipe INSTALLATION Caution before installation: 200mm The installed product must be 200mm or above away from curtains or other combustible materials. - Page 8 1. Installing the Main Body Method 1 Plasterboard Ceiling. ° (1) Bend the installation template to 90 at the bending line. Push the template to the marked location. Bending Line Install Template Installation Hole Plasterboard Ceiling Ventilation Cement Board Outlet Assy. Marked Hole Install Template (2) Plug the M6 screw rod on the cerement board and...
- Page 9 (3) Demount five decorative screw covers. 5pcs Decorative Screw Cover (4) Fix the power cord to the bathroom heater Remove the screw on the wiring cover plate. (II) Open the wiring cover plate. (II) (III) Lift the terminal protection cover. (III) (IV) Loosen the screw fixing the power cord clip.
- Page 10 (6) After the bathroom heater is fully inserted into the hole. Fix the hanger with the heater by using 8 BTP 4*8 BTP4*8 triangular self-tapping screws. Finally, put back the (8pcs) decorative screw covers. (5pcs) Plasterboard Panel Base Clinging to Plasterboard Panel Base Decorative Screw Cover...
- Page 11 2) Make the holes at the marked position. Cement Board Suspender (2) Demount five decorative screw covers. and install the (5pcs) ventilation outlet assembly first with 1 ST 4.2*8 self- ST4.2*8 (1pc) tapping screw. Decorative Screw Cover ST4.2*8 Self-tapping Screws ST4.2*8 (1 ) (3) Fix the hangers to the heater with 8 BTP 4*8 self-...
- Page 12 INSTALLATION OF REMOTE CONTROLLER HOLDER INSTALLATION OF REMOTE CONTROLLER HOLDER NOTE: If the wall for installation is made of special material (such as wood board, density board and etc.), suitable fixing methods shall be adopted. NOTE: The place to install the remote controller shall not be easily splashed by water.
-
Page 13: Button Function
B. Paring Please press "Light" and "Light Off" together within 3 minutes after connecting to power source. If "Beep, Beep, Beep" can be heard and the LED light is on, it means paring is successful. C. Button Function DOWN : Timer Down/Temperature Down. UP : Timer Up/Temperature ON. - Page 14 During the standby mode, press any button to the K-21463T-G-0/K-21463T-XG-0 activated mode , K-21463T-G-0/K-21463T-XG-0 will display room temperature and humidity, K-21465T-G-0 K-21465T-G-0 "00:00" will display "00:00". Display will be turned off if not any further action is taken with 10 seconds.
-
Page 15: Troubleshooting
TROUBLESHOOTING Problem Diagnosis Solution Bathroom Heater does not A. A power failure occurred. A. Wait until the power is restored. work. B. The power cord is disconnected. B. Connect the power cord into the junction box of bathroom heater. C. Circuit breaker is in the "Off" position. C. -
Page 16: Important Consumer Information
6. All installation staff should be well familiar with installation instruction. Notice: Troubleshooting needs to be done by professional of KOHLER CHINA. Users are not suggested to do this without help. Please remember that the checking and repairs done by users themselves could easily cause damage to the machine or cause physical harm to the person.
