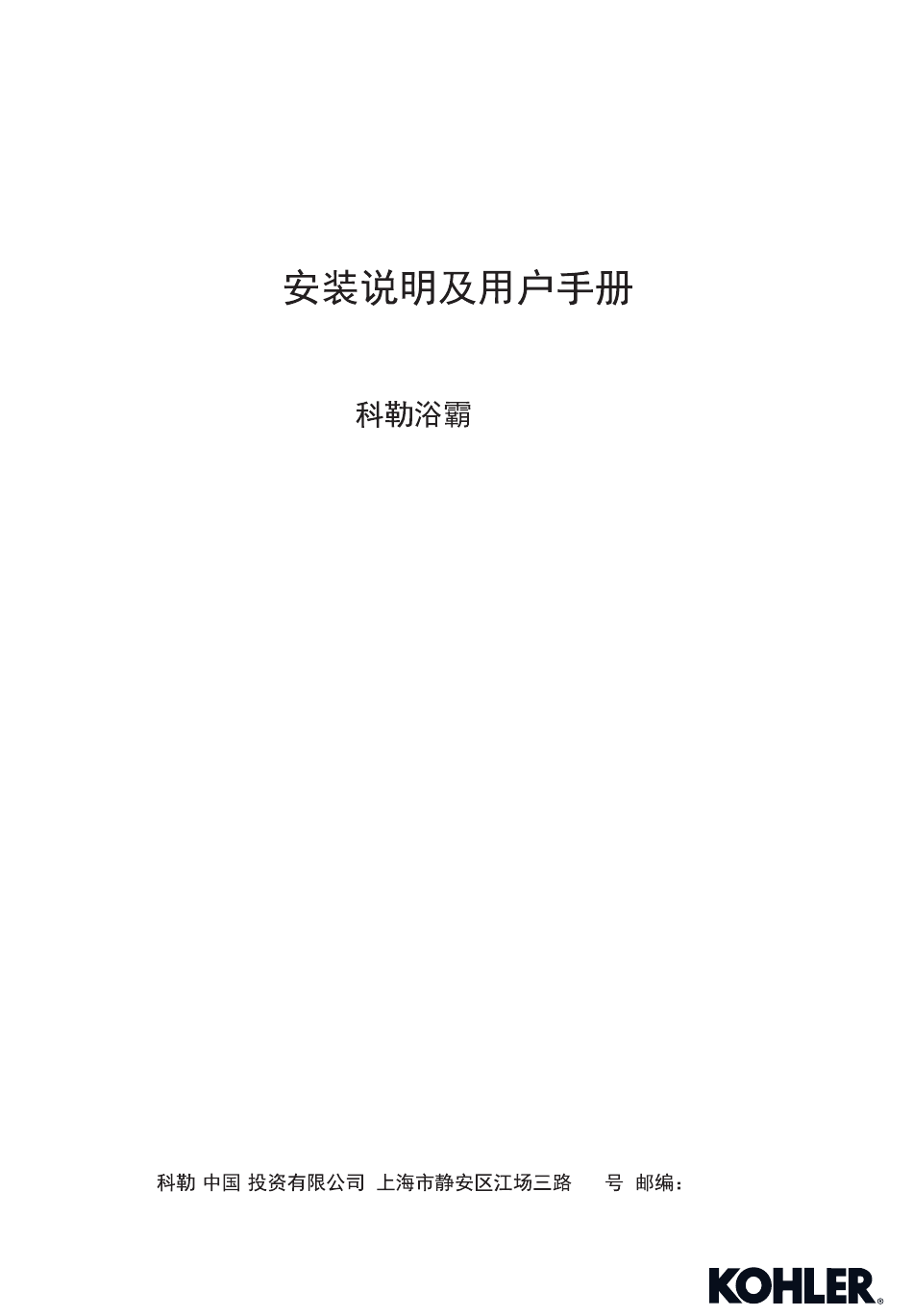

- Page 1 Installation and Homeowners Guide Veil Bathroom Heater S300P S300P K-24620T-0 KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 1374353-T01-A...
-
Page 2: Before You Begin
Unit: mm Ventilation Outlet 268 289 Hot Air Outlet Inlet(where filter mat is installed) Kohler Logo Junction Box Cover Kohler reserves the right to change marked dimensions without prior notice. © Copyright Kohler China Investment Co., Ltd. 2019 1374353-T01-A © 2019... -
Page 3: Specifications
SPECIFICATIONS Model K-24620T-0 K-24620T-0 Voltage/Frequency 220V~/50Hz 220V~/50Hz Rated Input Power 2150W 2150W Heater Power 2137W 2137W Fan Power Dry Clothing Power 2137W(Hot)/35W(Cool) 2137W( )/35W( Ventilation Power Lighting Power 13W 2 (72pcs 0.2W) 13W 2 (72 0.2W) Ventilation Volume 3.0m /min m /min Ventilation Noise 44dB... -
Page 4: Preparation Before The Installation
WARNING Conductor Make sure the power cord installed firmly, Earth otherwise it may catch fire. (Unit: mm) Power Cord There's no risk of damage to the insulation of power cord. Terminal Copper cord must be inserted into the pillar terminal hole, and make sure all the cords under the terminal are inserted into the pillar terminal completely. -
Page 5: Packing List
Take out the bathroom from package. Bathromm Heater C. Packing List 1367446 1322379 100 Air Outlet Window Fixed Column Assy. (2pcs) (2 ) Expansion Pipe 1374343 M6 Screw Rod 100 Air Exhasut Pipe Note: Initial Length: 150mm Stretch Length: 2200mm 150mm 2200mm 1285553... -
Page 6: Installation
1367691 1367690 Heater Accessories Assy. Installation Template S300 Hanger Triangular Self-tapping Screw BTP4*8 INSTALLATION Caution before installation: 200mm The installed product must be 200mm or above away from curtains or other combustible materials. The distance between the ceiling where the product is 200mm mounted and the roof shall be 200mm or above. - Page 7 2. Fix the power cord to the bathroom heater (1) Remove the screw on the wiring cover plate. (2) Open the wiring cover plate. (3) Lift the terminal protection cover. (4) Loosen the screw fixing the power cord clip. (5) Loosen the screw on the wiring terminal, insert the power cord (not supplied) connected to the indoor fixed line into the wiring terminal, tighten the wring terminal screw.
- Page 8 (3) Fix the suspender on the right position of the cement board, use the install template to adjust the M6 nut on the suspender. M6 Butterfly Nut M6 Nut Suspender 6 Washer Cement Board 6 Spring Washer M6 Nut Ceiling Surface Install template datum line (4) Fix the suspension bracket on the suspender by 8 8 BTP4*8...
- Page 9 (6) Install the air exhaust pipe 1) Fix the air exhaust pipe on the ventilation outlet assy. by the clamp. The pipeline connected to outside of the room must be slanted to prevent rain or condensed water from flowing backwards. Ventilation Outlet Assy.
- Page 10 4. Installing the Main Body Method 2 Ceiling mounting has not been installed. (1) Positioning and installation of the suspenders 1) Put the installation template to the position of fixed hole A and B on where the bathroom heater is going to be installed.
- Page 11 (5) Install the air exhaust pipe 1) Fix the air exhaust pipe on the ventilation outlet assy. by the clamp. The pipeline connected to outside of the room must be slanted to prevent rain or condensed water from flowing backwards. Ventilation Outlet Air Exhaust Pipe Clamp...
-
Page 12: Button Function
USER'S GUIDE A. Before Using Before using the remote control, please take off the battery insulating strip. Before using the remote controller, please wait for 5 seconds after the power source is connected. Battery Insulating Strip B. Paring Please press "Light" and "Light Off" together within 3 minutes after connecting to power source. - Page 13 D. Display Information Current Hour Minute Celsius Humidity HEATER HOT DRY COOL DRY 24H VENTILATION VENTILATION AIR FLOW FIXED SWING MODE E. Activated mode During the standby mode, press any button to the activated mode , the screen will display "00:00". Display "00:00"...
-
Page 14: Troubleshooting
TROUBLESHOOTING Problem Diagnosis Solution Bathroom Heater does not A. A power failure occurred. A. Wait until the power is restored. work. B. The power cord is disconnected. B. Connect the power cord into the junction box of bathroom heater. C. Circuit breaker is in the "Off" position. C. -
Page 15: Important Consumer Information
6. All installation staff should be well familiar with installation instruction. Notice: Troubleshooting needs to be done by professional of KOHLER CHINA. Users are not suggested to do this without help. Please remember that the checking and repairs done by users themselves could easily cause damage to the machine or cause physical harm to the person.
