Summary of Contents for Kohler K-77316T-MZ

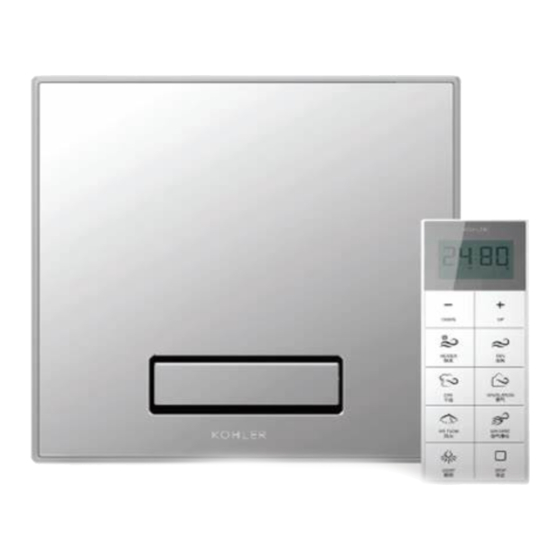

- Page 1 Installation and Homeowners Guide Underscore Bathroom Heater S300(Air-care) S300(Air-care) K-77316T-MZ Underscore Bathroom Heater S300 S300 K-77317T-MZ KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 1294230-T01-A...
-
Page 2: Before You Begin
All information in these instructions is based upon the latest product information available at the time of publication. Kohler China reserves the right to make changes in product characteristics, packaging, or availability at any time without notice. -
Page 3: Specifications
ROUGHING-IN Reference Value Unit: mm Junction Box Cover Ventilation Outlet Hot Air Outlet Kohler reserves the right to change marked dimensions without prior notice. SPECIFICATIONS Model K-77316T-MZ / K-77317T-MZ K-77316T-MZ / K-77317T-MZ Voltage/Frequency 220V~/50Hz 220V~/50Hz Rated Input Power 2150W 2150W... -
Page 4: Wiring Diagram
M6 Screw Cap Keel BTP4*8 Triangular Self Tapping Screw BTP4*8 Note: Plaster or other ceiling opening dimension: 280 X 285 (mm) Ventilation Outlet Assy. X 285 (mm) WIRING DIAGRAM K-77316T-MZ CN13 BLUE MOTOR WHITE CAPACITOR PINK TEMPERATURE YELLOW BLACK AND HUMIDITY... -
Page 5: Preparation Before The Installation
WARNING Conductor Make sure the power cord installed firmly, Earth otherwise it may catch fire. (Unit: mm) Power Cord There's no risk of damage to the insulation of power cord. Terminal Copper cord must be inserted into the pillar terminal hole, and make sure all the cords under the terminal are inserted into the pillar terminal completely. -
Page 6: Packing List
Take out the bathroom from package. Bathromm Heater C. Packing List 1285547 1285552 80 Air Outlet Window Fixed Column Assy. M6 Expansion Head 10 Expansion Pipe 1285548 80 Air Exhaust Pipe M6 Screw Rod Note: Initial Length:275mm Stretch Length: 1300mm 275mm 1300mm 1285553... -
Page 7: Installation
1285551 1288669 Heater Accessories Package Install Template 1285555 Remote Control Hanger (Only K-77316T-MZ) K-77316T-MZ) Triangular Self-tapping Screw BTP4*8 INSTALLATION Caution before installation: 200mm The installed product must be 200mm or above away from curtains or other combustible materials. The distance between the ceiling where the product is 200mm mounted and the roof shall be 200mm or above. - Page 8 2. Fix the power cord to the bathroom heater (1) Remove the screw on the wiring cover plate. (2) Open the wiring cover plate. (3) Lift the terminal protection cover. (4) Loosen the screw fixing the power cord clip. (5) Loosen the screw on the wiring terminal, insert the power cord (not supplied) connected to the indoor fixed line into the wiring terminal, tighten the wring terminal screw.
- Page 9 (3) Fix the suspender on the right position of the cement board, use the install template to adjust the M6 nut on the suspender. M6 Butterfly Nut M6 Nut Suspender 6 Washer Cement Board 6 Spring Washer M6 Nut Ceiling Surface Install template datum line (4) Fix the suspension bracket on the suspender by 8 8 BTP4*8...
- Page 10 (6) Install the air exhaust pipe 1) Fix the air exhaust pipe on the ventilation outlet assy. by the clamp. The pipeline connected to outside of the room must be slanted to prevent rain or condensed water from flowing backwards. 80 Ventilation Outlet Assy.
- Page 11 4. Installing the Main Body Method 2 Ceiling mounting has not been installed. (1) Positioning and installation of the suspenders 1) Paste the install template attached along with the product on the position where the main body is intended to install. Cement Board Install Template 2) Fix the suspender to the cement board according to...
- Page 12 (5) Install the air exhaust pipe 1) Fix the air exhaust pipe on the ventilation outlet assy. by the clamp. The pipeline connected to outside of the room must be slanted to prevent rain or condensed water from flowing backwards. Air Exhaust Pipe Ventilation Outlet Assy.
-
Page 13: Button Function
USER'S GUIDE A. Pairing Connect to the power source, press the "HEATER and " "FAN" together within 3 minutes to make the pairing. "Beep, Beep, Beep" will be heard and the LED lamp will be turned on if the pairing successfully. HEATER B. -
Page 14: Troubleshooting
"VENTILATION": the default time is 6 hours, minimum time is 10 minutes, and maximum time is 6 hours. "AIR-CARE": the default time is 2 hours, minimum time is ( K-77316T-MZ) 10 minutes, and maximum time is 2 hours. (Only K- 77316T-MZ) "24H VENTILATION": the default time is 6 hours, the... - Page 15 CARE & CLEAN 1. Turn off power supply before maintenance or cleaning. If Casing or Air Louver are covered with dust, do not splash water onto it. Use only damp sponge or cloth to wipe dirt off. 2. Do not use eradicator, abrasive powder or oil, acid or alkali liquid detergent to clean casing or air louver.
-
Page 16: Important Consumer Information
6. All installation staff should be well familiar with installation instruction. Notice: Troubleshooting needs to be done by professional of KOHLER CHINA. Users are not suggested to do this without help. Please remember that the checking and repairs done by users themselves could easily cause damage to the machine or cause physical harm to the person.
