Summary of Contents for Kohler K-77283T-2-MZ

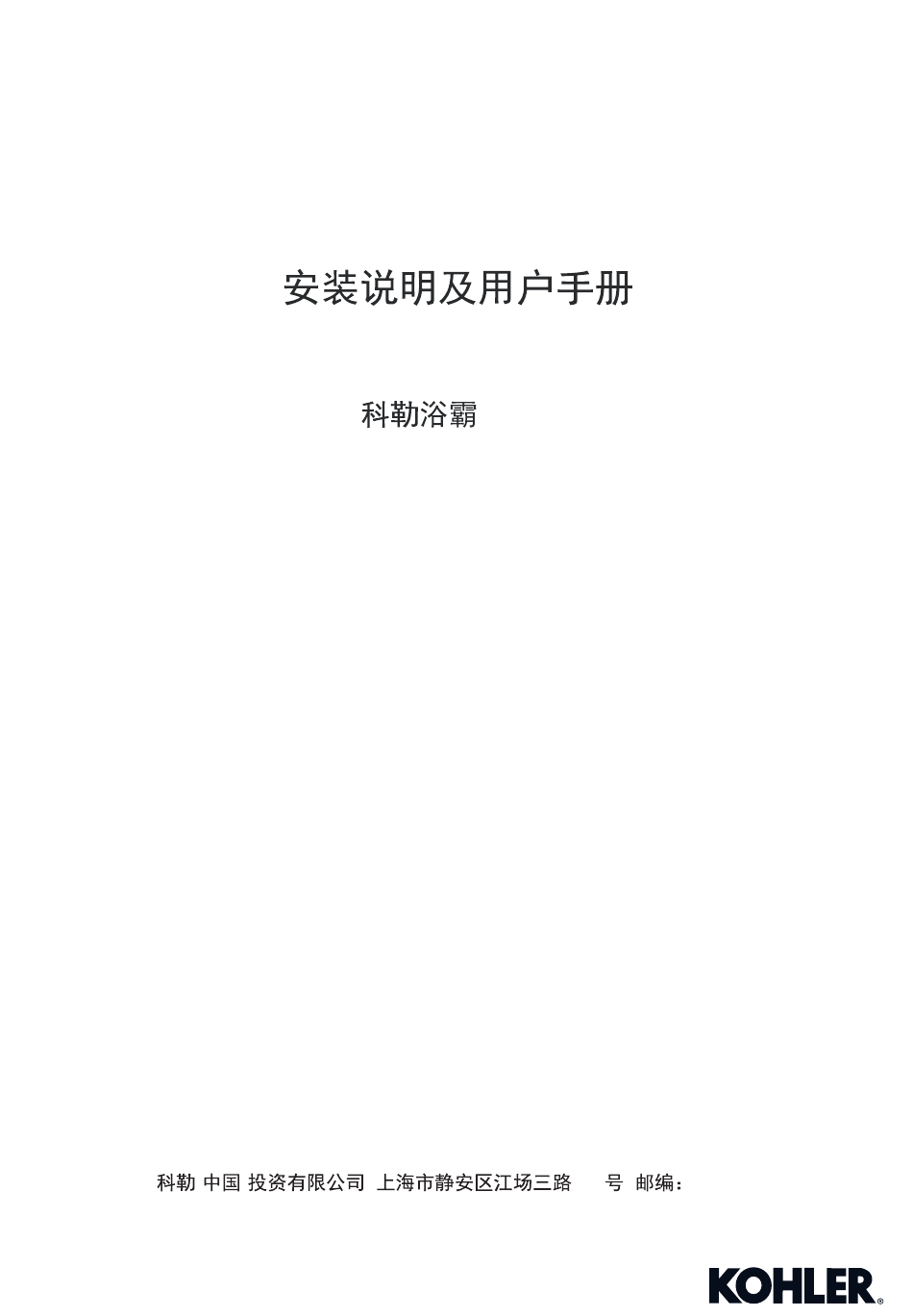

- Page 1 Installation and Homeowners Guide Underscore Bathroom Heater S450 S450 K-77315T-2-MZ(Aircare) K-77283T-2-MZ KOHLER CHINA INVESTMENT CO., LTD NO.158, JIANG CHANG SAN ROAD, JING'AN DISTRICT, SHANGHAI, PRC POST CODE: 200436 200436 1430823-T01-A...
-
Page 2: Before You Begin
Percussion Drill Pen Knife Wrench ROUGHING-IN Reference Value Unit: mm Junction Box Cover Ventilation Outlet Hot Air Outlet Kohler reserves the right to change marked dimensions without prior notice. © Copyright Kohler China Investment Co., Ltd. 2020 1430823-T01-A © 2020... -
Page 3: Specifications
SPECIFICATIONS Model K-77315T-2-MZ/K-77283T-2-MZ K-77315T-2-MZ/K-77283T-2-MZ Voltage/Frequency 220V~/50Hz 220V~/50Hz Rated Input Power 2650W 2650W Heater Power 2638W 2638W Fan Power Dry Clothing Power 2650W(Hot)/55W(Cool) 2650W( )/55W( Ventilation Power Air-care Power 30W( Only K-77315T-MZ/K-77315T-2-MZ/K-77315T-X-MZ) 30W( K-77315T-MZ/K-77315T-2-MZ/K-77315T-X-MZ) Lighting Power Ventilation Volume 2.7m /min 2.7m /min... - Page 4 K-77283T-2-MZ HOT MOTOR BLUE CAPACITOR VENT MOTOR BLACK CAPACITOR BLUE YELLOW/GREEN WHITE 220V OVER CURRENT FUSE 50Hz BLUE THERMOSTAT WHITE THERMAL FUSE ALL-POLE SWITCH (OPTIONAL) WHITE INDICATOR LIGHT BLUE CN12 WHITE MODULE HEATER 1 WHITE BROWN STEPPER MOTOR THE RATE OF THE POWER SWITCH...
-
Page 5: Preparation Before The Installation
PREPARATIONS BEFORE INSTALLATION A. Preparation before the installation 1. Open the hole of outlet window Make sure that the outlet window s position (it should be lower than the outlet of the bathroom heater to prevent the water come back to the bathroom heater from the outlet window), and open a round hole on the wall. -
Page 6: Packing List
( K-77315T-2-MZ) Base BTP4 8 Triangular Self Tapping Screw M4*25Screw BTP4 8 6 Plastic Expansion Pipe Cover 1285551 Heater Accessories Package 1285554 1285542 Decorated Plate X2 Install Template Hanger Triangular Self-tapping Screw BTP4*8 1430806 Remote Control (Only K-77283T-2-MZ K-77283T-2-MZ 1430823-T01-A... -
Page 7: Installation
INSTALLATION Caution before installation: 200mm The installed product must be 200mm or above away from curtains or other combustible materials. The distance between the ceiling where the product is 200mm mounted and the roof shall be 200mm or above. Ensure that the gap between the product edge and the 300mm wall is 300mm or above. - Page 8 2. Fix the power cord to the bathroom heater (1) Remove the screw on the wiring cover plate. (2) Open the wiring cover plate. (3) Lift the terminal protection cover. (4) Loosen the screw fixing the power cord clip. (5) Loosen the screw on the wiring terminal, insert the power cord (not supplied) connected to the indoor fixed line into the wiring terminal, tighten the wring terminal screw.
- Page 9 (3) Fix the suspender on the right position of the cement board, use the install template to adjust the M6 nut on the suspender. M6 Butterfly Nut M6 Nut Suspender 6 Washer Cement Board 6 Spring Washer M6 Nut Ceiling Surface Install template datum line (4) Fix the suspension bracket on the suspender by 8 8 BTP4*8...
- Page 10 (6) Install the air exhaust pipe 1) Fix the air exhaust pipe on the ventilation outlet assy. by the clamp. The pipeline connected to outside of the room must be slanted to prevent rain or condensed water from flowing backwards. 80 Ventilation Outlet Assy.
- Page 11 4. Installing the Main Body Method 2 Ceiling mounting has not been installed. (1) Positioning and installation of the suspenders 1) Paste the install template attached along with the product on the position where the main body is intended to install. Cement Board Install Template 2) Fix the suspender to the cement board according to...
- Page 12 (5) Install the air exhaust pipe 1) Fix the air exhaust pipe on the ventilation outlet assy. by the clamp. The pipeline connected to outside of the room must be slanted to prevent rain or condensed water from flowing backwards. Air Exhaust Pipe Ventilation Outlet Assy.
-
Page 13: Button Function
USER'S GUIDE A. Pairing Connect to the power source, press the "HEATER and " "FAN" together within 3 minutes to make the pairing. "Beep, Beep, Beep" will be heard and the LED lamp will be turned on if the pairing successfully. Note: The bathroom heater mustn't be placed directly HEATER... -
Page 14: Troubleshooting
D. Activated mode During the standby mode, press any button to the activated mode , display the room temperature and humidity. Display will be turned off if no any further action within 10 seconds. During the working mode, display the room temperature and humidity. - Page 15 CARE & CLEAN 1. Turn off power supply before maintenance or cleaning. If Casing or Air Louver are covered with dust, do not splash water onto it. Use only damp sponge or cloth to wipe dirt off. 2. Do not use eradicator, abrasive powder or oil, acid or alkali liquid detergent to clean casing or air louver.
-
Page 16: Important Consumer Information
6. All installation staff should be well familiar with installation instruction. Note: Troubleshooting needs to be done by professional of KOHLER CHINA. Users are not suggested to do this without help. Please remember that the checking and repairs done by users themselves could easily cause damage to the machine or cause physical harm to the person.
