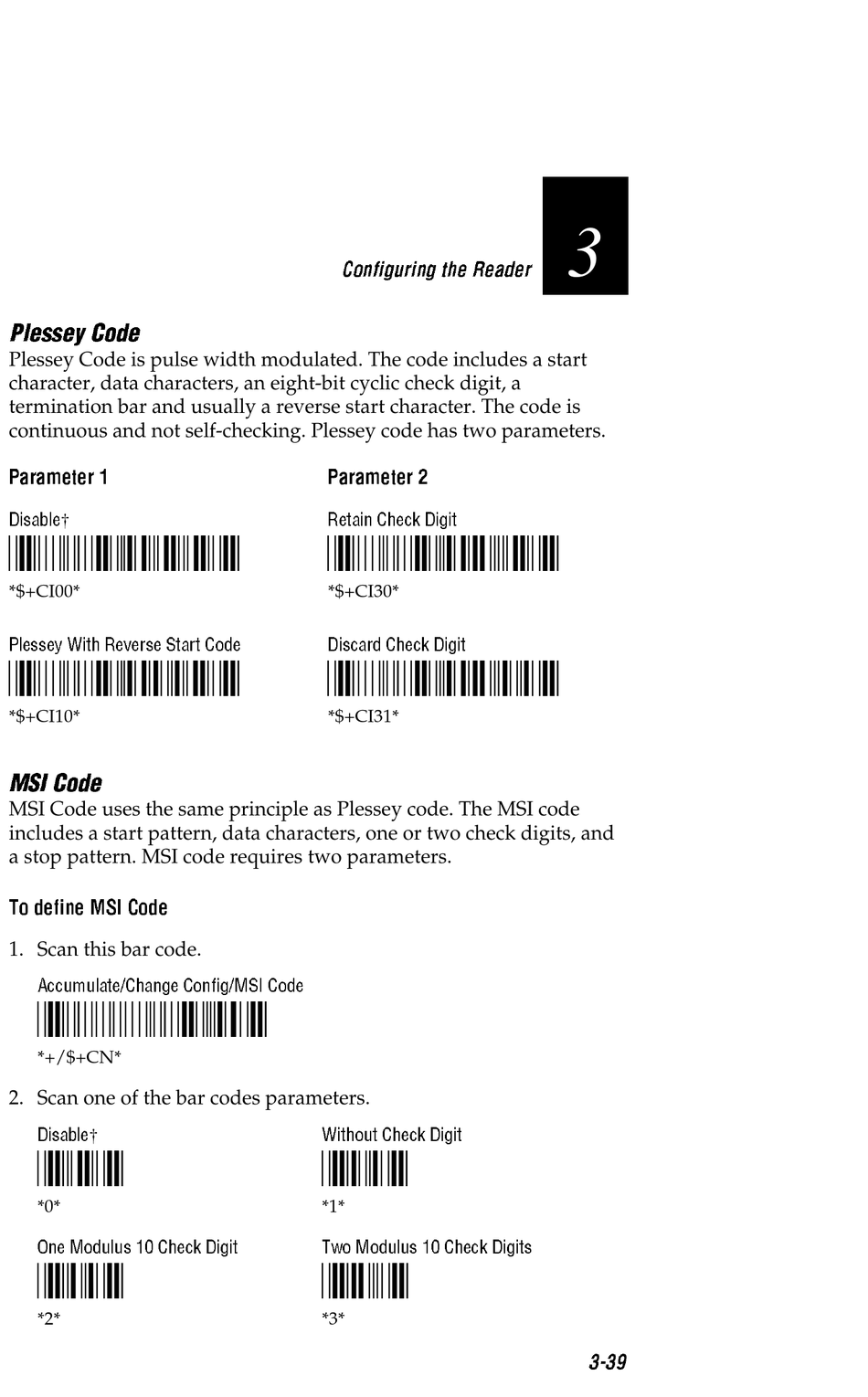

Intermec MicroBar 9710 User Manual page 71

Plessey Code
Plessey Code is pulse width modulated. The code includes a start
character, data characters, an eight-bit cyclic check digit, a
termination bar and usually a reverse start character. The code is
continuous and not self-checking. Plessey code has two parameters.
†
*$+CI00*
*$+CI00*
*$+CI10*
*$+CI10*
MSI Code
MSI Code uses the same principle as Plessey code. The MSI code
includes a start pattern, data characters, one or two check digits, and
a stop pattern. MSI code requires two parameters.
To define MSI Code
1. Scan this bar code.
*+/$+CN*
*+/$+CN*
2. Scan one of the bar codes parameters.
†
*0*
*0*
*2*
*2*
*$+CI30*
*$+CI30*
*$+CI31*
*$+CI31*
*1*
*1*
*3*
*3*
3
