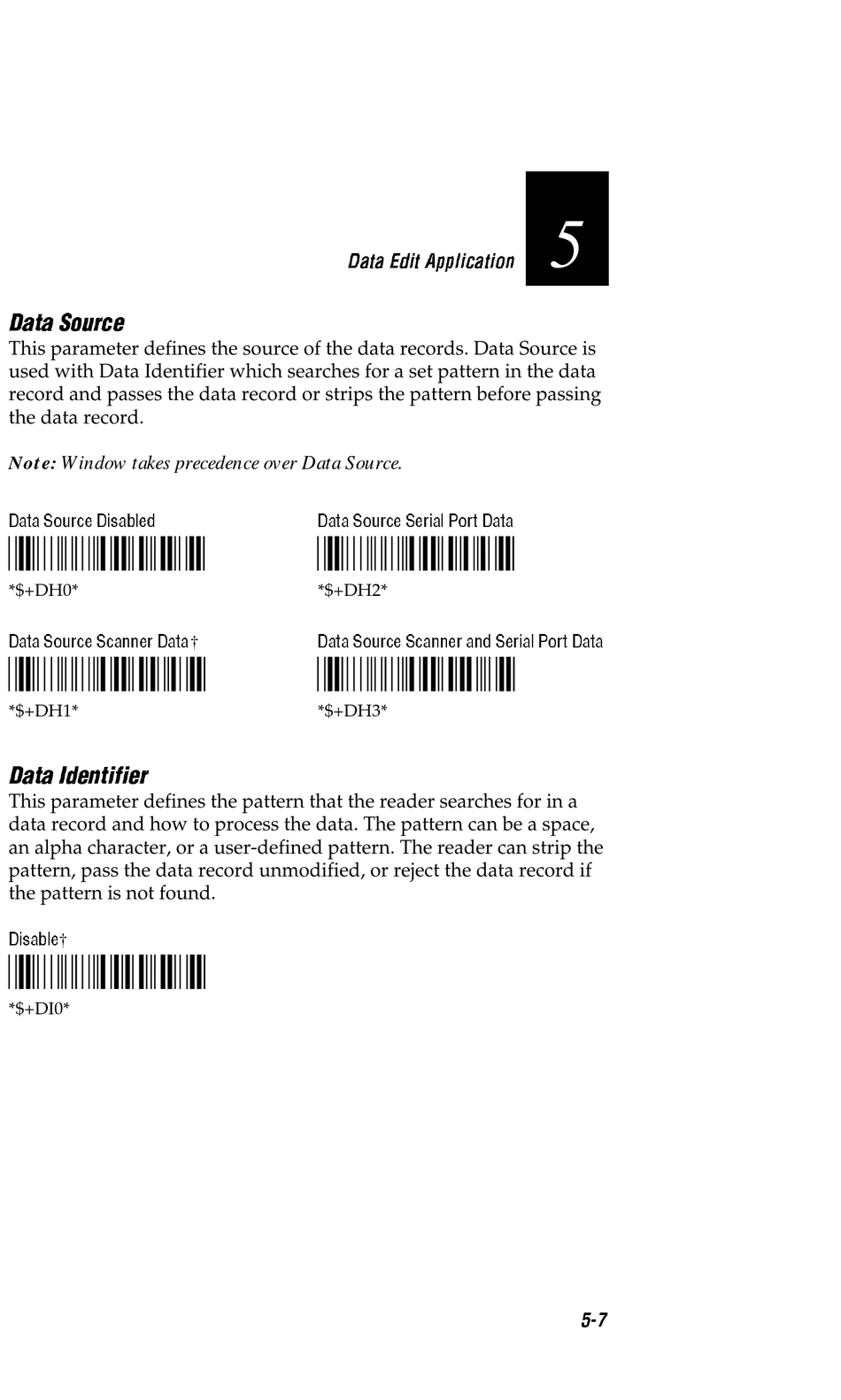

Intermec MicroBar 9710 User Manual page 105

This parameter defines the source of the data records. Data Source is
used with Data Identifier which searches for a set pattern in the data
record and passes the data record or strips the pattern before passing
the data record.
Note: Window takes precedence over Data Source.
*$+DH0*
*$+DH0*
†
*$+DH1*
*$+DH1*
This parameter defines the pattern that the reader searches for in a
data record and how to process the data. The pattern can be a space,
an alpha character, or a user-defined pattern. The reader can strip the
pattern, pass the data record unmodified, or reject the data record if
the pattern is not found.
†
*$+DI0*
*$+DI0*
*$+DH2*
*$+DH2*
*$+DH3*
*$+DH3*
5
