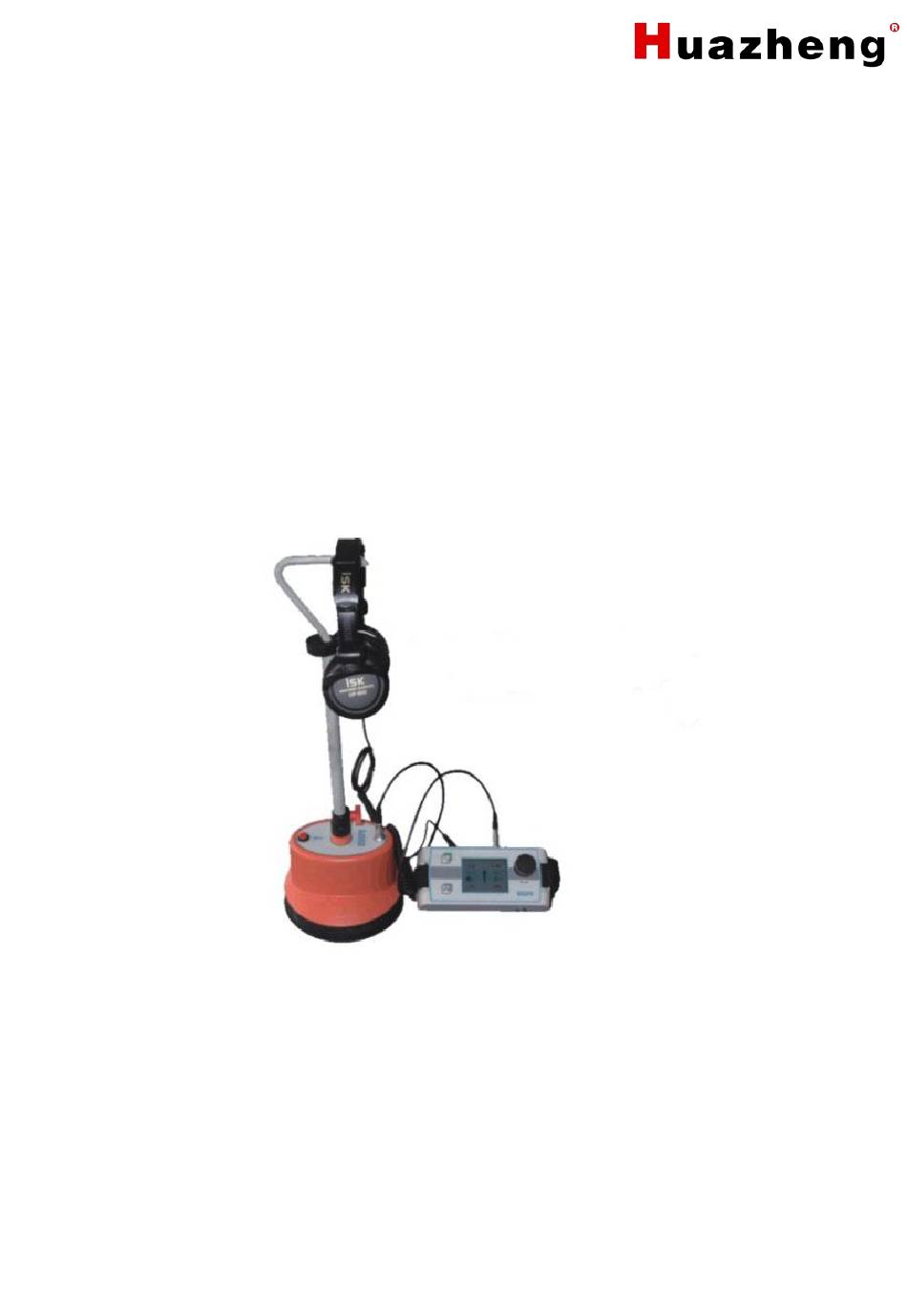

- Page 1 HZ-B Cable Fault Precise Determination Point Teste Huazheng Electric Manufacturing (Baoding) Co., Ltd...
-
Page 2: Table Of Contents
Contents I. Overview............................1 II. Technical characteristics......................1 III. Technical parameter:....................... 1 IV. On-site installation and operation of HZ-B cable fault precise determination point tester..............................3 V Start to use cable fault HZ-B pinpoint tester..............5 VI. Packing List..........................7... -
Page 3: Overview
The HZ-B cable fault precise locating instrument is a portable, ultra-quiet, visual impact discharge receiving precise locating instrument. It is specially used in conjunction with a high-voltage impact generator. - Page 4 6 alkaline batteries of type 5, type IEC R6 A manual 2. Receiver host connection and control The following figure shows the connection method and control buttons of the HZ-B receiver host： 、 LCD Monitor 、 One-key adjustment key, 、...
-
Page 5: On-Site Installation And Operation Of Hz-B Cable Fault Precise Determination Point Tester
IV. On-site installation and operation of HZ-B cable fault precise determination point tester HZ-B cable fault precise determination point tester is turned on, sensor preparation 1. Connect the sensor to a suitable probe or probe The HZ-B sensor can be connected to two different probes. The standard configuration includes an 18mm long hard ground probe and a 75mm long grass probe. - Page 6 Be careful to align the white marks on the plug and socket. The plug is plug and play, please do not rotate! 5. Introduction of HZ-B cable fault precise determination point tester receiver host 5.1 Power on the receiver...
-
Page 7: Start To Use Cable Fault Hz-B Pinpoint Tester
(sound amplification factor) 5.4 Measurement interface display The HZ-B cable fault precise determination point tester provides the sound signal in the earphone. When you are approaching the fault point during the precise determination point, the tester displays relevant useful information through the measurement interface. - Page 8 If HZ-B cannot pick up any sound signal at this measuring point. Please follow the path of the cable under test. When you find that HZ-B receives the first useful impact discharge sound signal, the left side of the LCD of HZ-B host will automatically display the sound level of the measurement point.
-
Page 9: Packing List
2 Shutdown of the HZ-B cable fault pinpoint tester： 3 Please long press the power on / off button on the main unit of the HZ-B cable fault pinpointing tester. Note: This tester can only be operated by trained and experienced professional electrical workers.
