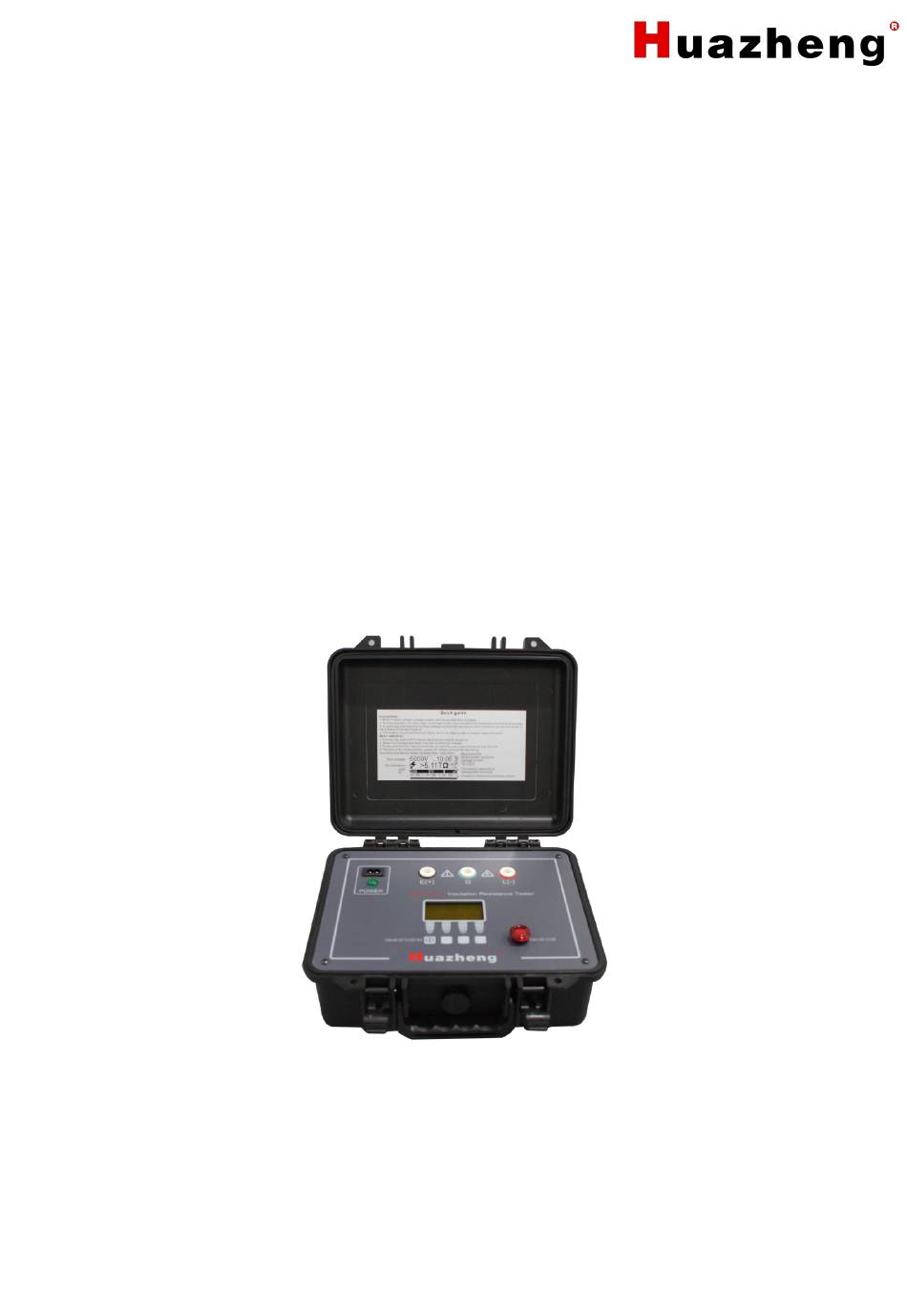

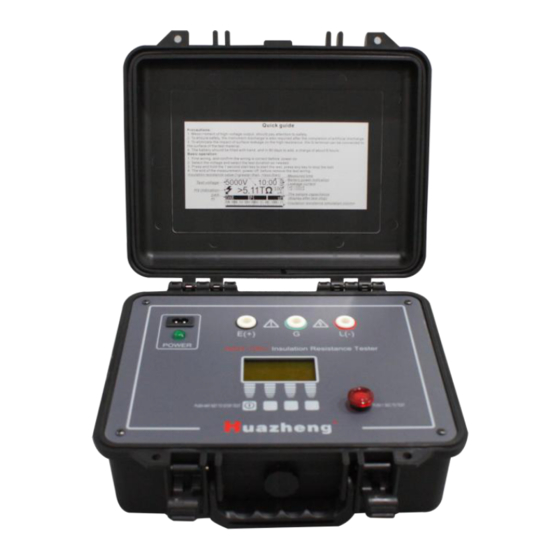

- Page 1 HZJY-10K-I Insulation Resistance Tester Huazheng Electric Manufacturing (Baoding) Co., Ltd...
-
Page 2: Table Of Contents
Contents I. Safe Use Items..........................1 II. Feature............................2 III. Specification Parameter......................2 IV. Introduction Of Instrument......................3 V. Instrument Using..........................6 VI. Packing List..........................7... -
Page 3: Safe Use Items
Safe Use Items Design and manufacture of the instrument and testing achieves IEC61010 safety standards (electronic measuring product safety requirements), this manual including the safety of the instrument use and ensure the safety of equipment state, users must follow the warnings and safety regulations Please read the following instructions before use. Warning ●... -
Page 4: Feature
II. Feature Intelligent High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, test up to 10TΩ. ● Strict accordance with the safety standards for design ● Insulation resistance range 10TΩ @ 10 kv ● Short circuit current can be adjusted, maximum 5 mA (Up to 10mA short circuit current product can be ordered. -
Page 5: Introduction Of Instrument
● size（L x W x H） ：26cm x 20cm x 16cm ● weight：3kg ● Test voltage accuracy: the nominal value 100% to 110% ● Voltage measurement accuracy：5%+3V ● Current test range：10mA ● current measure precision：5%+0.2nA ● short-circuit current： 5mA ● Capacitance test range：20uF ●... - Page 6 number Description number Description AC plug AC ON Test Port（E、G、L） LCD display ● Key and function Key numbered from left to right, the first for a total of five off down the power Key. number Description Press the switch on button startup, shutdown condition 2、3、4 functional key The TEST key, press and hold 1 s TEST, then stop (enter the...
- Page 7 When the battery voltage shows just one more case should be timely charge, when the battery displaying flashing is automatically cut off the power at any time, should be recharged. charge：AC socket provided meet the requirements of the AC power supply for panel, ...
-
Page 8: Instrument Using
Soft key Description Power Off (No operation, 3 minutes automatic shutdown) Back Return to the main menu Set test voltage: 500V、1000V、2500V、5000V、10000V Veiw 15S、30S、60S、600S Insulation value V. Instrument Using measured DAR: 1. Select more than 1 minute length measurement. 2. Select the appropriate voltage and start. 3. -
Page 9: Packing List
VI. Packing List Item Main engine Power line Black test line Red test line Green test line...
