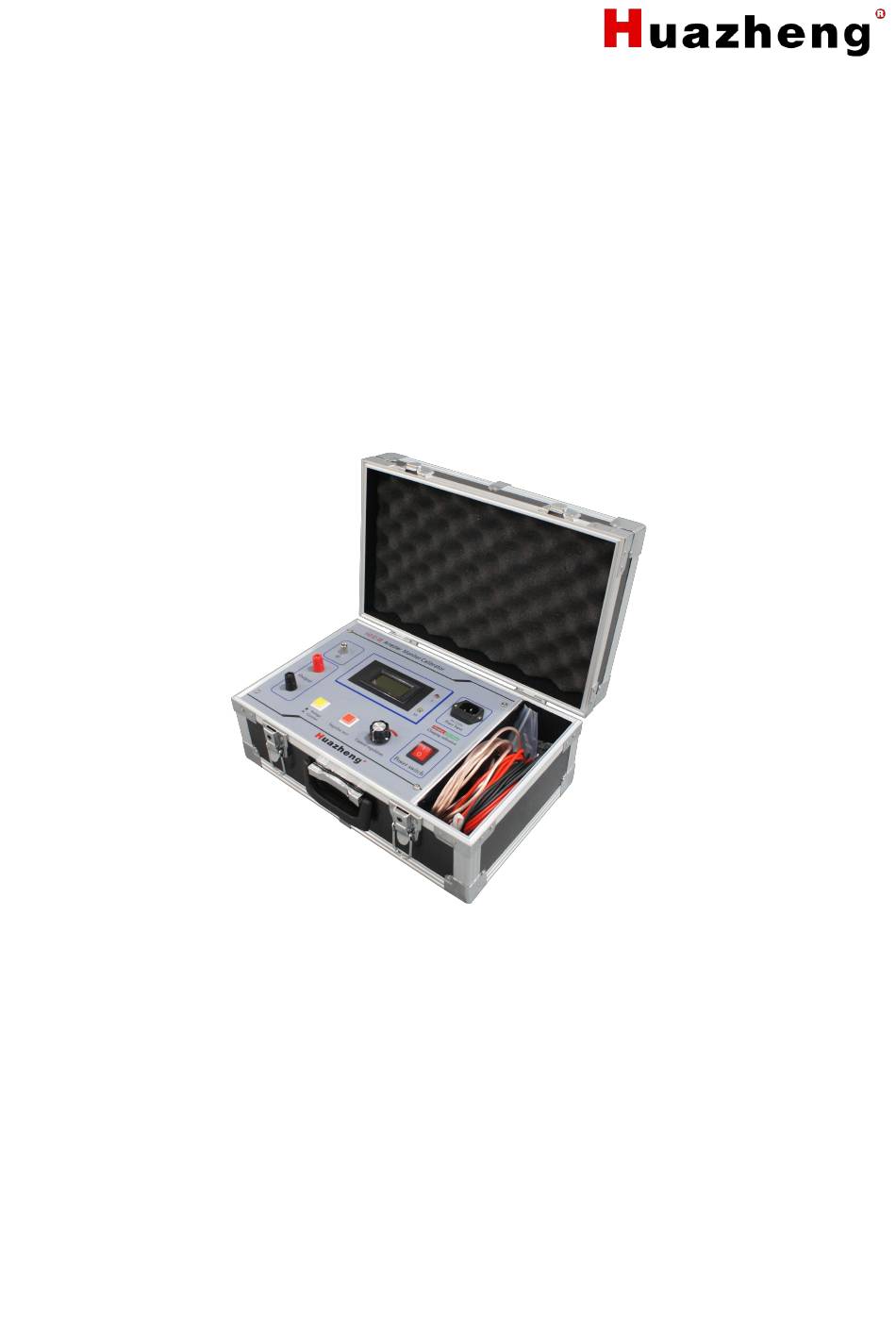

- Page 1 HZJZ-III Arrester Monitor Calibrator Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 (0312) 6775656 to tell you to ser ve you at all times- Baoding Huazheng Elect ric Manufact uring Co. , Lt d. , our company will def initely make you satisf ied !
- Page 3 Content I.Technical Parameters..........................1 II.Panel................................1 III.Impact Test...............................2 IV. Ammeter Calibration..........................4 V. Precautions..............................4 VI. Packing List............................4...
- Page 4 With the continuous development of science and technology, the function of the arrester discharge counter is not only used to record the number of lightning strikes, but also to monitor the leakage current of the arrester online. Our newly developed lightning arrester online monitor calibrator is an instrument with both impact test and ammeter calibration.
- Page 5 III.Impact Test 3.1 Test principle Figure 1 Principle wiring of JS type action counter (a) JS type; (b) JS8 type R1, R2 non-linear resistance; C energy storage capacitor L counter coil; D1~4 silicon diode Figure 1 shows the principle wiring diagram of the JS type action counter. Figure 1 (a) shows the basic structure of the JS type action counter, the so-called double valve plate structure.
- Page 6 Due to poor sealing, moisture or moisture may enter the action counter during operation, which will rust the internal components and cause the counter to not operate normally. Therefore, the "Regulations" stipulates that it should be inspected once a year. The methods to check the operation of the counter on site include capacitor discharge current branch, AC method and standard impulse current method.
- Page 7 7. If you press the impact test button and the output voltage does not drop, you should turn off the power supply. After the voltage indicator returns to zero, check whether the circuit has a break or the discharge counter is not suitable for the model specified in the technical indicators. IV.
