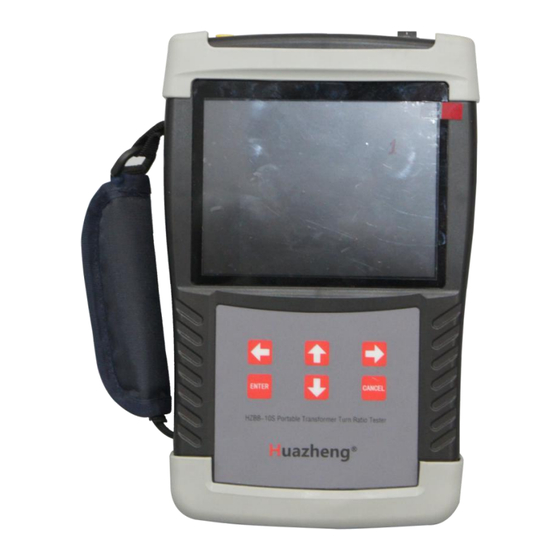

- Page 1 HZBB-10S Portable Transformer Turns Ratio Tester Huazheng Electric Manufacturing (Baoding) Co., Ltd...
- Page 2 (0312) 6775656 to tell you to serve you at all times- Baoding Huazheng Elect ric Manufact ur ing Co. , Lt d. , our company will def initely make you satisf ied !
-
Page 3: Table Of Contents
Contents I.Important Note..........................1 II.Introduction........................... 1 III.Packaging Content........................1 IV.Functional Characteristics......................2 V.Technical Indicators........................2 VI.Adjust The Wristband.........................3 VII.Battery Charging........................3 VIII.Tilt Hand-held Tester........................4 IX.Product Appearance........................4 X.Operation Instructions.........................6 XI.Matters Needing Attention.......................11 XII.Packing List..........................12... -
Page 4: I.important Note
I.Important Note If the instrument is not in use, please turn off the power in time. If the instrument is not used for a long time, please charge and discharge regularly. Batteries should be charged and discharged at least once a month. It is strictly forbidden to use power shortage, which will severely shorten the battery life and even make the battery scrap. -
Page 5: Iv.functional Characteristics
√1 print user manual √1 copy of certificate and factory test repor IV.Functional Characteristics Lithium battery power supply or 100-240V AC power supply is self-adaptive. After one charge, more than 100 transformers can be continuously tested in the ratio group. The test process is simple and convenient. ... -
Page 6: Vi.adjust The Wristband
100～999.99（0.01） 1000～9999.9（0.1） 10000 and above（1） The built-in battery or external charger, Working power charger conditions of use， Input 100-240 VAC， supply 50/60 HZ Charging time About 2 hr Instrument weight 1.7 kg Instrument 246 mm（L）×156 mm（W）×62 mm（H） dimension Use of -10℃～50℃... -
Page 7: Viii.tilt Hand-Held Tester
VIII.Tilt Hand-held Tester In order to take the instrument or expose the side interface during operation, the hand-held tester can be tilted, as shown in the figure below. Lift the tilt seat and pull outward IX.Product Appearance Top view... - Page 8 Front View Side View Function Instructions module The yellow, green and red three-color junction seats correspond to High three-phase A, B and C respectively, and the red test line corresponds to the voltage bullet rod side. The other end of the test line has yellow, green and red test three-color test clamps, which correspond to three-phase A, B and C of the terminal...
-
Page 9: X.operation Instructions
Operate instruments. “↑↓” is the "up and down" key, select to move or modify data; “←→” is the "left and right" key, select to move or modify data; "Enter" Button key, confirm the current operation; "Cancel" key, abandon the current operation. - Page 10 prompt with low power and over-discharge protection; when the instrument is low power, the charger can be plugged in to charge, and the instrument can be used normally in the charging process. Instructions for use of printer The key of the printer and the indicator of the printer are integrated. When the printer is powered on, the indicator light is normally on, and it flashes when the paper is missing.
- Page 11 function is selected by the direction key, and the corresponding function menu is entered by pressing the "Enter" key. To carry out variable ratio and group test for three phase transformers. Variable ratio and polarity test for single phase PT, single-phase transformer and single-phase CT.
- Page 12 Instructions First-level operation directory, through the “←”→” key to select these functions, when these functions are selected, press the “↑”↓”" key to select the parameters of the corresponding functions. Tip: The cursor can quickly jump to the button by pressing the "Enter" button under the first-level operating directory, which can quickly start the measurement.
- Page 13 Tip: this function is convenient for measuring and detecting only one phase, saving time. Two level operation directory, corresponding to the first level operation directory. Instructions Set parameters and modify the parameters through “↑↓”keys. Tip: the cursor in the second level of operation directory, you can press the "Enter"...
-
Page 14: Xi.matters Needing Attention
Save the current test results to the local computer or save it to the external USB disk. Tip: the data saved to the USB is in WORD format, and can be directly edited or printed with OFFICE. XI.Matters Needing Attention ... -
Page 15: Xii.packing List
XII.Packing List Item Main engine Red test line Black test line Print paper Power line...
