BougeRV PWM NEGATIVE GROUND User Manual page 19

P2430N

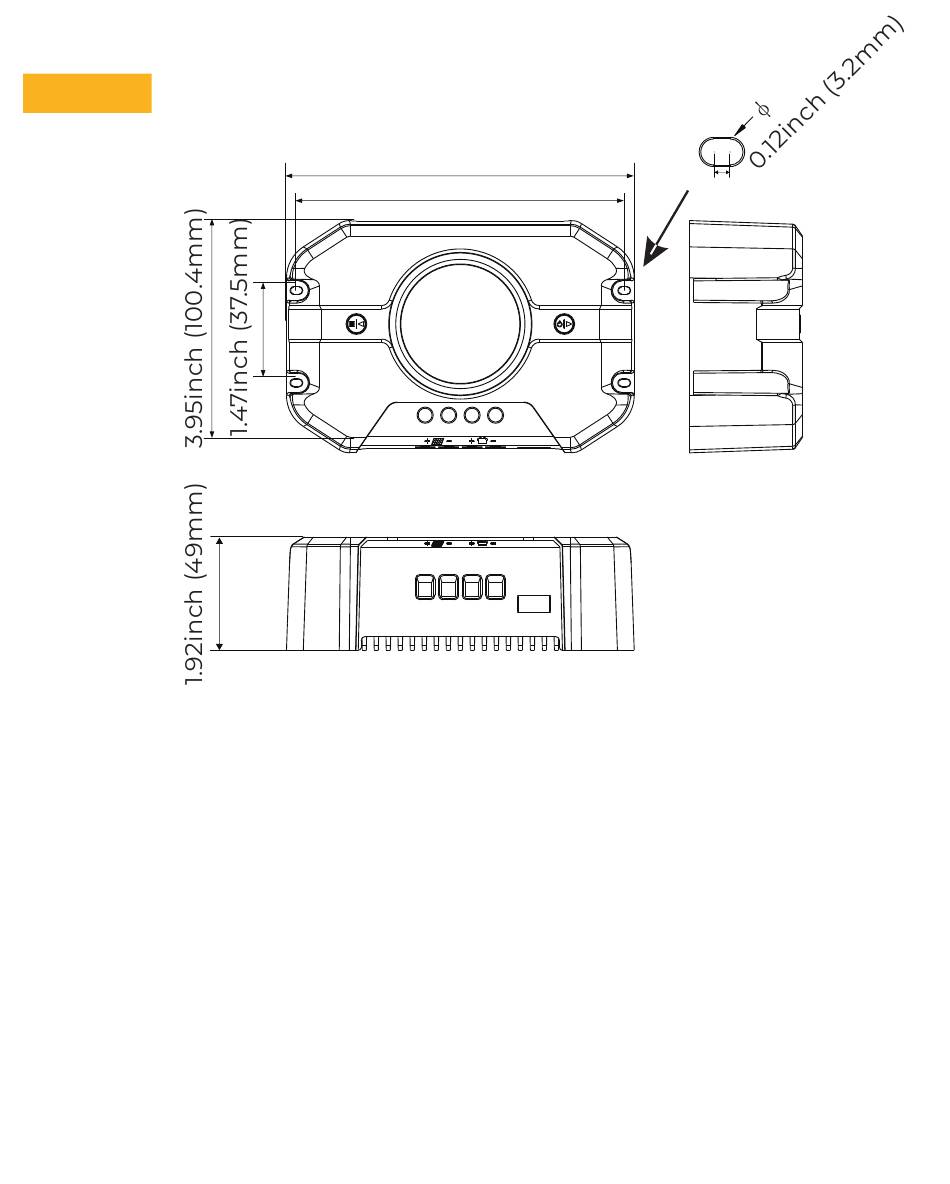

5.92inch (150.6mm)
5.59inch (142mm)
0.07inch (2mm)
•Product Dimension: 5.92*3.95*1.92 inch (150.6*100.4*49mm)
•Installation Area Dimension: 5.59*1.47 inch (142*37.5mm)
•Drill Hole Size : 0.12*0.07 inch (3.2*2mm)
•Installation Hole Size : 0.29*0.39 inch (7.5*10mm）
17
