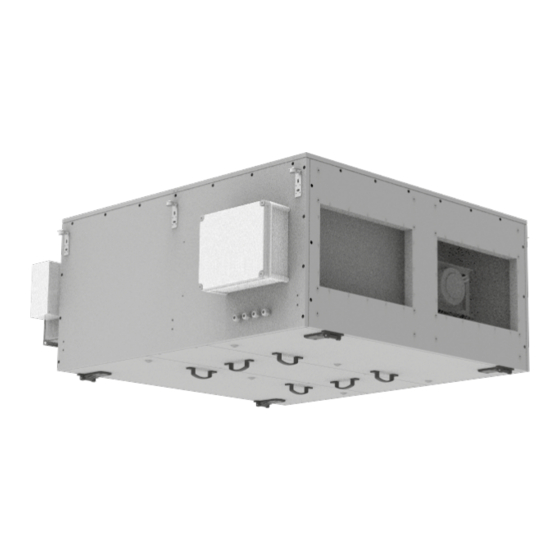

  • Page 1 Air hAndling unit BlauAir RP USER’S MANUAL...

  • Page 2: Table Of Contents

    Warranty card ....................................13 This user’s manual is a main operating document intended for technical, maintenance, and operating staff. The manual contains information about purpose, technical details, operating principle, design, and installation of the BlauAir RP unit and all its modifications.
  • Page 3 BlauAir rP www.blaubergventilatoren.de Do not expose the unit to adverse atmospheric agents (rain, sun, etc.). Transported air must not contain any dust or other solid impurities, sticky substances, or fibrous materials. Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc.

  • Page 4: Purpose

    BlauAir rP www.blaubergventilatoren.de PURPOSE The air handling unit with heat recovery is designed for integration into central mechanical ventilation systems. The unit is rated for continuous operation. Transported air must not contain any flammable or explosive mixtures, evaporation of chemicals, sticky substances, fibrous materials, coarse dust, soot and oil particles or environments favourable for the formation of hazardous substances (toxic substances, dust, pathogenic germs).

  • Page 5: Technical Data

    BlauAir rP www.blaubergventilatoren.de TECHNICAL DATA The unit is designed for indoor or sheltered use. The installation conditions must prevent ingress of atmospheric precipitations and direct solar radiation at the ambient temperatures from -35 °C up to +50 °C. The frost protection for the water drainage and connected pipelines must be provided during sub-zero ambient temperatures (if the unit is equipped with air cooler).

  • Page 6: Unit Design

    BlauAir rP www.blaubergventilatoren.de UNIT DESIGN 1: supply filter 2: supply fan 3: heat exchanger 4: extract filter 5: control unit 6: air flow control damper 7: extract fan...

  • Page 7: Installation And Set-Up

    BlauAir rP www.blaubergventilatoren.de INSTALLATION AND SET-UP ALL OPERATIONS DESCRIBED IN THIS USER’S MANUAL MUST BE PERFORMED BY QUALIFIED PERSONNEL ONLY, PROPERLY TRAINED AND QUALIFIED TO INSTALL AND MAINTAIN VENTILATION EQUIPMENT. DO NOT ATTEMPT TO INSTALL THE PRODUCT YOURSELF. IT IS UNSAFE AND IMPOSSIBLE WITHOUT SPECIAL KNOWLEDGE.
  • Page 8 BlauAir rP www.blaubergventilatoren.de The fasteners for the unit installation are not included in the delivery set and must be purchased separately. Recommended installation diagram 1 threaded stud 2 nut 3 washer 4 vibration absorbing rubber 5 nut and counter nut...

  • Page 9: Connection To Power Mains

    BlauAir rP www.blaubergventilatoren.de CONNECTION TO POWER MAINS Connection to power mains must be conducted in compliance with the automation user’s manual. TECHNICAL MAINTENANCE OPEN THE UNIT FOR INSPECTION AND SERVICE NOT LESS THAN 2 MINUTES AFTER COMPLETE DE-ENERGIZING OF THE UNIT.
  • Page 10 BlauAir rP www.blaubergventilatoren.de To access the heat exchanger remove the service panel and open the door. Release the clamp screw (1) and remove the retaining screws (2). Remove the heat exchangers from the unit. The exchanger block is partially removable for maintenance purposes.

  • Page 11: Storage And Transportation Regulations

    BlauAir rP www.blaubergventilatoren.de STORAGE AND TRANSPORTATION REGULATIONS • Store the unit in the manufacturer’s original packaging box in a dry closed ventilated premise with temperature range +5 ˚...+40 ˚С and relative humidity up to 70 %. • Storage environment must not contain aggressive vapors and chemical mixtures provoking corrosion, insulation, and sealing deformation.

  • Page 12: Manufacturer's Warranty

    BlauAir rP www.blaubergventilatoren.de MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.

  • Page 13: Certificate Of Acceptance

    BlauAir rP www.blaubergventilatoren.de CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 14 BlauAir rP www.blaubergventilatoren.de...
  • Page 15 BlauAir rP www.blaubergventilatoren.de...
  • Page 16 www.blaubergventilatoren.de B192-6EN-02...

This manual is also suitable for:

Bl02 rp 1500Bl02 rp 2500
