  • Page 1 Tower A Service Instructions...

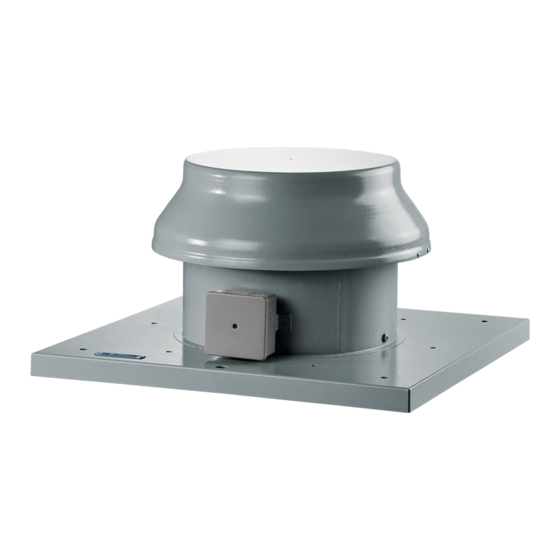

  • Page 2 DESTINATION A roof axial fan " Tower A " enclosed into metal body, having impeller diameter 200 to 350 mm (hereinafter referred to as "the fan") is intended for use in ventilation systems of housing, public and industrial premises heated during winter. The air coming out of the fan should not contain dust, other solid admixtures, sticky substances, and fibrous materials.
  • Page 3 table 1 V/50 Hz m /h r.p.m. dBa,3m C,max 0,26 Tower A 200 2E 2300 0,40 Tower A 250 2E 1050 2400 0,22 Tower A 250 4E 1380 0,66 Tower A 300 2E 2230 2300 0,35 Tower A 300 4E 1340 1350 0,65...
  • Page 4 SAFETY REQUIREMENTS It is necessary to take measures to prevent penetration of black gases into premises through open smoke ducts or other fire-prevention facilities. Fan installation and connection should be performed by qualified electrician according to effective regulations. Disconnect fan from the mains prior to maintenance and repair. Before connection of the fan to the mains it is necessary to ensure that there are no visible damages of impeller, body, grating, as well as foreign objects in the blowing part of the body,...
  • Page 5 INSTALLATION AND CONNECTION OF THE FAN TO THE MAINS A fan (fig. 1) consists of a body 1 with electric motor and impeller 7 fixed therein. Cover 2 and grating 6 are fastened to the bracket 4 by self-cutting screws. Junction box 5 is fixed at the left side of the body.
  • Page 6 MAINTENANCE Maintenance of the fan should be carried out only after disconnecting it off the mains. Maintenance comprises periodical cleaning of the surfaces from dust and dirt, when the fan is disconnected off the mains. To remove the dust, use a soft dry brush or compressed air. Blades of the impeller require careful cleaning every 6 months.
  • Page 7 WARRANTY The manufacturer guarantees normal operation of the fan during 2 years after the date of its sale through network on condition that the rules for its transportation, storage, installation and operation are followed. In case of any fan s malfunction occurs during the warranty period through the fault of manufacturer, the respective customer shall be entitled to replacement of the fan at the manufacturer s location.
  • Page 8 Tower A 200 2E Tower A 250 2E Tower A 250 4E Tower A 300 2E Tower A 300 4E Tower A 350 4E The fan has been duly certified as serviceable. Date of sale Manufactured on (date) Sold Approval mark TOWER-A_EN-03(7)
