Hillsdale Furniture SANTA MONICA SNTACCSC Assembly Instructions

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

HARDWARE LIST

A (10) 1/4" x 5/8" Allen Bolts
B (4) 1/4" x 1-1/2" Allen Bolts
C (2) 1/4" x 1" Allen Bolts
D (16) 1/4" Flat Washers
E (16) 1/4" Spring Washers
F (1) 1/4" Allen Wrench

PARTS LIST

G (1) Stool Back
H (1) Seat Base
I (2) Stool Leg Panels
J (1) Support Ring

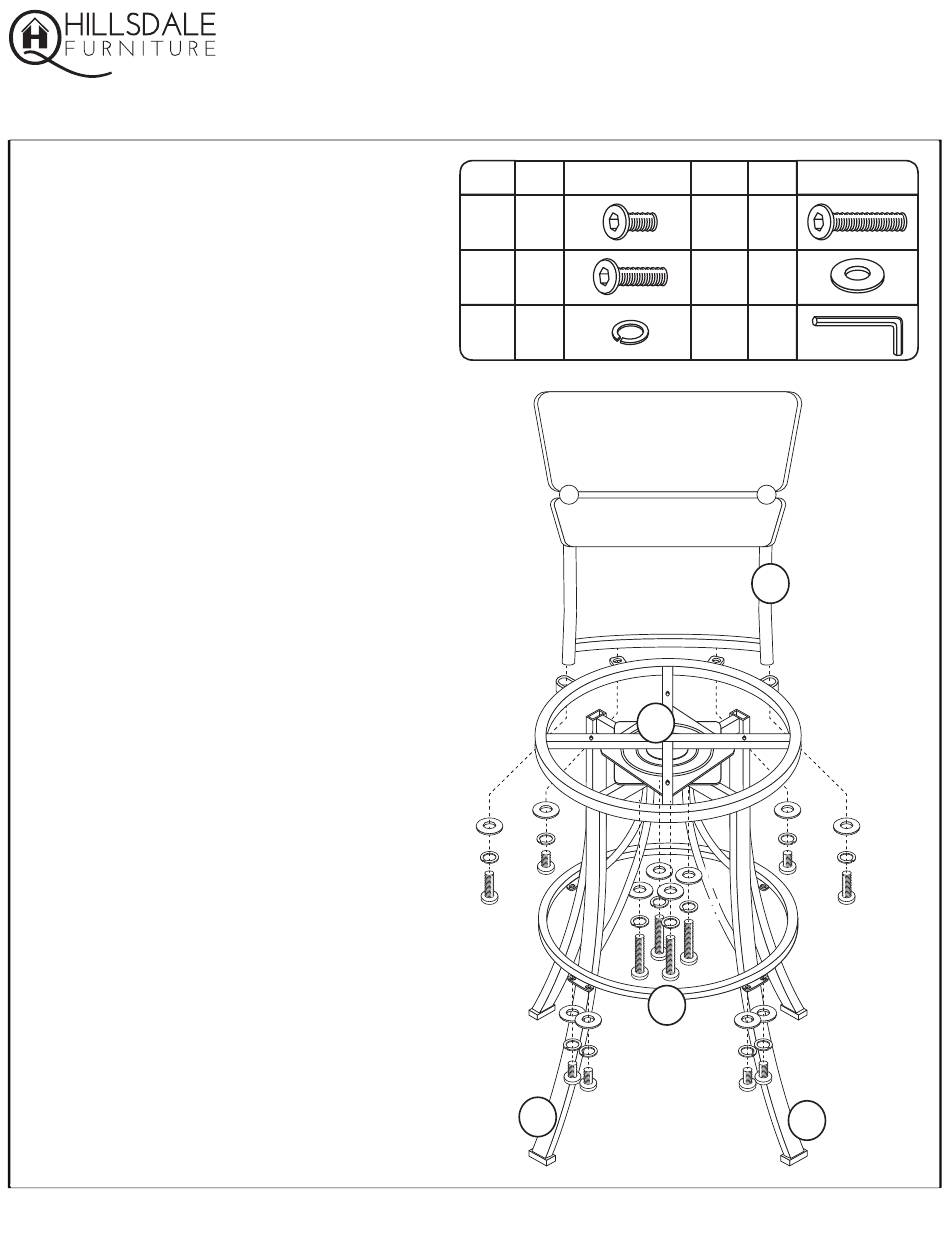

STEP 1

Begin assembly by attaching the Legs
(I) to the Support Ring (J) with 2 Allen
Bolts (A), 2 Spring Washers (E) and 2
Flat Washers (D) per leg.

STEP 2

Next attach the Stool Leg Panels (I) to
the Seat Base (H) by using 4 Allen Bolts
(B), 4 Spring Washers (E) and 4 Flat
Washers (D) to secure the tops of the
panels to the swivel plates in the base.

STEP 3

Next attach the Stool Back (G) to the
Seat Base (H) with 2 Allen Bolts (A), 2
Spring Washers (E) and 2 Flat Washers
(D) from the inside and 2 Allen Bolts (C),
2 Spring Washers (E) and 2 Flat
Washers (D) from the outside. Tighten
all bolts with Allen Wrench (F) provided.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.

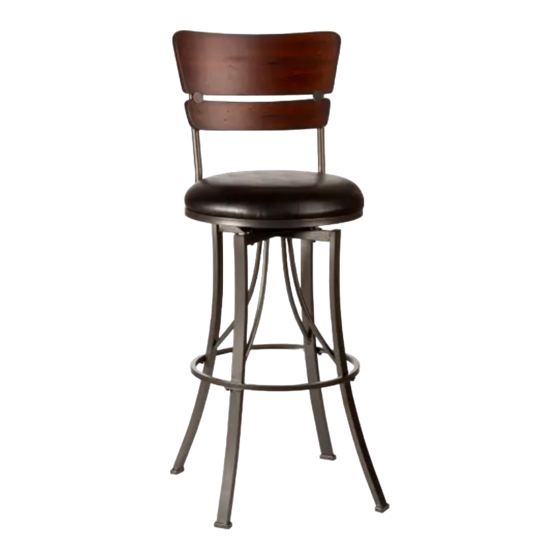

SANTA MONICA WOOD BACK SWIVEL METAL STOOL
Model #SNTACCSC Counter Stool
Model #SNTACBSC Bar Stool
PART QTY HARDWARE
A 10
C 2
E 16
D D
D D
E
E
A A
C C
D D
E
A A
I
Date: 02-06-2015
