Hillsdale Furniture Gannon 2078-550 Assembly Instructions

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all components are
in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required. The product of Hillsdale Furniture,
LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
CODE QTY
1 26 Wood Screws
2 8 1/4" x 2" Long Allen Bolts
3 8 Flat Washers
4 8 Spring Washers
5 1 Allen Wrench
6 3 1/4" x 1-3/8" Short Allen Bolts
3
4
2

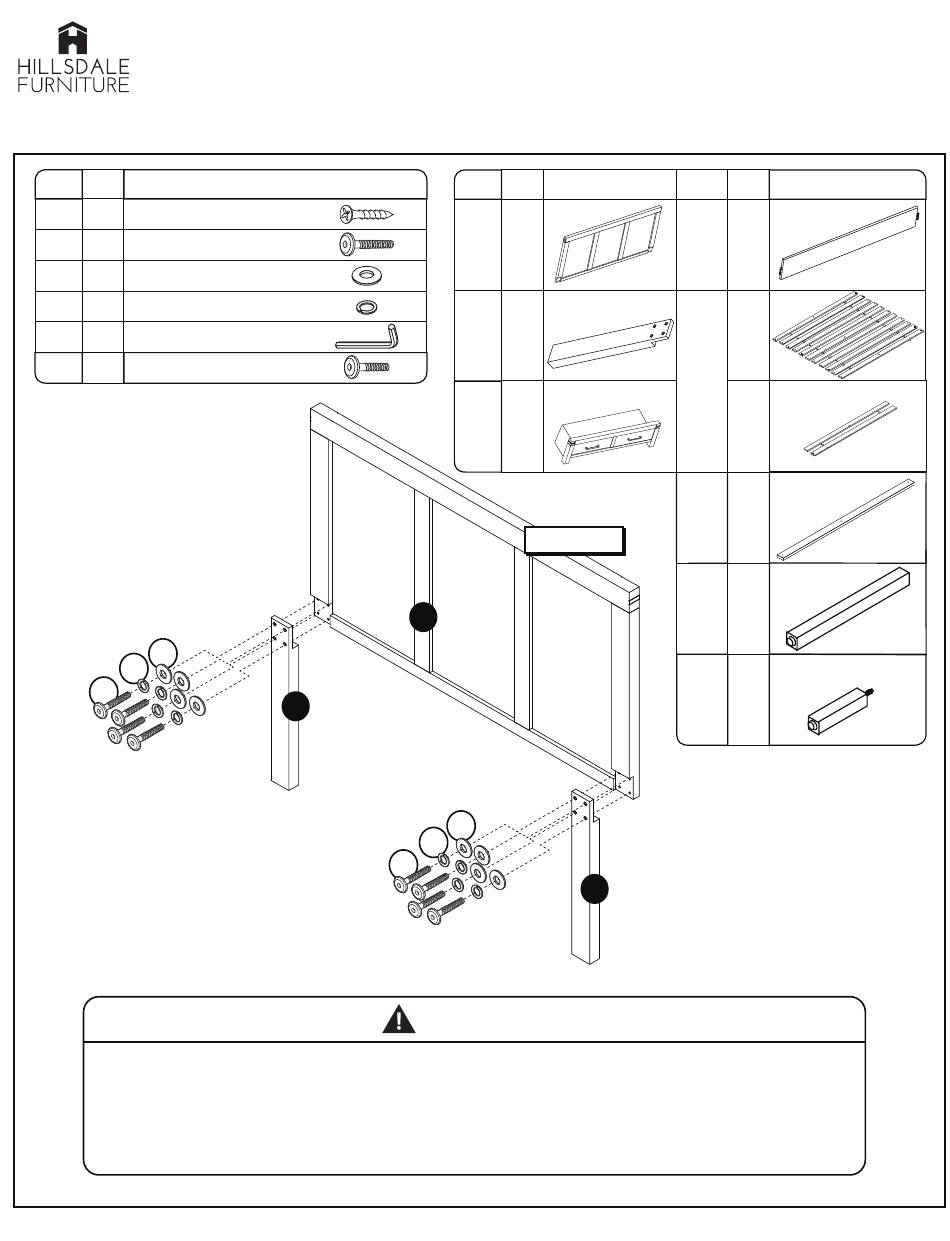

STEP 1 - Figure 1
Begin assembly by attaching Headboard (A) to
Headboard Legs (Left & Right) (B) with 4
Allen Bolts (2), 4 Spring Washers (4) and 4
Flat Washers (3) per leg. Tighten bolts with
Allen Wrench (5) provided.
• Do not let any sharp objects touch or rub the surface of the product.
• When assembling, do not let children play around the working area.
• Please confirm all parts are correct before starting the assembly process.
• Do not tighten all bolts and screws completely until the entire unit has been assembled and set up.
• Be careful if using power tools as they can over tighten screws and strip threads.
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing, as they may
cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.
Gannon Adult Bed
Model #2078-550 QK- Side Rail
Queen - Model #2078-570 - Headboard • Model #2078-580 - Footboard w/Drawer
King- Model #2078-670 - Headboard • Model #2078-680 - Footboard w/Drawer
HARDWARE
Right
B
2
CODE QTY COMPONENTS
A 1 Headboard
Headboard Legs
B 2
(Left & Right)
1
Footboard with Drawers
C
FIGURE 1
A
3
4
B
WARNING
CODE QTY
Side Rails
D 2
Set of Slats
1
E
Set of Slats
1
F 1
Center Rail
Support Legs
3
G
Short Support Legs
H
3
Left
Date: 11-28-2016
Page 1 of 3
HDFBP
COMPONENTS
