Hillsdale Furniture BAYBERRY SWIVEL STOOL 4783-826 Assembly Manual

HILLSDALE
FURNITURE, LLC.
Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure
that all components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult
assembly is required. Online Parts Request: parts.request@hillsdalefurniture.com - Customer Service Phone Number: 502-562-0000

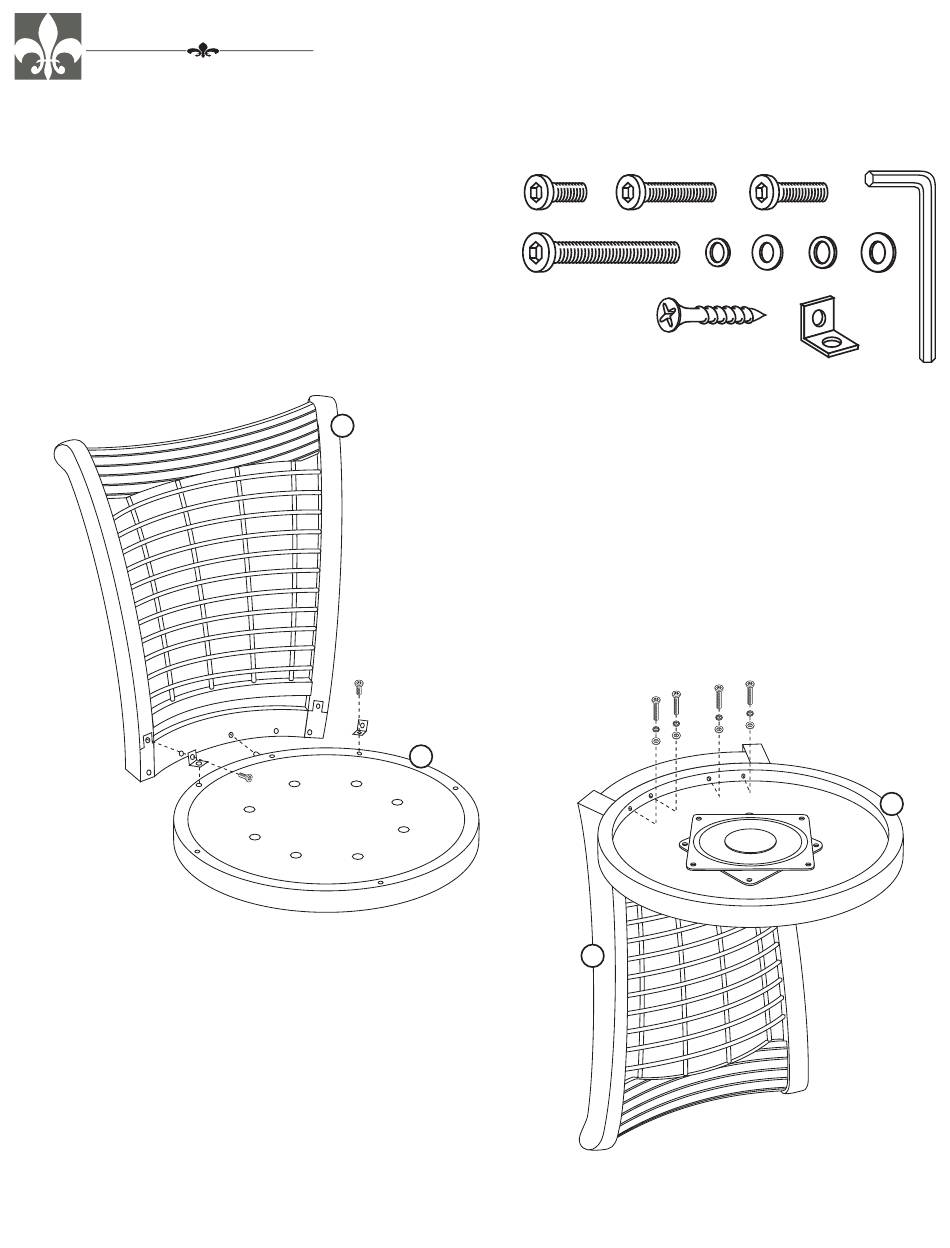

HARDWARE LIST
A (4) Allen Bolts 1/4” x 1/2”
B (4) Allen Bolts 1/4” x 1-1/4”
C (4) Allen Bolts 5/16” x 2-3/8”
D (4) Allen Bolts 1/4” x 1-1/4”
E (8) Spring Washers 1/4”
F (8) Flat Washers 1/4”
G (4) Spring Washers 5/16”
H (4) Flat Washers 5/16”
J (4) Wood Screws
L (2) “L” Brackets
M (1) Allen Wrench
L
STEP 2
Finish securing the Stool Back (N) to the Seat Base
(P) by inserting 4 Allen Bolts (C), 4 Spring Washers
(G) & 4 Flat Washers (H) into the inner open holes
of the Seat Base. Tighten all bolts using the Allen
Wrench (M) that has been provided. See next page
for more assembly instructions.

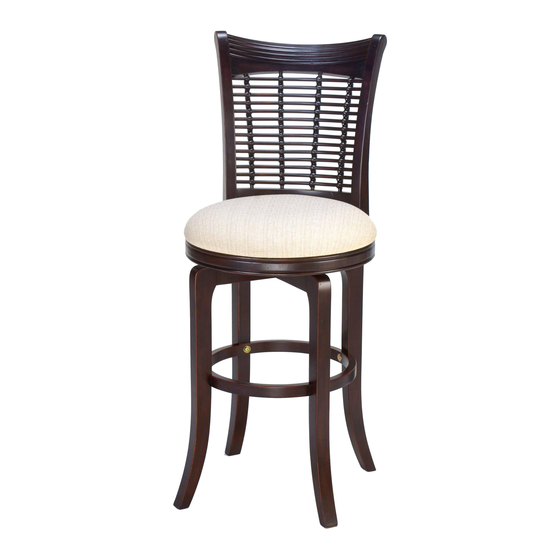

BAYBERRY SWIVEL STOOLS
Model #4783/4766-826 Swivel Counter Stools
Model #4783/4766-830 Swivel Bar Stools
PARTS LIST
N (1) Stool Back
P (1) Seat Base
Q (1) Seat Cushion
R (2) Leg Panels
S (1) Support Ring
N
A
L
A
A
C
STEP 1
Begin the assembly by attaching the Seat Base
(P) to the Stool Back (N) by aligning the wood
dowel with the middle open hole and secure in
place. Once in place, secure using the “L”
Brackets (L) on each arm side and fasten with 2
Allen Bolts (A) per each Bracket. Tighten all bolts.
P
N
B D
E F G
J L
C
C
C
C
G
G
G
G
H
H
H
H
The drawing above is a generic drawing
of the original item you purchased. All
a s s e m b l y r e m a i n s t h e s a m e .
Date: 03-19-08
Page 1 of 2
M
H
P
