Hillsdale Furniture STACI 1525-010 Manual

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000

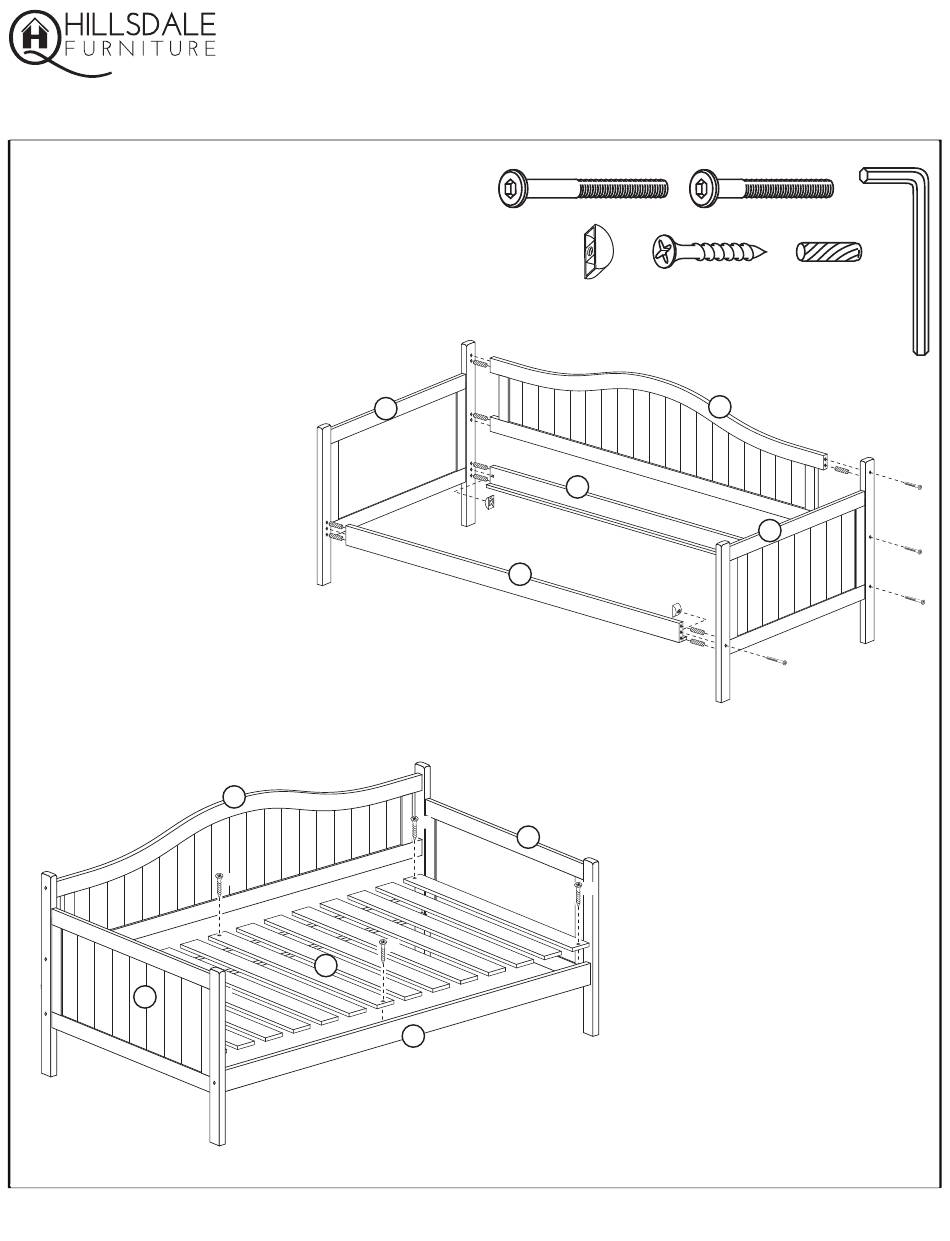

Hardware List
A (4) Allen Bolts 1/4" x 3"
B
(4) Allen Bolts 1/4" x 2
C (4) Lock Washers
D (6) Wood Screws 35mm
E (12) Wood Pins 50mm
F (1) Allen Wrench 4mm
Step 1
Begin assembly by attaching
ONE Side Panel (H) to the Back
Panel (G) by inserting each
Wood Dowel (E) and aligning
with the open holes to set in
place. Once in place, secure
from the outside using 2 Allen
Bolts (B) per each side. Place
Lock Washer (C) into the whole
at the side with the curved side
in. Tighten all bolts using the
Allen Wrench (F) that has been
provided.
Step 2
Next attach both Mattress Rails
(J) to the SAME Side Panel (H)
using 2 Allen Bolts (A) from the
outside to secure in place.
Tighten all bolts.
C
H
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all hardware is securely tightened.
Model #1525-010 / 1526-010 / 1572-010 -Carton A
Model #1525-020 / 1526-020 / 1572-020 -Carton B
Parts List
G (1) Back Panel
H
3 / " (2) Side Panels
8
1 / " J (2) Mattress Rails
4
K (1) Mattress Slats
E
E
G
D
K
D

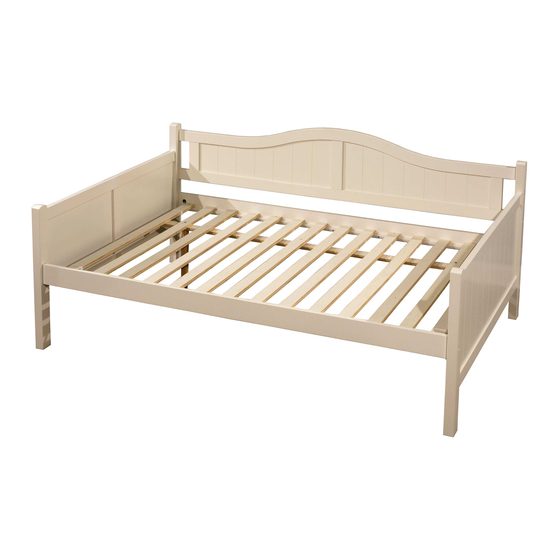

STACI DAYBED
A
E
H
E
E
E
C
J
D
H
D
J
B
C D
G
J
C
E
E
Step 3
Repeat Steps 1 and 2 to
assemble the REMAINING Side
Panel (H) to the components
D
illustrated above.
Step 4
Attach the Mattress Slats (K) to
the inside of each Mattress Rail
(J) by unrolling the slats and
setting in place. Once in place
secure to the support bar with 6
Wood Screws (D) to secure in
place. See next page for
Trundle assembly instructions.
Date: 11-08-2013
Page 1 of 1
