Adjusting the Printhead Alignment

PF8d/PF8t Printers User's Guide
Chapter 3 — Troubleshooting and Maintaining the Printer
2 Press the cover open buttons on both sides of the case to open
the top cover. Lift the cover upwards and rearwards.
3 Using a straight-slot screwdriver, turn the screws clockwise to
increase printhead pressure or counterclockwise to decrease
printhead pressure.
Adjustment
screws
(2 places)

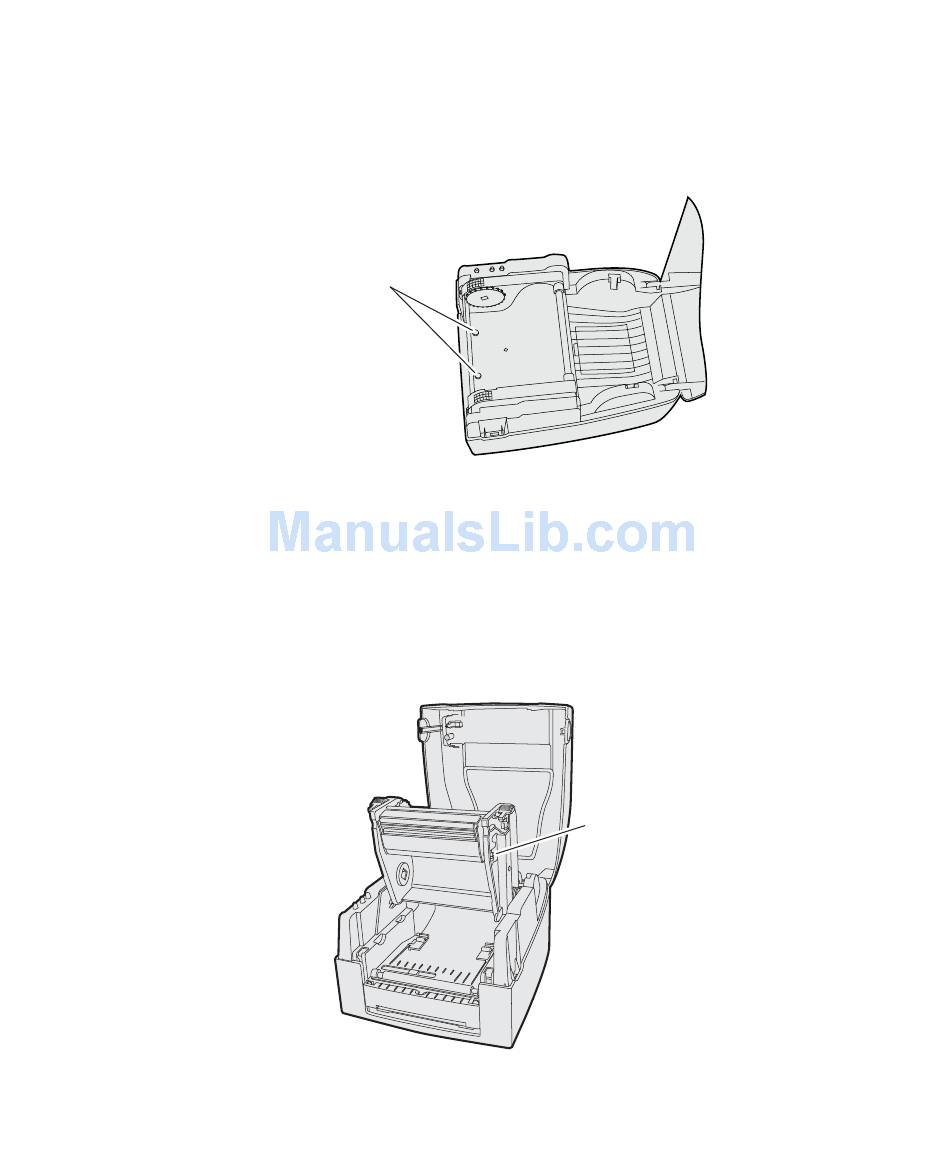

PF8t printhead adjustment screws
You can improve the print quality by adjusting the alignment
between the printhead and the platen roller.
• Turn the adjustment screw counterclockwise or clockwise to
adjust the contact between the printhead and platen roller.
PF
PF8t printhead alignment adjustment screw
Adjustment
screw
