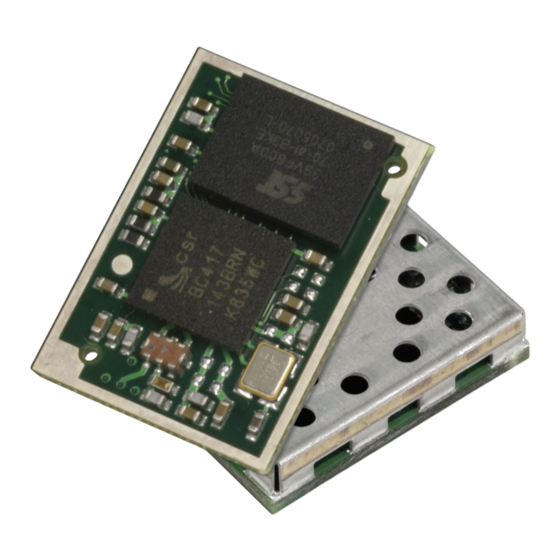

Laird BTM41 Series Quick Start Manual

BTM41
X
BTM410–411 Development Kit
Quick Start Guide
O
VERVIEW
This quick start guide for the Laird Technologies OEM BTM41x family Developer Kit (DVK) illustrates how to
read the radio's configuration and perform a data throughput test between the two radios. For more detailed
information on these steps, refer to the DVK User's Manual or the radio User's Manual.
W '
HAT S IN THE BOX
BTM41x Development Board

USB Cable

Whip Antenna (only for BTM410)

Bluetooth® USB dongle

Software CD

EZURiO Terminal
-
FTDI USB to RS232 driver
-
BTM41x datasheet
-
Laird Technologies Bluetooth® line card
-
Updated datasheets and firmware are available at www.lairdtech.com/wireless.
Additionally, you need a Windows PC running Windows XP SP2 or later.
B USB
LUETOOTH DONGLE INSTALLATION
1. Uninstall all third-party Bluetooth stacks, drivers and devices from your PC.
2. Plug the Laird Technologies USB dongle into the PC. Windows XP SP2 detects the device and
opens an installation window.
3. Follow the on-screen instructions to install the standard Microsoft Bluetooth driver.
4. Open the Windows Device Manager.
5. Verify that the Microsoft Bluetooth Enumerator and TDK Bluetooth USB Adaptor are installed.
Figure 1: Microsoft Bluetooth Enumerator and TDK Bluetooth USB Adaptor are present
Note: You must have at least Windows XP SP2 to install the Microsoft Bluetooth 2.0 driver for the Laird
Technologies USB Dongle. Windows Vista SP1 and Windows 7 support Bluetooth 2.1. Microsoft
