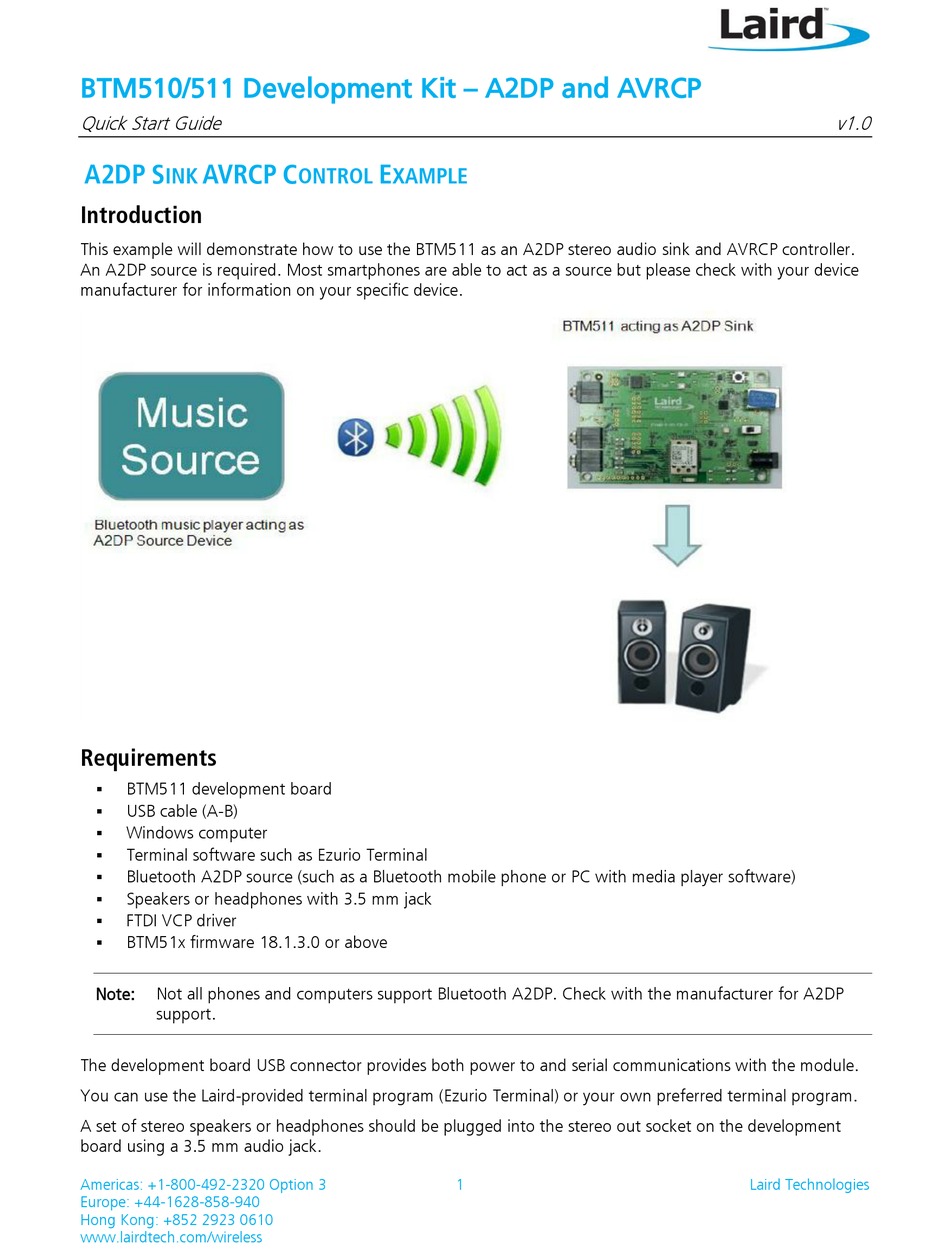

BTM510/511 Development Kit – A2DP and AVRCP
Quick Start Guide
A2DP S AVRCP C
INK

Introduction

This example will demonstrate how to use the BTM511 as an A2DP stereo audio sink and AVRCP controller.
An A2DP source is required. Most smartphones are able to act as a source but please check with your device
manufacturer for information on your specific device.

Requirements


BTM511 development board

USB cable (A-B)

Windows computer
 Terminal software such as Ezurio Terminal
 Bluetooth A2DP source (such as a Bluetooth mobile phone or PC with media player software)
 Speakers or headphones with 3.5 mm jack
 FTDI VCP driver
 BTM51x firmware 18.1.3.0 or above
Note: Not all phones and computers support Bluetooth A2DP. Check with the manufacturer for A2DP
support.
The development board USB connector provides both power to and serial communications with the module.
You can use the Laird-provided terminal program (Ezurio Terminal) or your own preferred terminal program.
A set of stereo speakers or headphones should be plugged into the stereo out socket on the development
board using a 3.5 mm audio jack.
