EasyCoder 401/501/601 – Installation Instructions
LABEL-TAKEN SENSOR KIT, cont'd.
Step-by-Step Installation
Instructions, cont'd.
Fit LTS here
Cable held by bracket

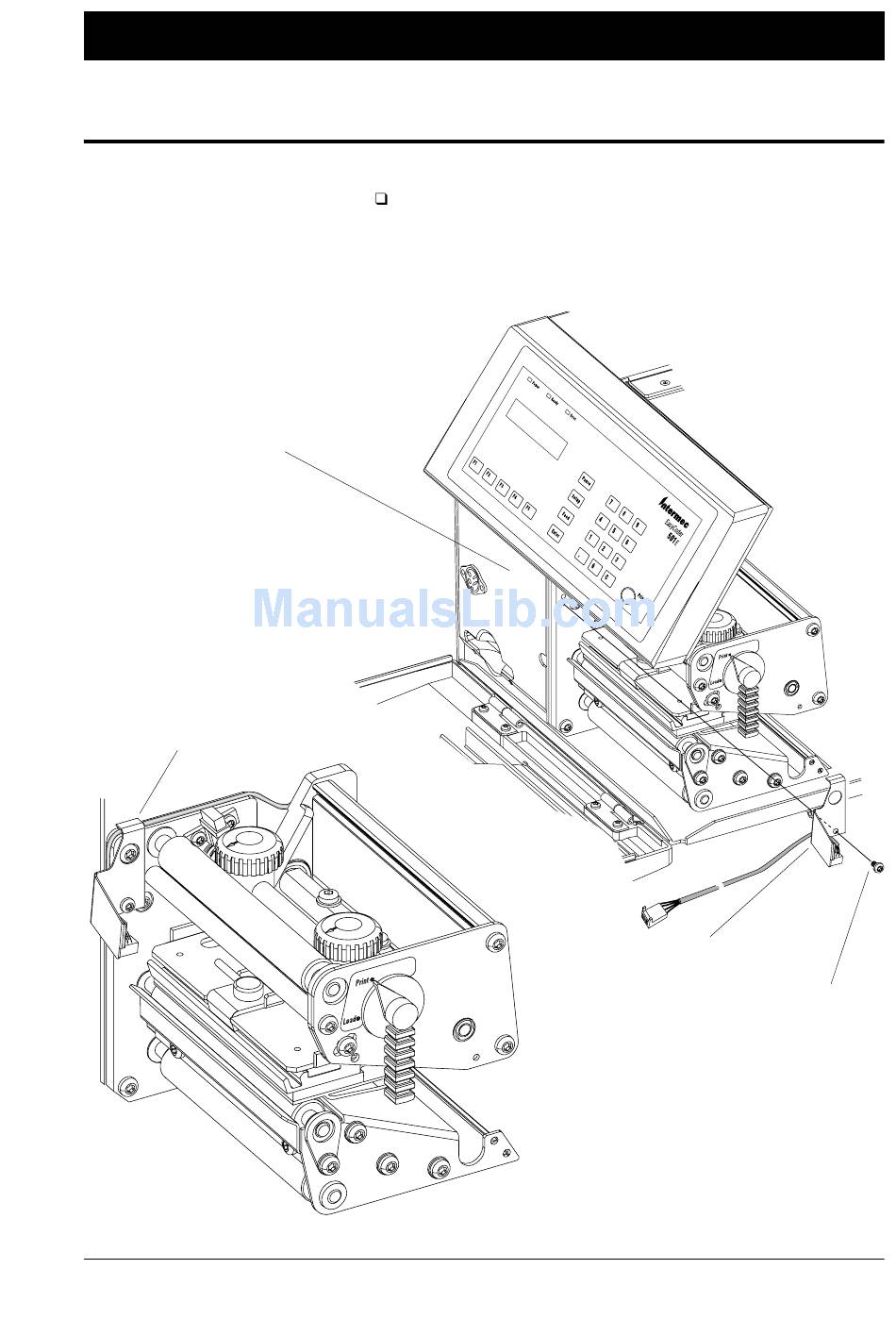

Using the screw included in the kit, fit the sensor/bracket
assembly to the inner wall of the printer unit as shown by the two
illustrations below. Fit the cable underneath the top part of the
bracket, as illustrated in the second picture.
LTS assy.
Screw
Continued!
