Dancing Wings Hobby X11 Instruction Manual

Fokker-DRI
(X11) INSTRUCTION MANUAL
Wingspan:400mm
Length:330mm
用刀从板上取下每个部件，然后进行组装，建议用502胶水定型，用白
乳胶加固。
Pls take down the parts from the board by knife,and assemble them
as per the procedures as below,we suggest you to shape with 502
glue,and firm with white latex.

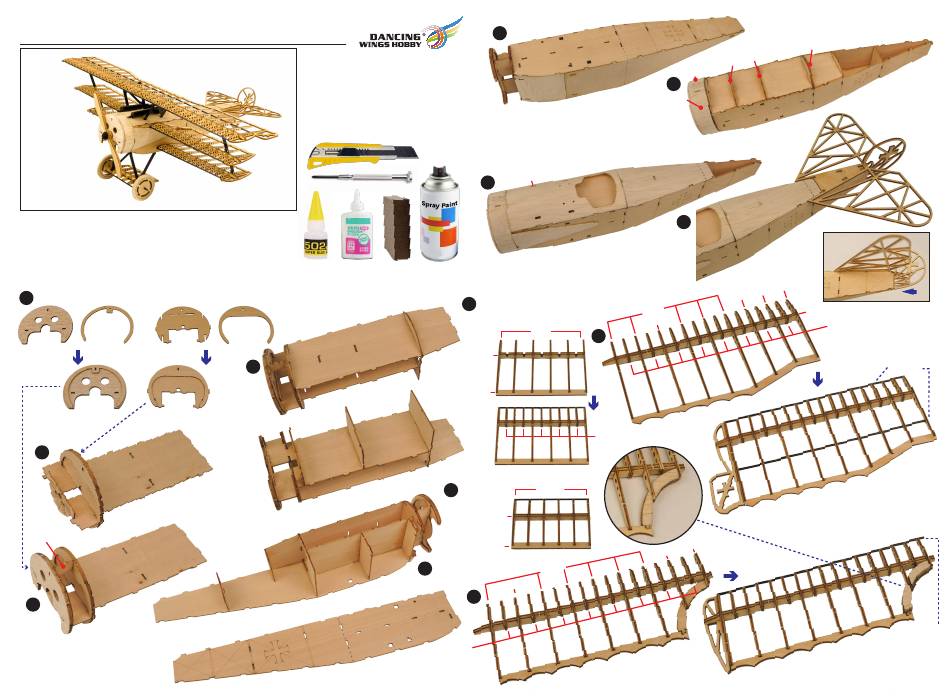

1.机身组装 Assemble the fuselage
1
F-2 F-3 F-5
2
F-7
F-2-1
F-5-1
3
注意：F-1安装时，雕花的一面朝外。
Note: Put the carved board
outward when assemble the F-1.
材质 Material:
1. 椴木 Basswood
2. 轻木 Balsawood
3. 桐木 Paulownia
4. 玻纤 Fiberglass and others
工具 Tools Needed
F-4
F-8
4
F-9
F-6
F-13
F-14
F-1
F-1
6
F-16
注意：F17 F19 F20弯曲粘贴轻木蒙板时，用少量
水稍加湿润后再进行弯曲粘贴，防止轻木板折断。
Note: Moisturize the balsawood cover board
F17,F19 and F20,then bend,cover and paste,in
case of breaking.
F-18
8
F-19
F-18
2.机翼组装 Assemble the wing
上机翼 upper wing
10
上机翼中 upper wing (middle)
W-1
W-8x2
F-10
W-9
碳杆
Carbon rod
74mm
起落架机翼
wing for the landing gear
碳杆
11 W-23
Carbon rod
59mm
W-24x2
W-25
W-12
5
W-13
13
W-26
F-11
F-15 F-17-1
7
F-17
F-20
9
W-1
W-2
W-3
W-4
12
W-26
W-7
注意：W-14-1粘贴后打磨平滑
Note: Polish the W-14-1 after pasting.
W-10
W-11
W-15x2
W-14
W-17
中机翼
W-16
middle wing
F-12
F-23
F-24
W-5x2
W-26
碳杆
Carbon rod
123mm
W-6
W-14-1
碳杆
Carbon rod
130mm
