PARTS INCLUDED
A [1]
HEADBOARD
B [2]
SIDE RAILS
C [1]
FOOTBOARD
D [13] BED SLATS
ASSEMBLY INSTRUCTIONS:
1. Place the headboard (A) upright in the position you wish the bed to be in when fully assembled.
2. Secure the threaded rod (1) to the fixed nut in the headboard (A), footboard (C) simply turning it manually clockwise direction.
3. Raise the side rail (B) up and place the rod (1) to align with the bore holes on the end of the side rail (B). Put the side rail (B) up against the headboard
(A) so the threaded rods (1) go through the bore holes. Insert curved washer (2), lock washer (3) and place hex nuts (4) on threaded rod (1) then
tighten the hex nuts (4) with wrench (5), as illustrated in FIGURE 1.
4. Repeat the above procedure with the other side rail (B) to attach it to the headboard (A), and then repeat to connect side rails (B) to the footboard (C).
A
Fig. 1
B
NO.
1
2
3
4
5
6
C
ITEM
DESCRIPTION
Threaded Rod
Curved Washer
Lock Washer
Hex Nut
Wrench
Round Head
Screw
1
2
FIGURE 1
5
QTY.
8 pcs.
8 pcs.
8 pcs.
8 pcs.
1 pc.
26 pcs.
3
4
Page 1 of 2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RH Baby&child ALEXANDRA TUFTED TWIN BED
Summary of Contents for RH Baby&child ALEXANDRA TUFTED TWIN BED

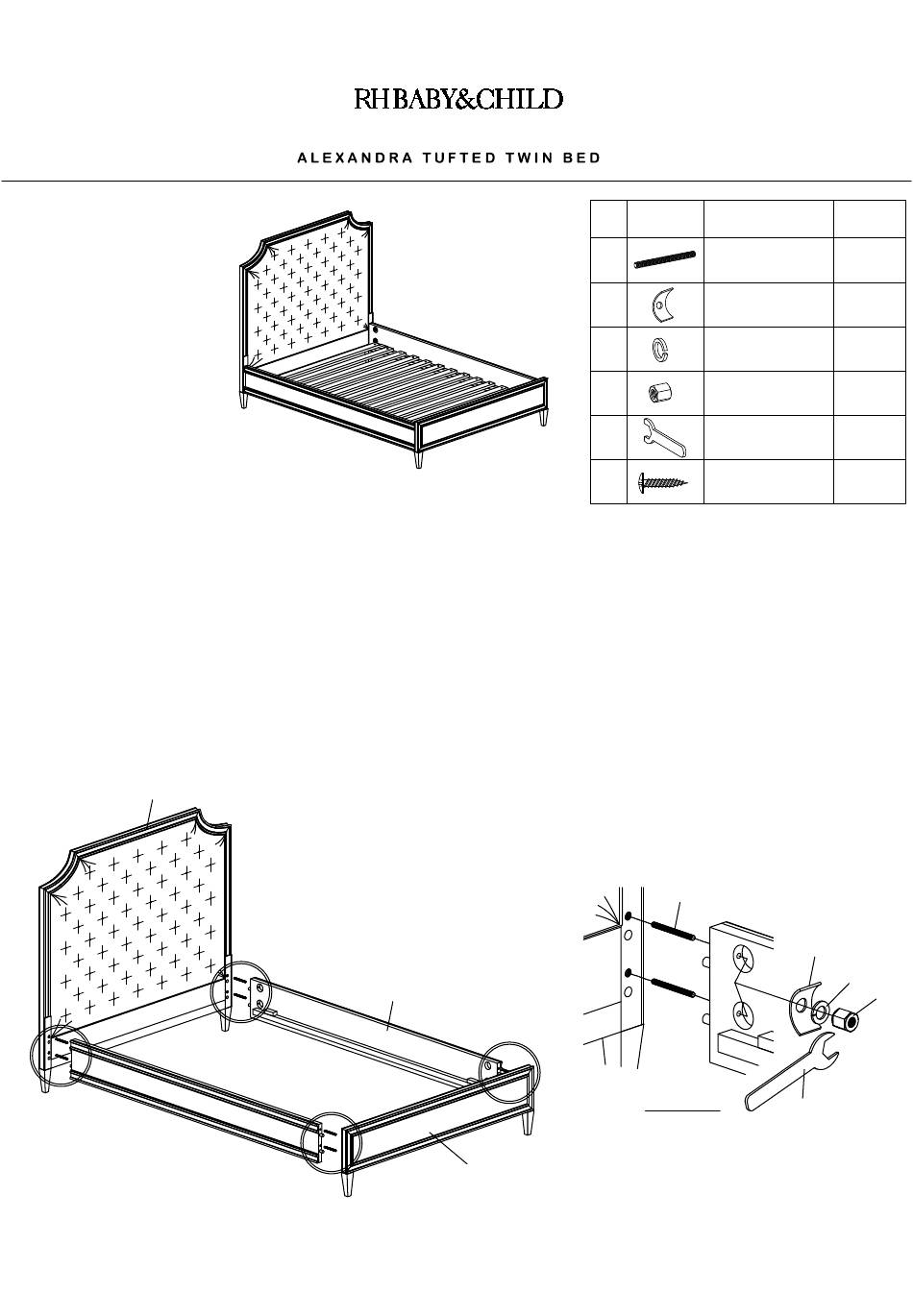

- Page 1 PARTS INCLUDED ITEM DESCRIPTION QTY. A [1] HEADBOARD Threaded Rod 8 pcs. B [2] SIDE RAILS C [1] FOOTBOARD Curved Washer 8 pcs. D [13] BED SLATS 8 pcs. Lock Washer Hex Nut 8 pcs. Wrench 1 pc. Round Head 26 pcs.
- Page 2 On inside surface of both side rails (B) was installed the support rail. Set individual bed slats (D) on both sides of the side rails (B). Use screw (5) provided to fixed it. See FIGURE 2. Assembly is complete. Fig. 2 FIGURE 2 CARE INSTRUCTIONS Dust often using a clean, soft, dry and lint-free cloth.
