UBI Shell 4.0 Standard – Startup Manual
SETUP MODE, cont'd.

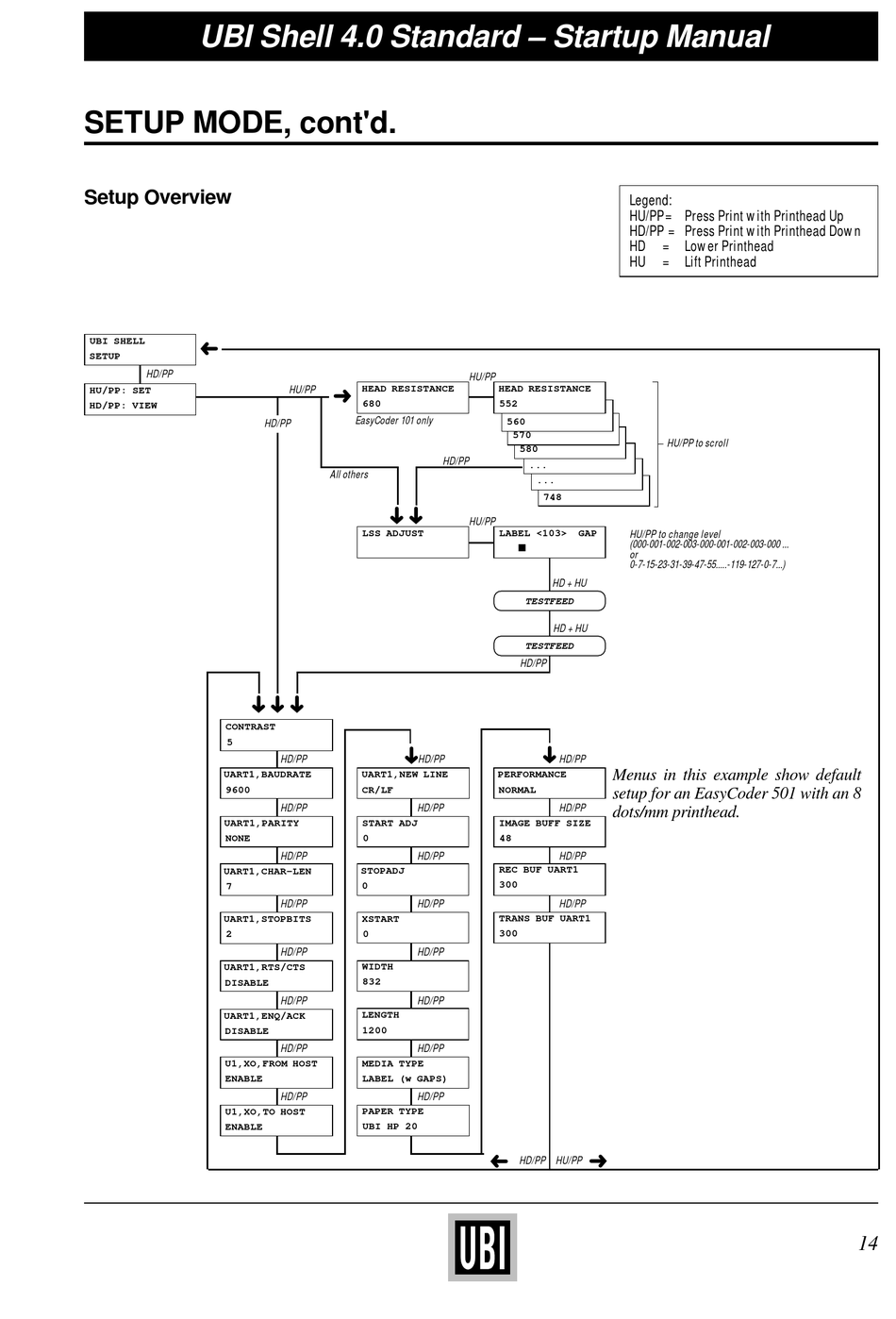

Setup Overview

UBI SHELL
SETUP
HD/PP
HU/PP: SET
HD/PP: VIEW
CONTRAST
5
UART1,BAUDRATE
9600
UART1,PARITY
NONE
UART1,CHAR-LEN
7
UART1,STOPBITS
2
UART1,RTS/CTS
DISABLE
UART1,ENQ/ACK
DISABLE
U1,XO,FROM HOST
ENABLE
U1,XO,TO HOST
ENABLE
HEAD RESISTANCE
HU/PP
680
EasyCoder 101 only
HD/PP
All others
LSS ADJUST
HD/PP HD/PP
UART1,NEW LINE
CR/LF
HD/PP HD/PP
START ADJ
0
HD/PP HD/PP
STOPADJ
0
HD/PP HD/PP
XSTART
0
HD/PP HD/PP
WIDTH
832
HD/PP HD/PP
LENGTH
1200
HD/PP HD/PP
MEDIA TYPE
LABEL (w GAPS)
HD/PP HD/PP
PAPER TYPE
UBI HP 20
HU/PP
HEAD RESISTANCE
552
HEAD RESISTANCE
HEAD RESISTANCE
560
HEAD RESISTANCE
570
580
HEAD RESISTANCE
HD/PP
... HEAD RESISTANCE
...
HEAD RESISTANCE
748
HU/PP
LABEL <103> GAP
HD + HU
TESTFEED
HD + HU
TESTFEED
HD/PP
HD/PP
PERFORMANCE
NORMAL
HD/PP
IMAGE BUFF SIZE
48
HD/PP
REC BUF UART1
300
HD/PP
TRANS BUF UART1
300
HD/PP HU/PP
Legend:
HU/PP= Press Print with Printhead Up
HD/PP = Press Print with Printhead Down
HD = Lower Printhead
HU = Lift Printhead
HU/PP to scroll
HU/PP to change level
(000-001-002-003-000-001-002-003-000 ...
or
0-7-15-23-31-39-47-55.....-119-127-0-7...)
Menus in this example show default
setup for an EasyCoder 501 with an 8
dots/mm printhead.
